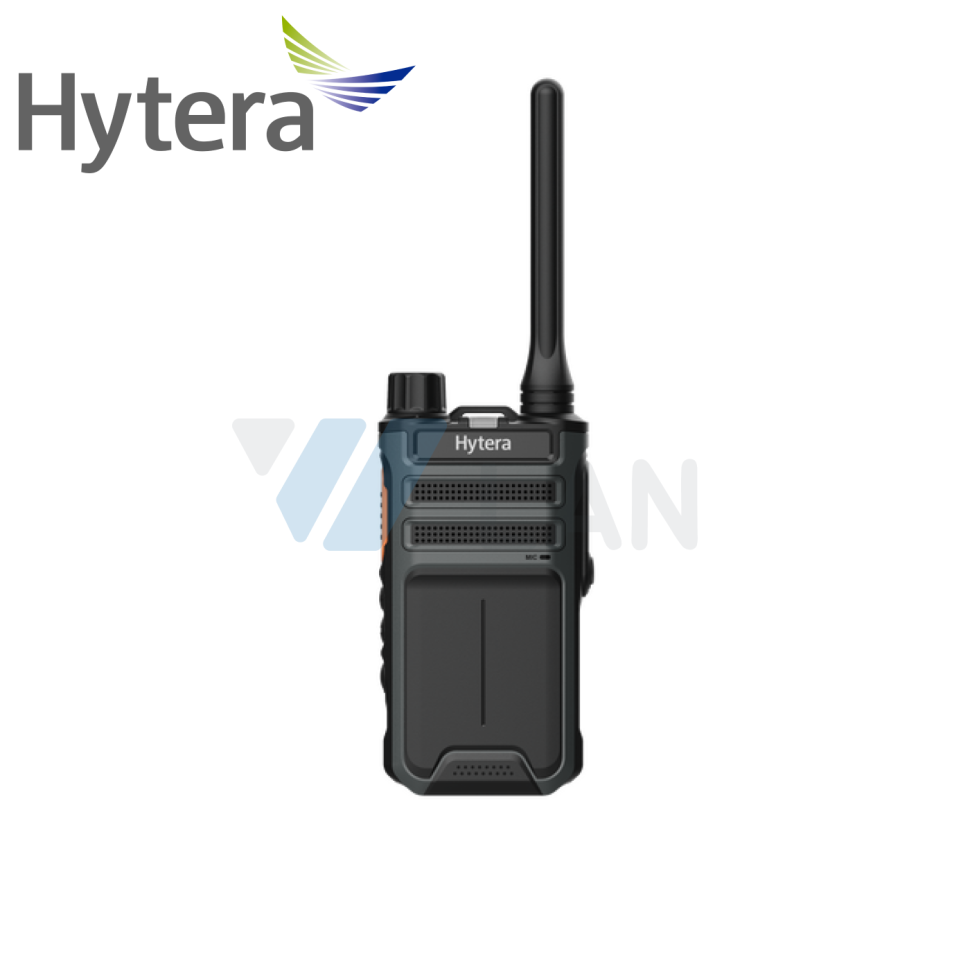

AP515 VHF

Analog UHF 4W 16CH

О товаре

General
Frequency Range 136-174 MHz
Channels & zones Channel capacity: 32 Zone capacity: 2 Channels per zone: 16
Channel Spacing 12.5kHz / 20kHz / 25kHz
Operating Voltage 3.7 V (rated)
Battery 4000 mAh 3.7V
Battery Life (5/5/90 Duty Cycle, High TX Power) 18 h
Frequency Stability ±0.5 ppm
Antenna Impedance 50 Ω
Dimensions (H x W x D) (mm) 105 x 55 x 29.5 mm
Weight (with antenna & battery) 200g ±5 g
Bluetooth (Optional) BT 5.0 BLE+EDR
Receiver
Sensitivity 0.18 μV (12 dB SINAD)
Adjacent Channel Selectivity TIA-603: 60 dB @12.5kHz; 70 dB @20/25kHz ETSI: 60 dB @12.5kHz; 70 dB @20/25kHz
Intermodulation TIA-603: 70 dB @12.5/20/25kHz ETSI: 65 dB @12.5/20/25kHz
Hum and Noise 40 dB @12.5kHz; 43 dB @20kHz; 45 dB @25kHz
Rated Audio Power Output 0.5 W
Rated Audio Distortion ≤3 %
Audio Response +1~-3 dB
Conducted Spurious Emission < -57 dBm
Transmitter
RF Power Output VHF: 4-5W / 1W UHF: 3-4W / 1W
FM Modulation 11K0F3E @12.5 kHz 14K0F3E @20 kHz 16K0F3E @25 kHz
Conducted/Radiated Emission -36 dBm＜1GHz; -30 dBm＞1GHz
Modulation Limiting ±2.5 kHz @12.5 kHz; ±4.0 kHz @20 kHz; ±5.0 kHz @25 kHz
FM Hum & Noise 40dB @12.5 kHz; 43dB @20 kHz; 45 dB @25 kHz
Adjacent Channel Power 60dB @12.5 kHz; 70dB @20/25 kHz
Environmental
Operating Temperature -20℃ to +60℃
Storage Temperature -40℃ to +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion IEC60529-IP54
Humidity MIL-STD-810 H
Shock and Vibration MIL-STD-810 H
