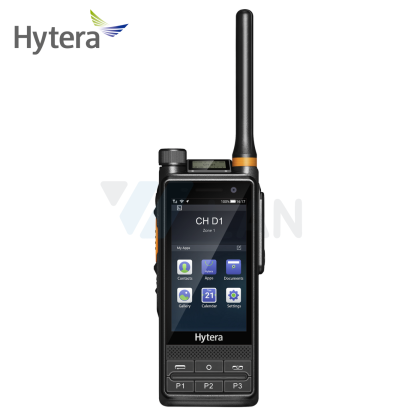

PDC680

Dual-mode Rugged Radio DMR/POC

О товаре

Wireless Data Communication
Narrow Band UHF:340~470 MHz;VHF:136-174MHz
LTE 3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41
CDMA CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0
WCDMA B1/B2/B4/B5/B8
GSM 850/900/1800/1900 MHz
WLAN 802.11 a/b/g/n/ac，2.4 GHz/5 GHz
NFC 13.56 MHz
Positioning GPS/BDS/GLONASS/Galileo/QZSS/A-GPS

General
Dimensions(H×W×D) mm 140 mm x 60 mm x 29.1 mm
Operating System Android 10.0
Peripheral Interface 13PIN Accessory/Charging Port
Display Top Screen:0.92” 128x88  Color: black & white; Main Screen: 3.6" 1280x720, Color depth: 24bit; Capacitive, Touch Screen, Gloves Proofed, Passive Stylus
Card Slots 2x Nano SIM card; 1x Micro SD card; 1x Encryption card for narrowband
Camera Front: 8MP; Rear: 13MP
Operating Voltage 7.7V(Rated)
Battery 2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional)

Transceiver
Channel Spacing 12.5 kHz/20 kHz/25 kHz
TX Power UHF: 1W/4W VHF: 1W/5W
Digital Vocoder Type AMBE+2™
