WR 1500
12 400 AMD

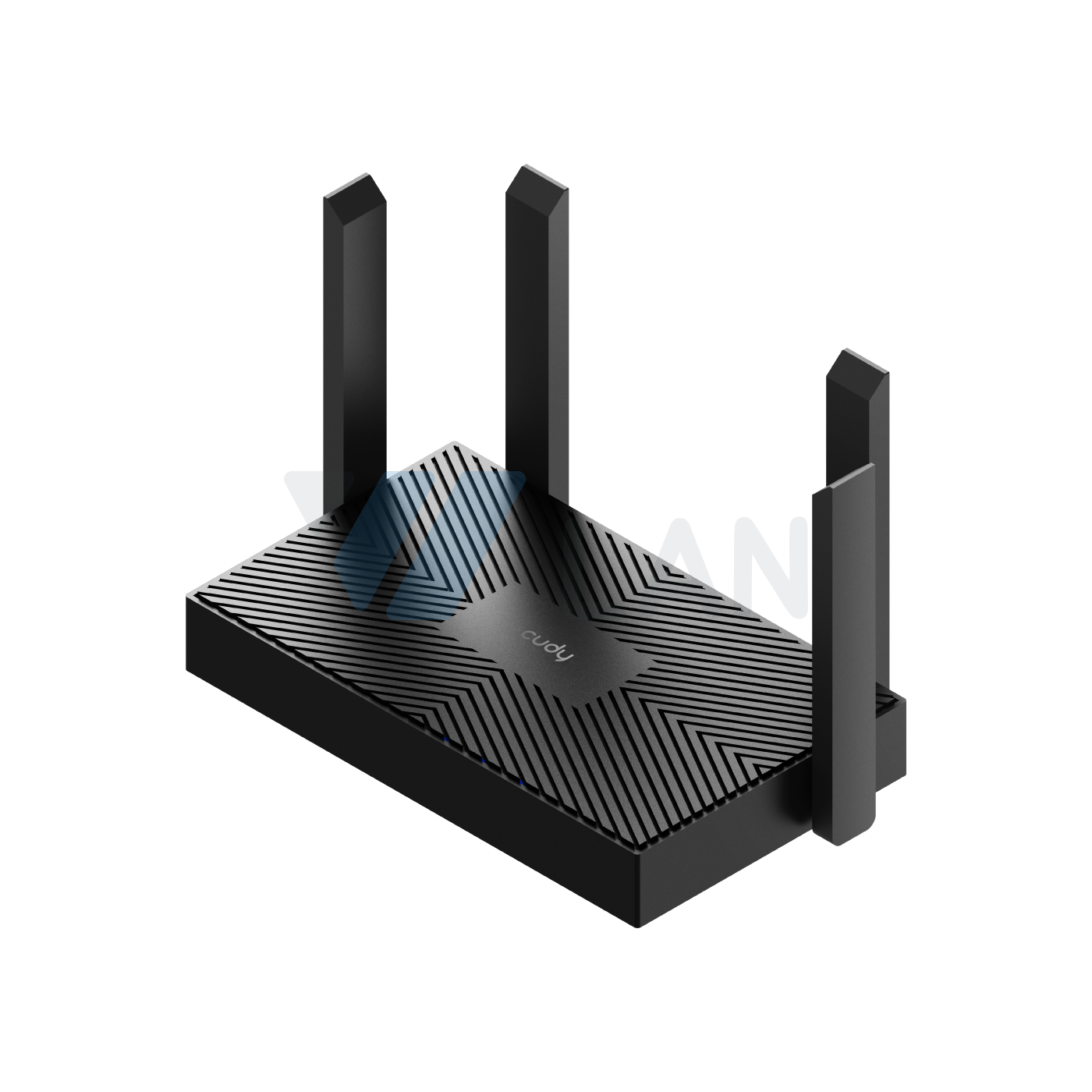

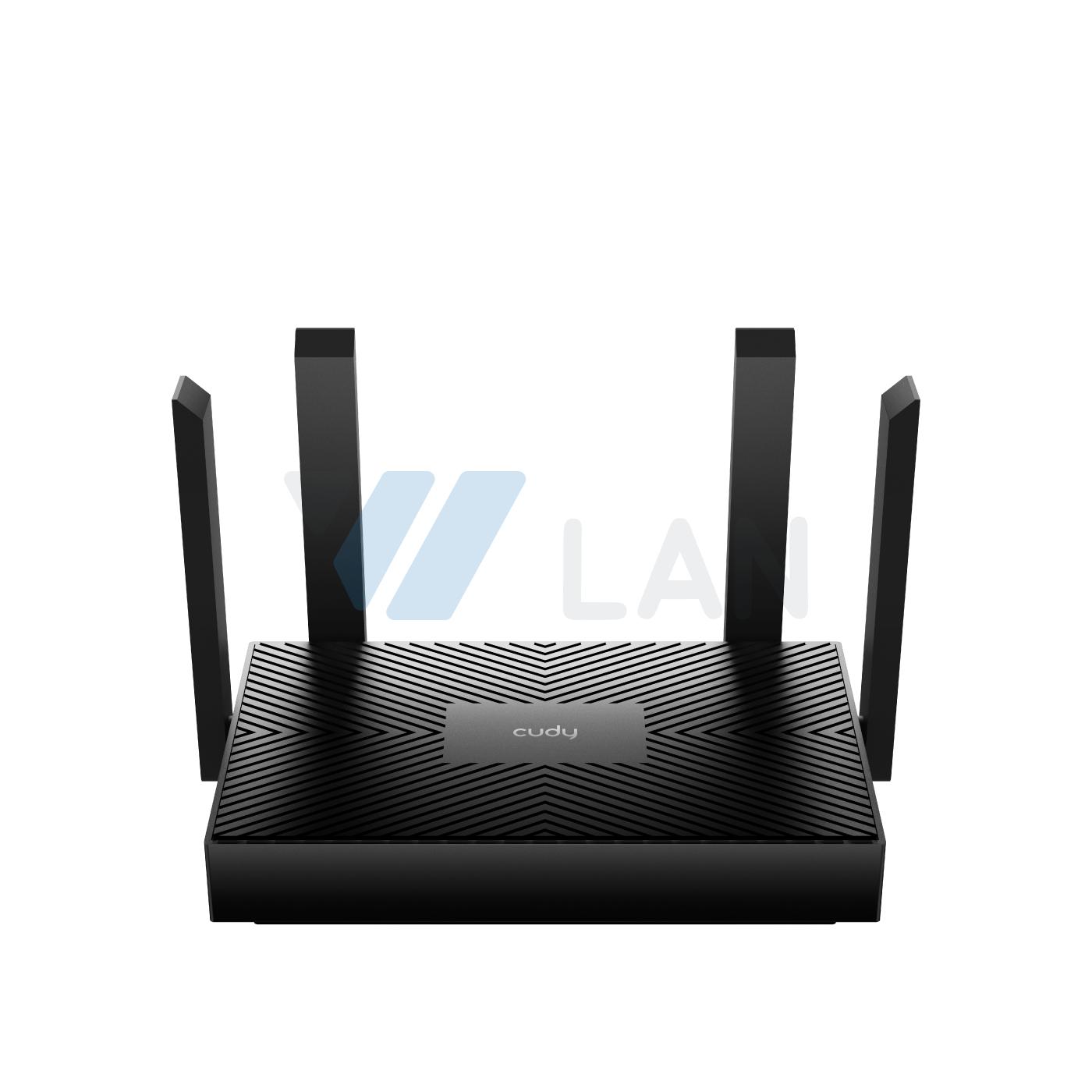

AX1500 Mesh Wi-Fi 6 Router
-
Model Version WR1500 1.0 CPU CPU Details 1 GHz CPU Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR DDR/RAM 128 MB (1 Gbit) DDR2 Wireless 5 GHz Wi-Fi Speed 1201 Mbps 2.4 GHz Wi-Fi Speed 300 Mbps 5 GHz Wi-Fi Streams 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO) Wi-Fi Antennas 4× Fixed FEM or PA/LNA - 5 GHz: 2× Internal
- 2.4 GHz: 2× Internal
Beamforming True Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.Wall Performance Two wooden walls with thickness < 10 cm (4”)

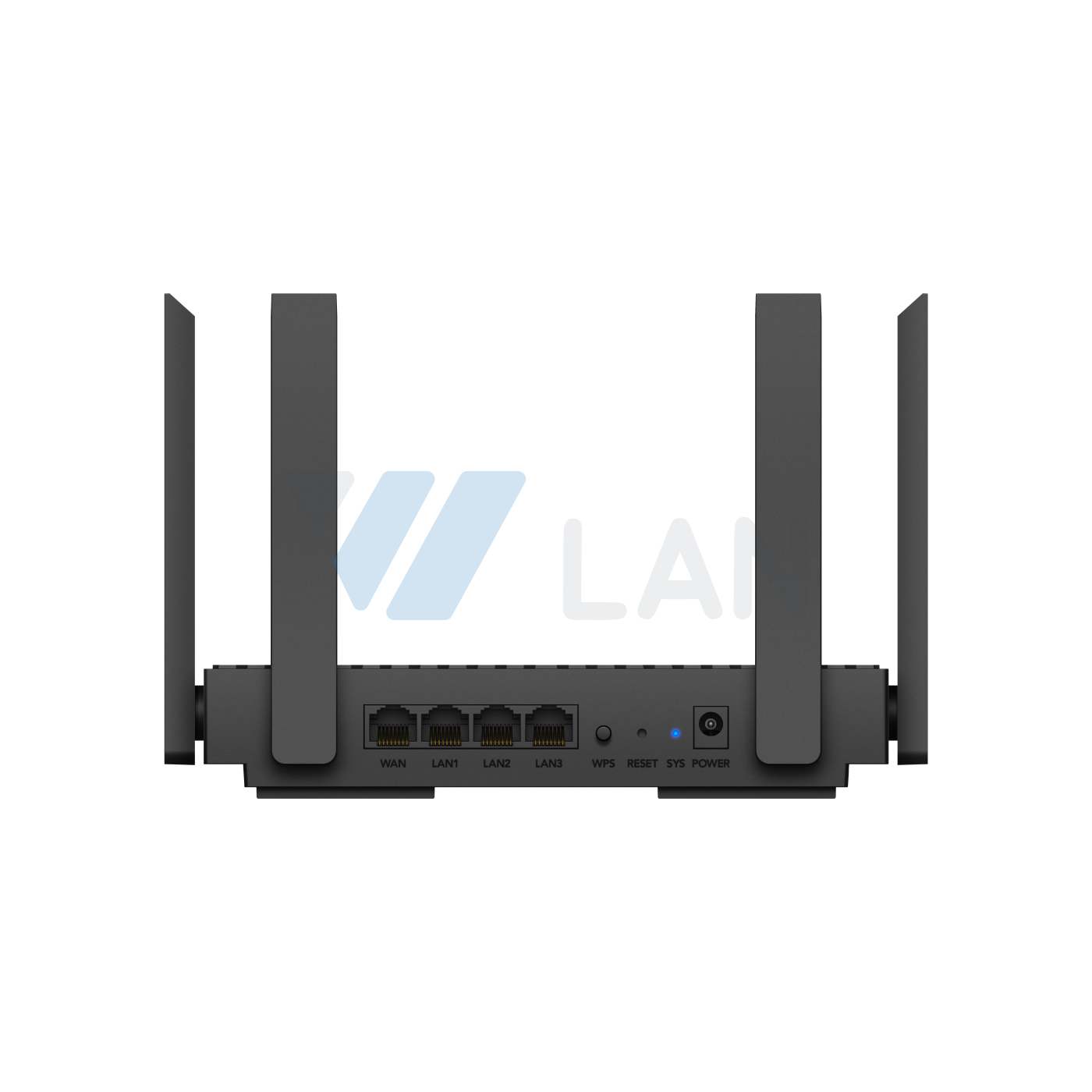

One concrete wall with thickness < 20 cm (7”)Interfaces Gigabit RJ45 Ports 4 Ethernet Notes 1× WAN port, the rest are LAN ports LED System Physical Buttons - WPS Button
- Reset Button
Power Input DC Jack Power Power Methods DC DC Input 12V 1A Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DCMax Power Consumption (W) 10W Reliability Environment - Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE Mechanical Installation - Desktop
- Wall-mount
Dimension 183.3×109×35 mm
7.22×4.29×1.38 inchesProduct Weight - EU: 220 g (7.76 oz.)
- ZH: 224.6 g (7.92 oz.)

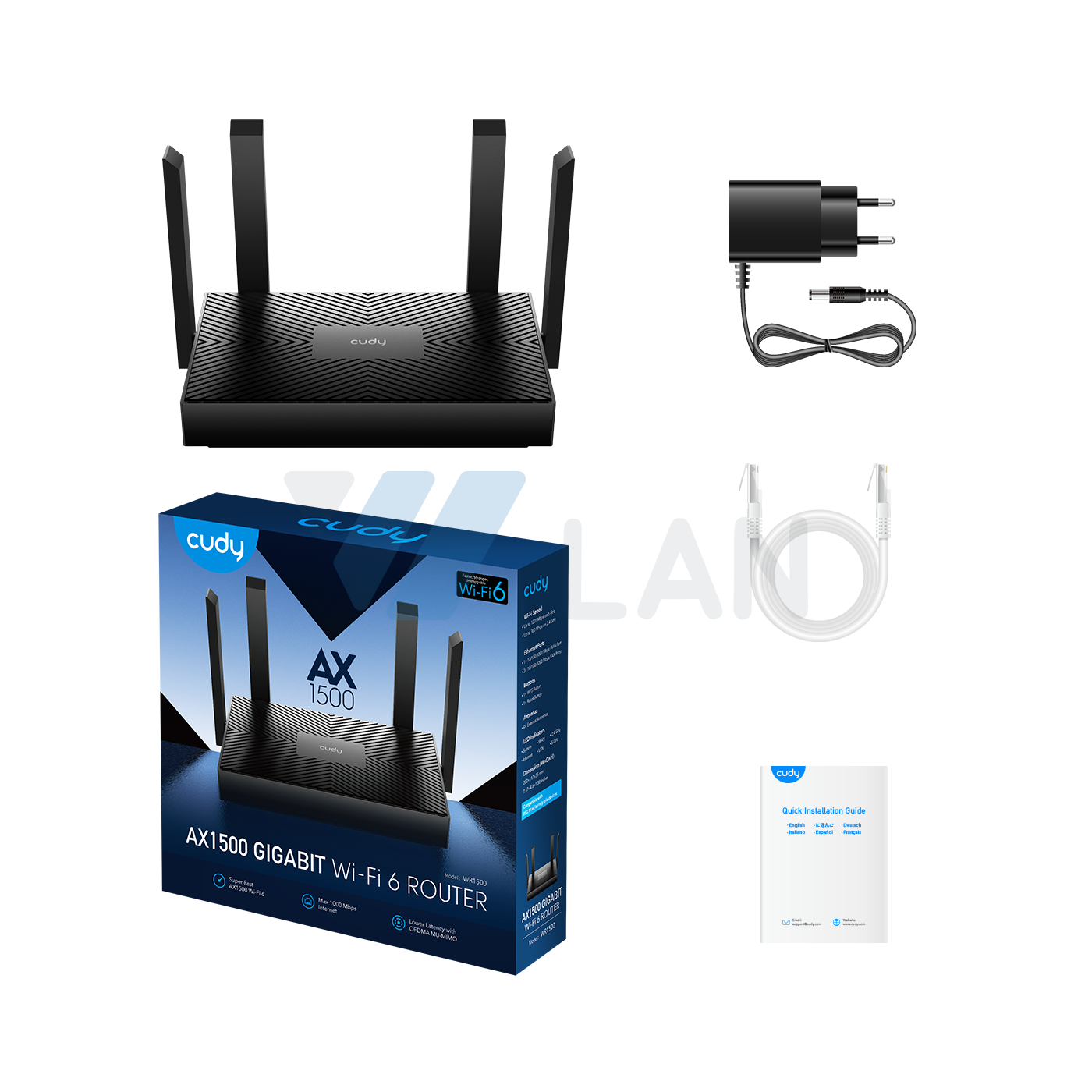

Package Content - WR1500
- Power Adapter
- Ethernet Cable
- Installation Guide
Ordering Information Retail Package Weight - EU: 559 g (19.72 oz.)
- BR: 549 g (19.37 oz.)
- ZH: 519.3 g (18.32 oz.)
Retail Package Dimension 240×230×60 mm
9.45×9.06×2.36 inchesUnits per Carton 20 Carton Dimension 49.5×32.5×48 cm
19.49×12.8×18.9 inchesCarton Gross Weight - EU: 12.1 kg (26.68 lbs)
- BR: 12.1 kg (26.68 lbs)
- ZH: 11.4 kg (25.13 lbs)
Carton Net Weight - EU: 11.2 kg (24.69 lbs)
- BR: 11.0 kg (24.25 lbs)
- ZH: 10.5 kg (23.15 lbs)
