HomeShop4G-IOTwAPR-2nD&EC200A-EU
wAPR-2nD&EC200A-EU
wAPR-2nD&EC200A-EU - Image 2

wAPR-2nD&EC200A-EU

50 000 AMD

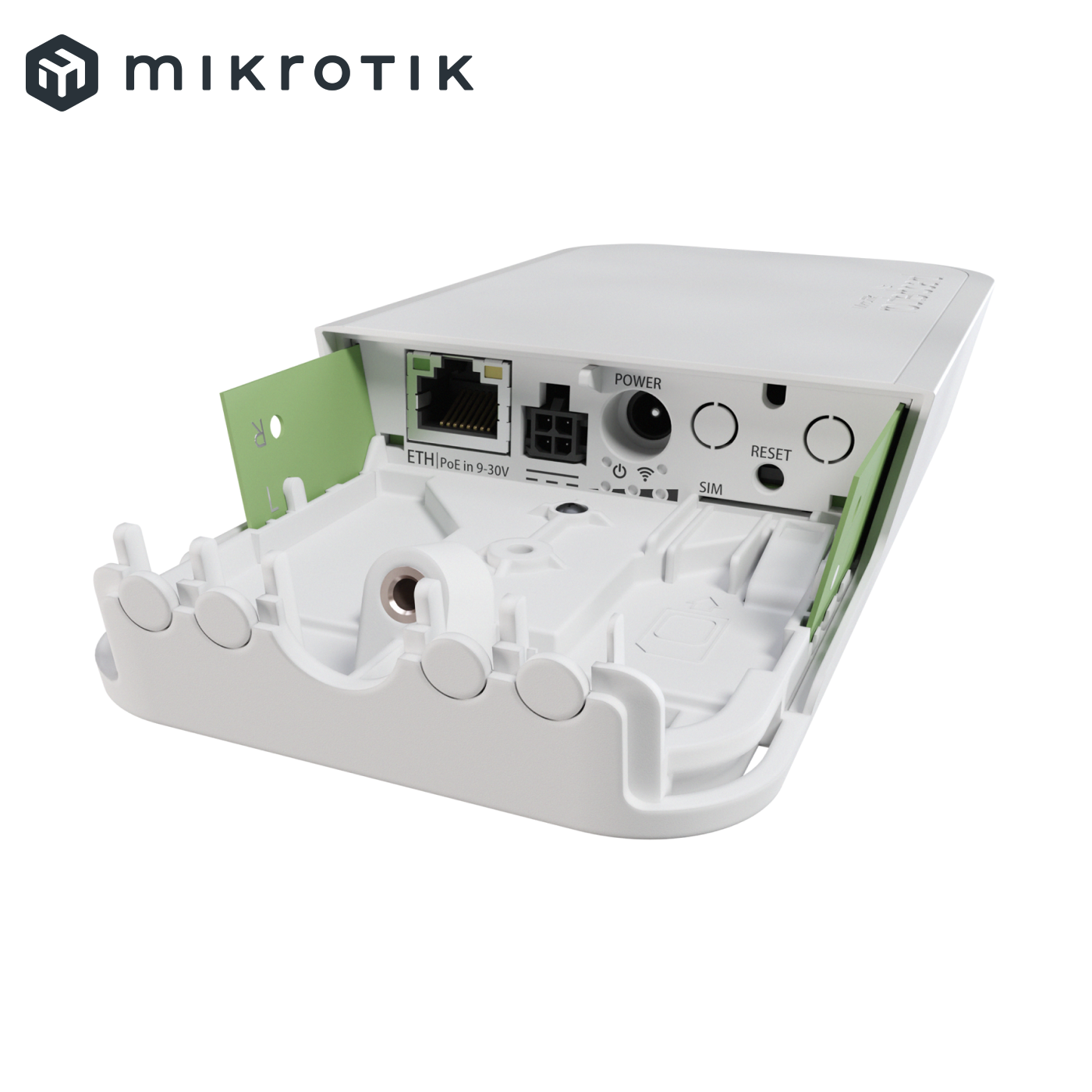

wAP LTE kit (2024) wAP LTE Kit with 650MHz CPU, 64MB RAM, 1xLAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless with integrated antenna, LTE modem (for International bands 1/3/5/7/8/20/28/38/40/41, CAT4) with internal LTE antenna, RouterOS L4, outdoor enclosure, PSU, PoE injector



Add to wishlist
Category:4G-IOT Brand: MikroTik
  • Description
  • Reviews (0)

Specifications

Details
Product code wAPR-2nD&EC200A-EU
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering

Details
Number of DC inputs 3 (PoE-IN, Automotive, DC jack)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V

Mobile

Details
2G Category Class12
2G bands 8 (900MHz) / 3 (1800MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz)
TAC 86314105

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, E-MARK, EAC, ROHS
IP 54
