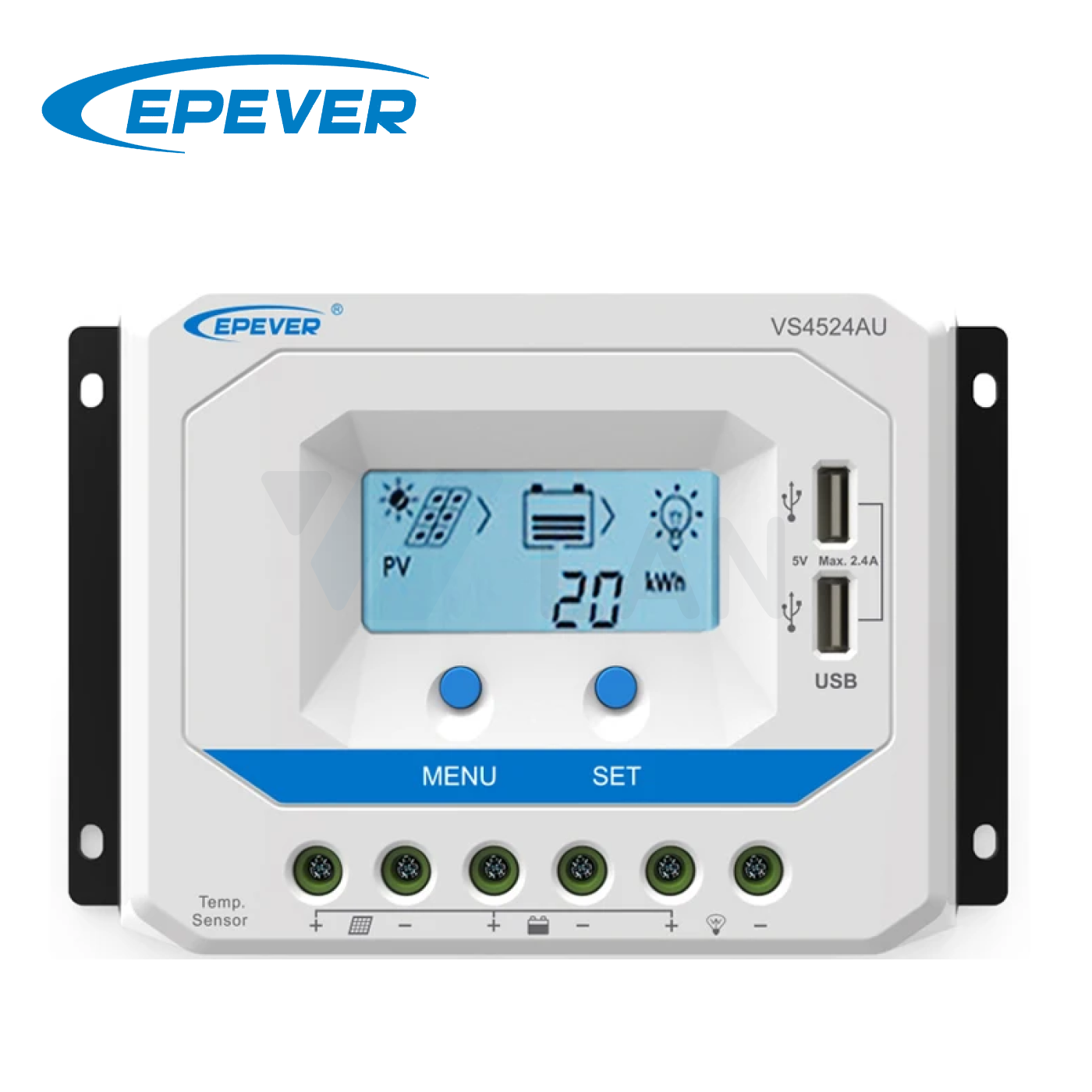

VS4524AU
28 500 AMD
MPPT Solar charge controller 45A 24V
- Type: MPPT (Maximum Power Point Tracking)
- System Voltage: 12V / 24V Auto-Sensing
- Max PV Input Voltage: 100V
- Max PV Input Power: 520W (12V) / 1040W (24V)
- Max Charging Current: 45A
- Max Load Current: 20A (DC Output)
- MPPT Tracking Efficiency: ≥ 99%
- Conversion Efficiency: Up to 98%
- Supported Battery Types: Sealed Lead-Acid (SLA), Gel, Flooded (Wet), Lithium (LiFePO4 – Selectable)
- Battery Voltage Range: 9V – 32V
- Temperature Compensation: -3mV/°C/cell (Configurable)
- Communication: RS485 Port (MODBUS protocol)
- Environmental: -25°C to +55°C operating temperature, IP32 enclosure rating
- Dimensions: 200mm × 140mm × 60mm
- Weight: 1.5kg
- Certifications: CE, RoHS, IEC 62109, EN 61000
