SXTR&FG621-EA

Name: SXTR&amp;FG621-EA
Brand: MikroTik
SKU: 15623
Availability: InStock

63 000 AMD

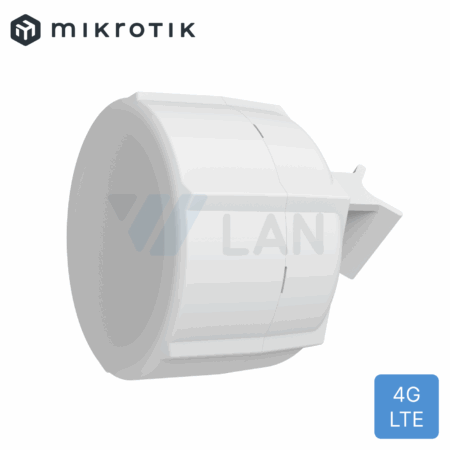

SXT LTE6 kit with 9dBi 60 degrees LTE directional antenna, 650MHz CPU, 64MB RAM, 2xLAN (one with PoE-OUT), LTE CAT6 modem (FG621-EA) for International bands 1/3/5/7/8/20/28/38/40/41, Dual-SIM, RouterOS L3, outdoor enclosure, PSU, PoE injector, pole mounting bracket

Add to wishlist

Category:4G-IOT Brand: MikroTik

Description

Specifications

Details
Product code	RBSXTR&R11e-LTE6
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531
RouterOS license	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-30°C to 60°C

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	21 W
Max power consumption without attachments	7 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether2
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	400 mA
Max total out (A)	600 mA

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC	35666210
