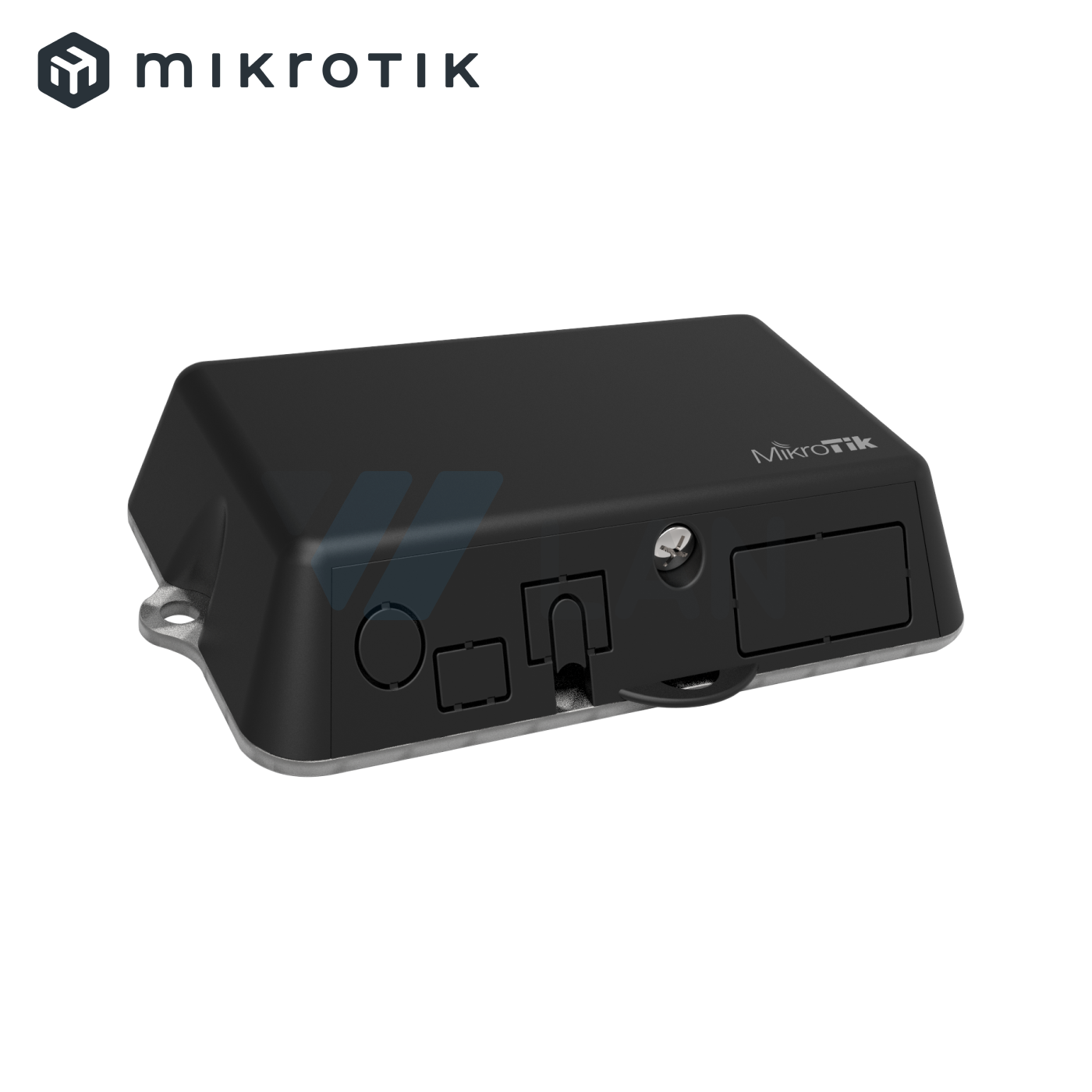

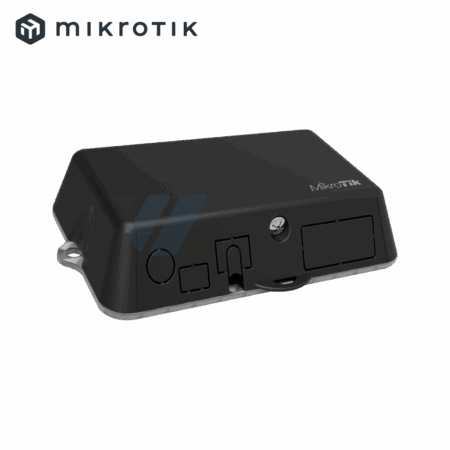

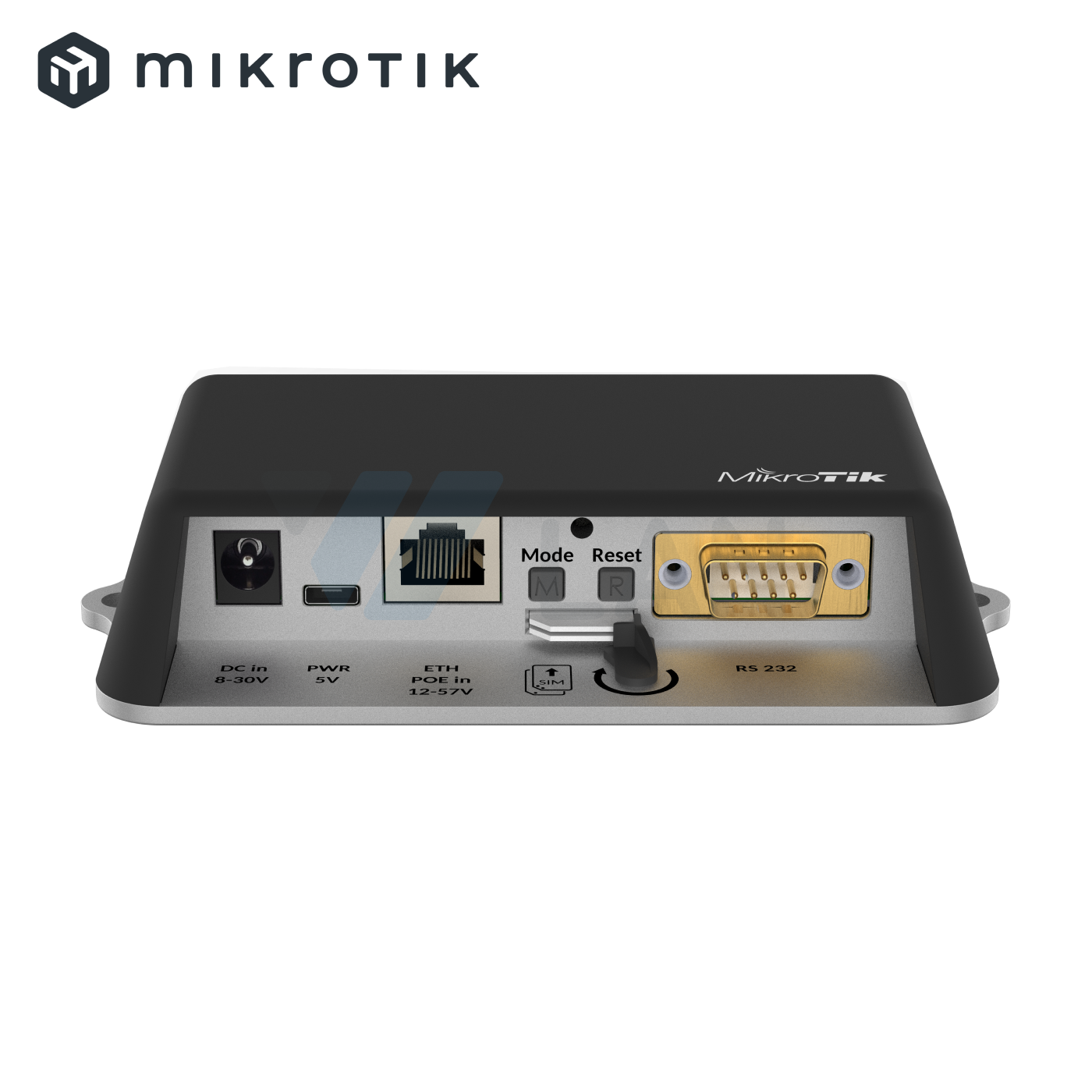

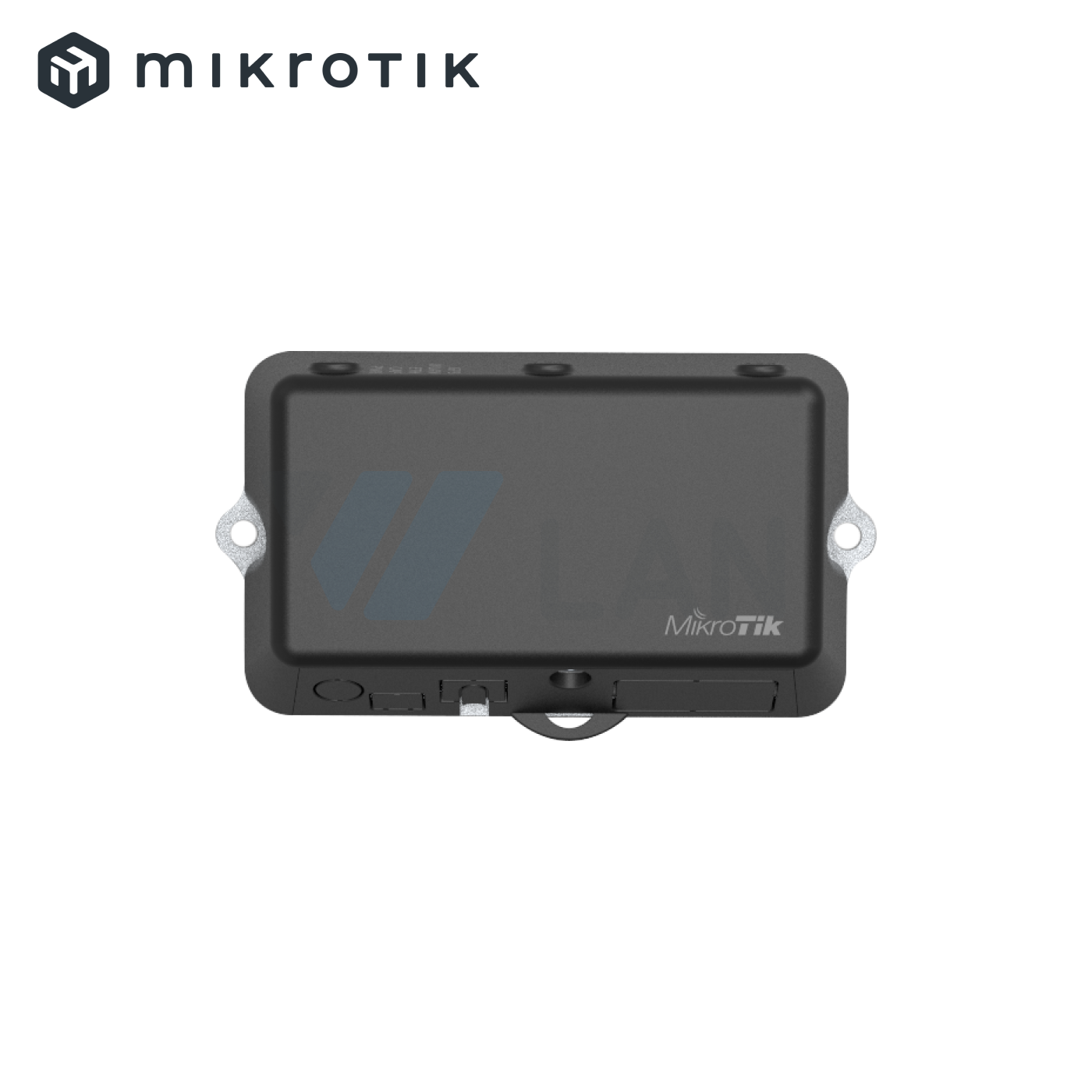

RB912R-2nD-LTm&EC200A
60 000 AMD
(LtAP mini LTE kit), Tiny, affordable weatherproof access point with a built-in LTE modem and GPS. Add extensive networking and tracking options to your vehicle without breaking the bank! This is a 2024 refresh with added B28 band support.
Specifications
| Details | |
|---|---|
| Product code | RB912R-2nD-LTm&EC200A-EU |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| MicroUSB input Voltage | 5 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, MicroUSB) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 8 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 8 (900MHz) / 3 (1800MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 5 (850MHz) / 8 (900MHz) / 1 (2100MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| MIMO DL | 2×2 |
| MIMO UL | 1×1 |
| LTE FDD bands | 20 (800MHz) / 8 (900 MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 5 (850MHz) / 28 (700MHz) |
| LTE TDD bands | 40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz) |
| TAC | 86314105 |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 2 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Serial console port | RS232 |
Other
| Details | |
|---|---|
| Mode button | Yes |
| GNSS standards | GPS |
| GPS RF connector type | uUFL |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, E-MARK, EAC, ROHS |
| IP | IP54 |
