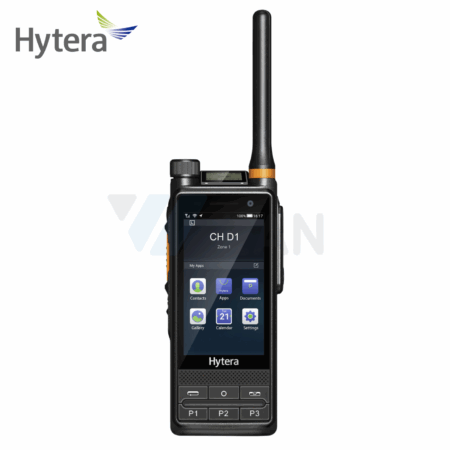

PDC680
620 000 AMD
Dual-mode Rugged Radio DMR/POC
| Wireless Data Communication | |
|---|---|
| Narrow Band | UHF:340~470 MHz;VHF:136-174MHz |
| LTE | 3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41 |
| CDMA | CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0 |
| WCDMA | B1/B2/B4/B5/B8 |
| GSM | 850/900/1800/1900 MHz |
| WLAN | 802.11 a/b/g/n/ac，2.4 GHz/5 GHz |
| NFC | 13.56 MHz |
| Positioning | GPS/BDS/GLONASS/Galileo/QZSS/A-GPS |
| General | |
|---|---|
| Dimensions(H×W×D) mm | 140 mm x 60 mm x 29.1 mm |
| Operating System | Android 10.0 |
| Peripheral Interface | 13PIN Accessory/Charging Port |
| Display | Top Screen:0.92” 128×88 Color: black & white; Main Screen: 3.6″ 1280×720, Color depth: 24bit; Capacitive, Touch Screen, Gloves Proofed, Passive Stylus |
| Card Slots | 2x Nano SIM card; 1x Micro SD card; 1x Encryption card for narrowband |
| Camera | Front: 8MP; Rear: 13MP |
| Operating Voltage | 7.7V(Rated) |
| Battery | 2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional) |
| Transceiver | |
|---|---|
| Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
| TX Power | UHF: 1W/4W VHF: 1W/5W |
| Digital Vocoder Type | AMBE+2™ |
