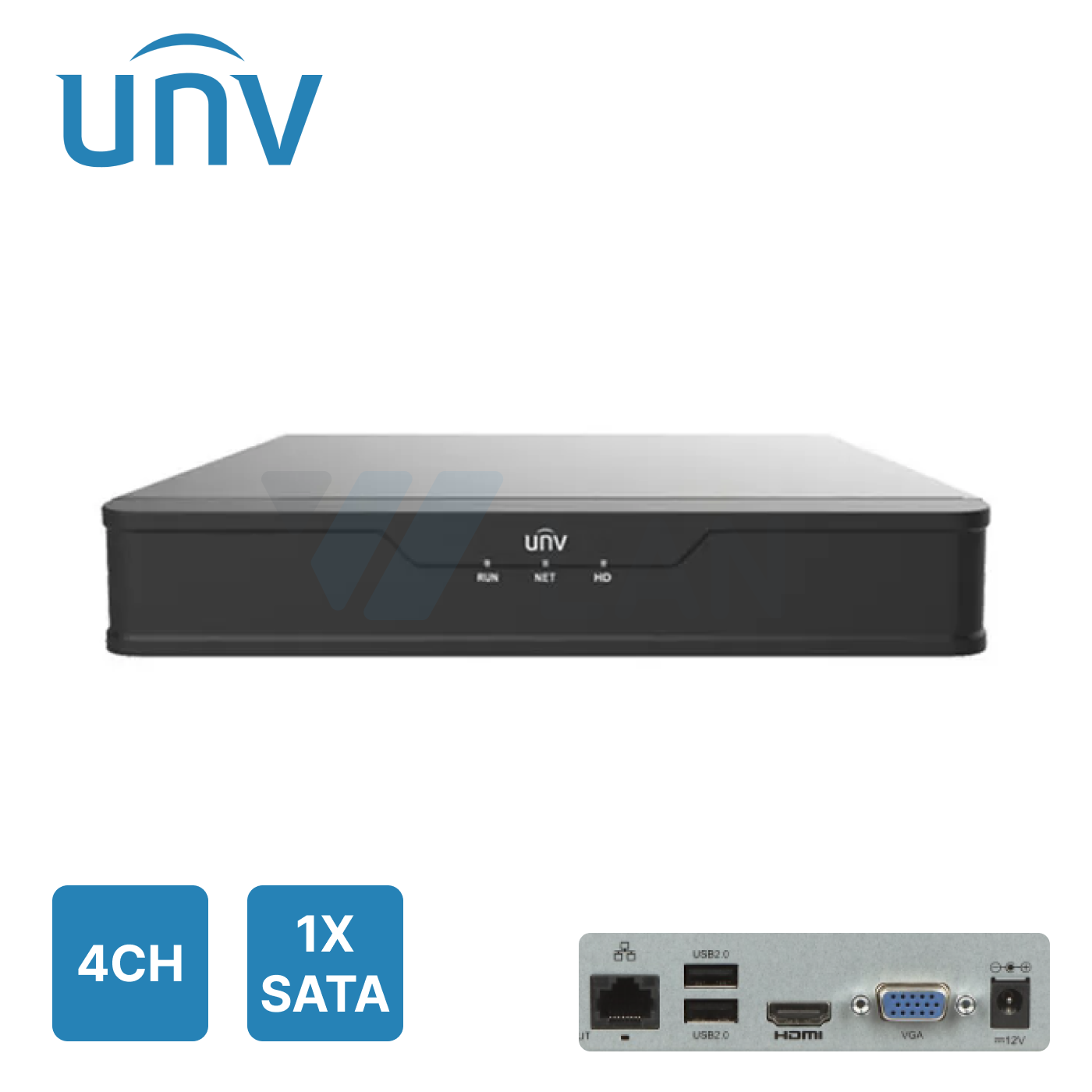

NVR301-04S3

NVR301-04S3

30 400 AMD

1 HDD 4-ch 1U Network Video Recorder
• Support Ultra 265/H.265/H.264 video formats
• 4/8/16-channel input
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• HDMI and VGA simultaneous output
• Up to 4K resolution recording
• Support cloud upgrade
Category: Brand:

NVR, 4CH, 1SATA>8TB, 8MP rec, 4K vid

NVR301-04S3
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25
Decoding Capability Description The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 64 Mbps
Outgoing Bandwidth 48 Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input 4-ch
Video/Audio Output
HDMI Output 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
3.5mm Audio Output 1-ch
Liveview Display 1/4
Corridor Mode Screen 3/4
Snapshot
FTP/Schedule/Event Snapshot 1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 4-ch
Smart
VCA Detection by IPC Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search Behavior Search
Smart by IPC Total 4-ch(Face Detection, SIP, UMD)
Capacity of Snapshot Records 2 millions records for face snapshot
Alarm
General Alarm Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Hard Disk
SATA 1 SATA Interface
Capacity Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
External Interface
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB Rear panel: 2 × USB2.0
RS485 N/A
RS232 N/A
Alarm In N/A
Alarm Out N/A
Power Supply DC 12 V/2 A
Working Environment
Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 5W
Dimensions
Weight (without HDD) ≤ 0.98Kg (2.16lb)
Dimensions 260mm × 240mm × 46mm (10.2″×9.4″×1.8″)
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
