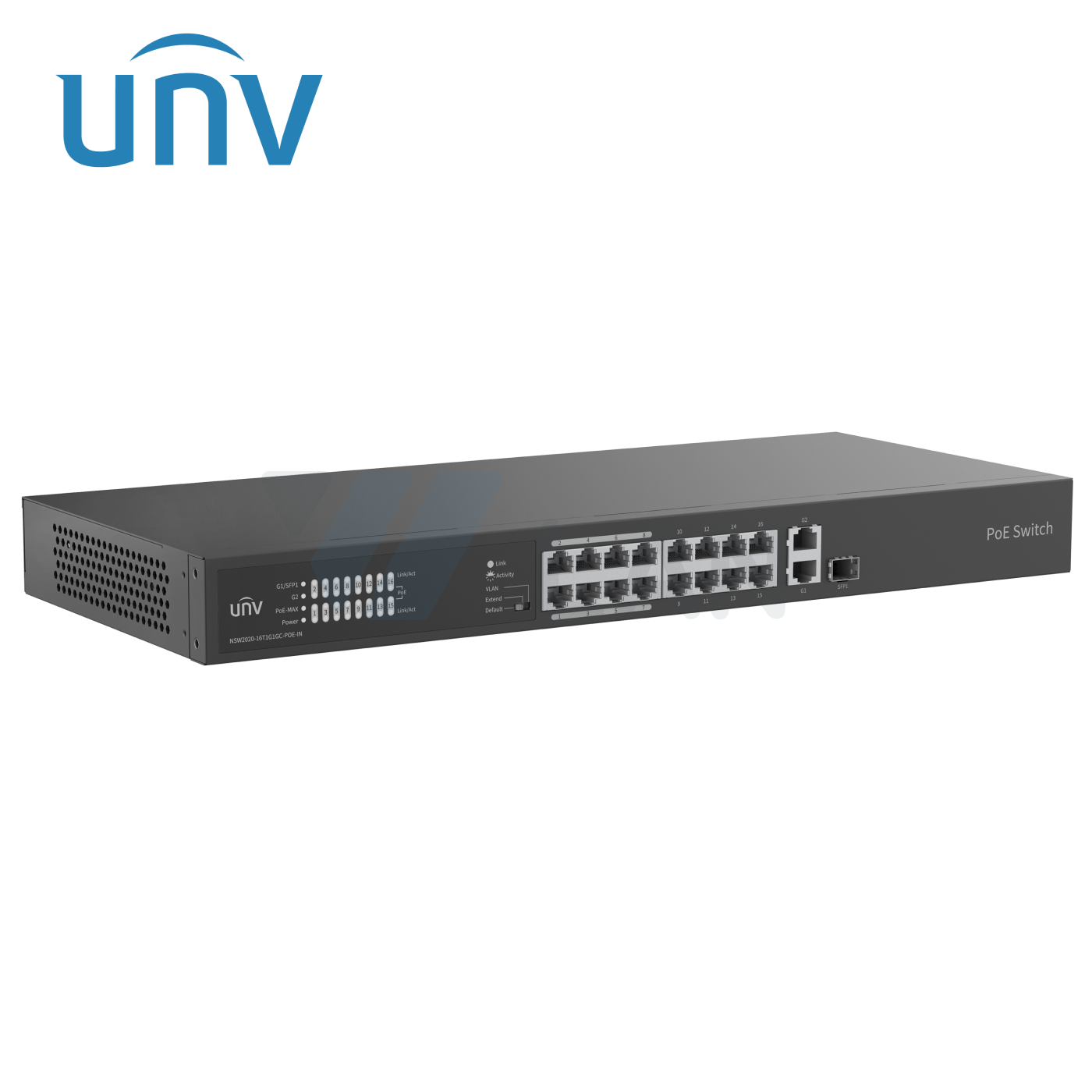

NSW2020-16T1GT1GC-POE-IN
52 000 AMD
Unmanaged Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
POE Switch, 16FE POE + 2FE Uplink 250M 250W PoE Switch
| NSW2020-16T1GT1GC-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports | |||||||
| Switching capacity | 7.2 Gbps | |||||||
| Packet Buffer | 4 M bit | |||||||
| Forwarding performance | 5.36Mpps | |||||||
| MAC | 16K | |||||||
| Dimensions (W×D×H) | 440*195*44mm | |||||||
| Prior Ports | 1 to 8 | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az | |||||||
| Max.Power | 265W | |||||||
| Cooling Fans | 1 | |||||||
| Mean Time Between Failure (MTBF) | > 50000 hours | |||||||
| Weight | 2.12KG | |||||||
| Operating humidity | 10%～90% (non-condensing) | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports | |||||||
| Hardware Specification | ||||||||
| PoE Mode | 802.3at/af , ModeB :(4/5+, 7/8-) | |||||||
