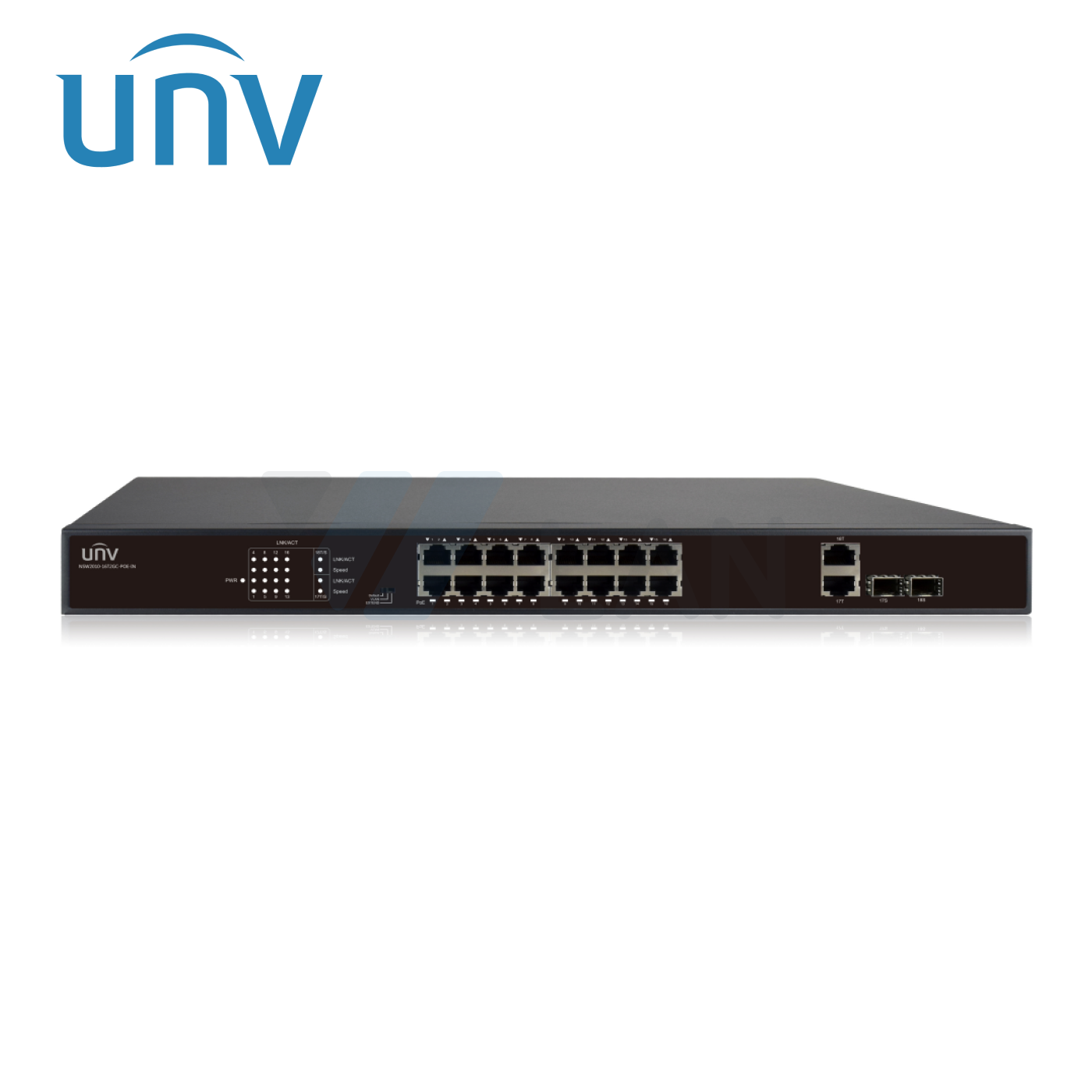

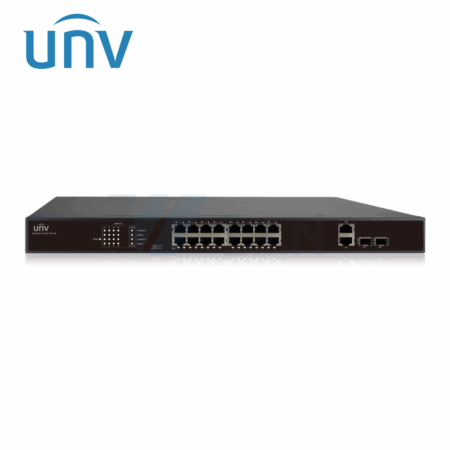

NSW2010-16T2GC-PoE-IN

Name: NSW2010-16T2GC-PoE-IN
Brand: UNV
SKU: 15909
Availability: InStock

82 000 AMD

Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Add to wishlist

Category:POE Switches Brand: UNV

Description

POE Switch, 16FE POE + 2GE/SFP Uplink 250M 250W PoE Switch

NSW2010-16T2GC-POE-IN
Hardware Specification
Ports Type	16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity	7.2 Gbps
Packet Buffer	4 M bit
Forwarding performance	5.36Mpps
MAC	16K
Weight	<4.2 kg
Cooling Fans	2
Mean Time Between Failure (MTBF)	> 50000 hours
Dimensions (W×D×H)	440mm x 207mm x 45mm(17.3″×8.1″×1.8″)
Operating humidity	10%～90% (non-condensing)
Working Mode	Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters, VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
