LS1012EU

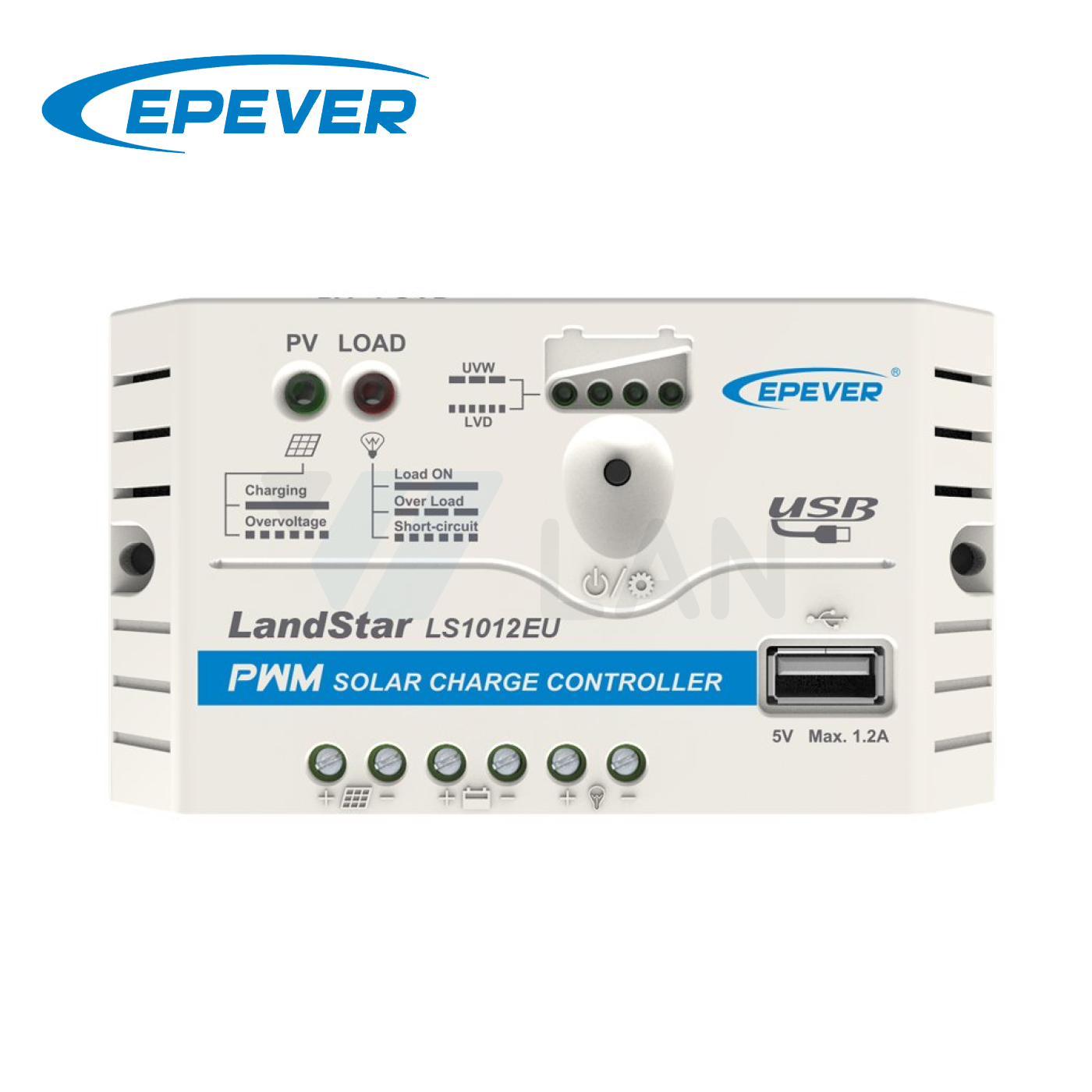

EPever LS1012EU (12V/10A PWM) – Key Specifications

1. Type: PWM (Pulse Width Modulation)

2. System Voltage: 12V DC (auto-detects battery voltage)

3. Max Solar Input:

   • Voltage (Vmp): 25V (max 50V open-circuit, Voc)

   • Current: 10A (continuous)

4. Battery Compatibility:

   • Sealed, Gel, Flooded Lead-Acid (user-selectable).

   • Charging Voltage: 14.4V (flooded), 14.2V (gel), 13.8V (sealed).

5. Load Control:

   • DC Load Output: 10A (max), with programmable on/off (timer or light sensor).

   • Low-Voltage Disconnect (LVD): 11.1V (reconnect at 12.6V).

6. Efficiency: Up to 98% (PWM efficiency).

7. Protections:

   • Overcharge, over-discharge, short-circuit, reverse polarity, and over-temperature.

8. Display: LED indicators (battery status, charging mode, faults).

9. Temperature Compensation: Built-in (adjusts charge voltage based on ambient temp).

10. Enclosure: IP32-rated (basic dust/water resistance).

11. Dimensions/Weight: 125 x 75 x 35 mm / 0.25 kg.

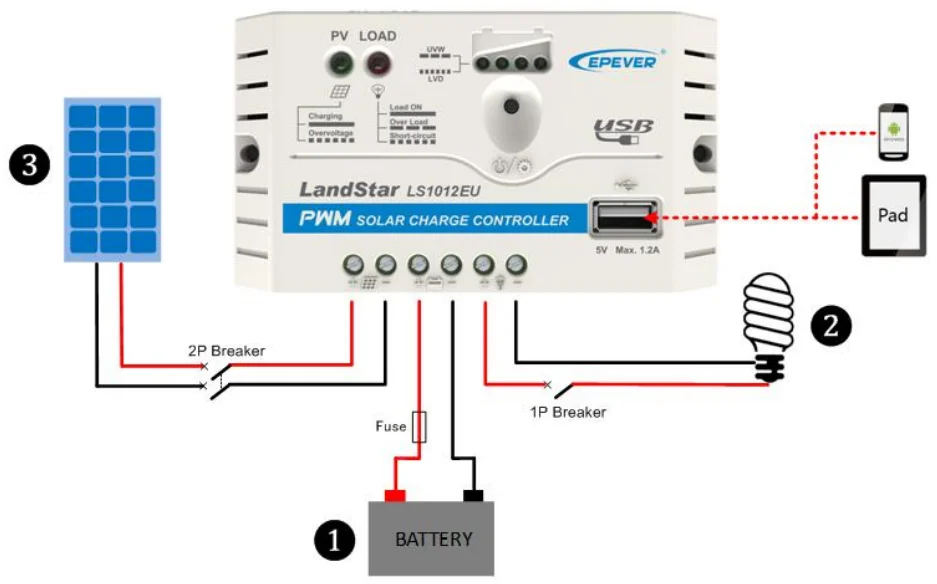

Typical Use: Small 12V systems (e.g., solar lights, RV, or backup power with ≤120W panels).

Note: No MPPT or lithium support. For larger systems, consider EPever’s MPPT series (e.g., Tracer).
