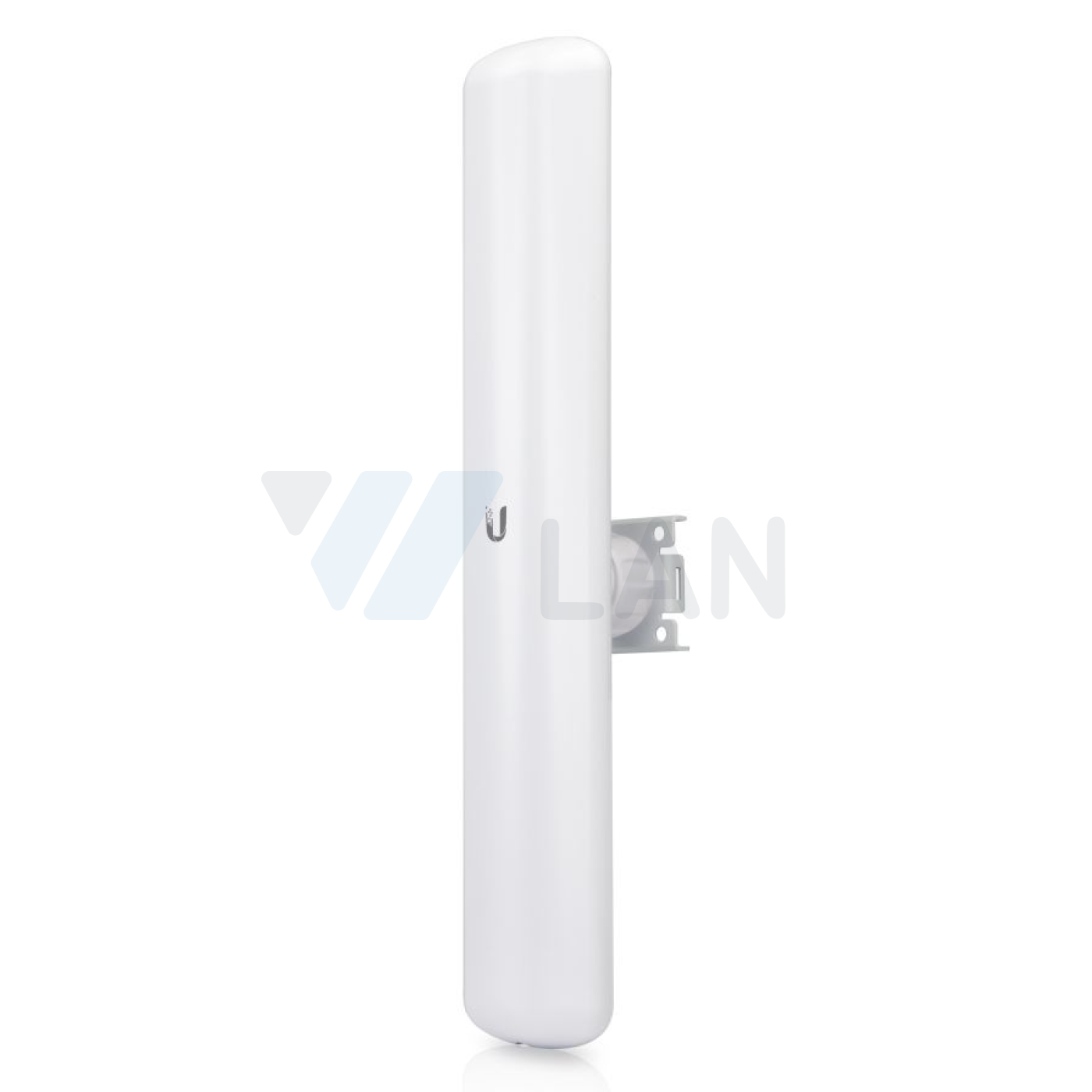

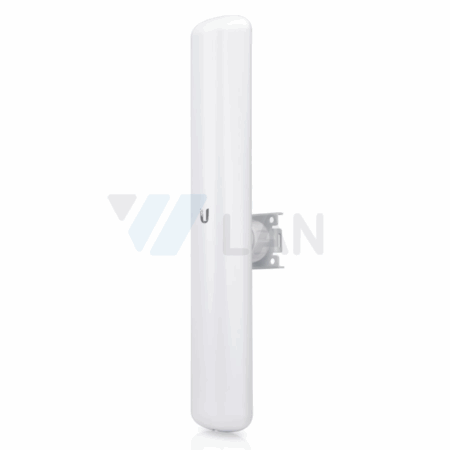

LAP-120
48 000 AMD
AP with 120 degree sector antenna 5GHz Band
Specifications
| LAP-120 | |
| Dimensions (Mount Not Included) | 452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14″) |
|---|---|
| Weight (Mount Not Included) | 420 g (14.82 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Antenna Gain | 16 dBi |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 – 26VDC |
| ESD/EMP Protection | ± 24kV Contact / Air |
| Shock and Vibrations | ETSI300-019-1.4 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | ||
| US/CA | U-NII-1 | 5150 – 5250 |
|---|---|---|
| U-NII-2A | 5250 – 5350 | |
| U-NII-2C | 5470 – 5725 | |
| U-NII-3 | 5725 – 5850 | |
| Worldwide | 5150 – 5875 | |
AP with 120 degree sector antenna 5GHz Band
