L41G-2axD&FG621-EA
55 000 AMD

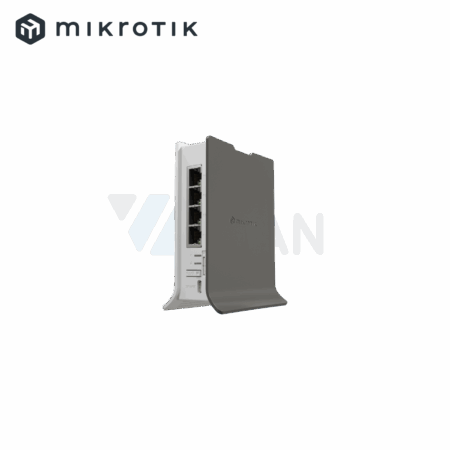

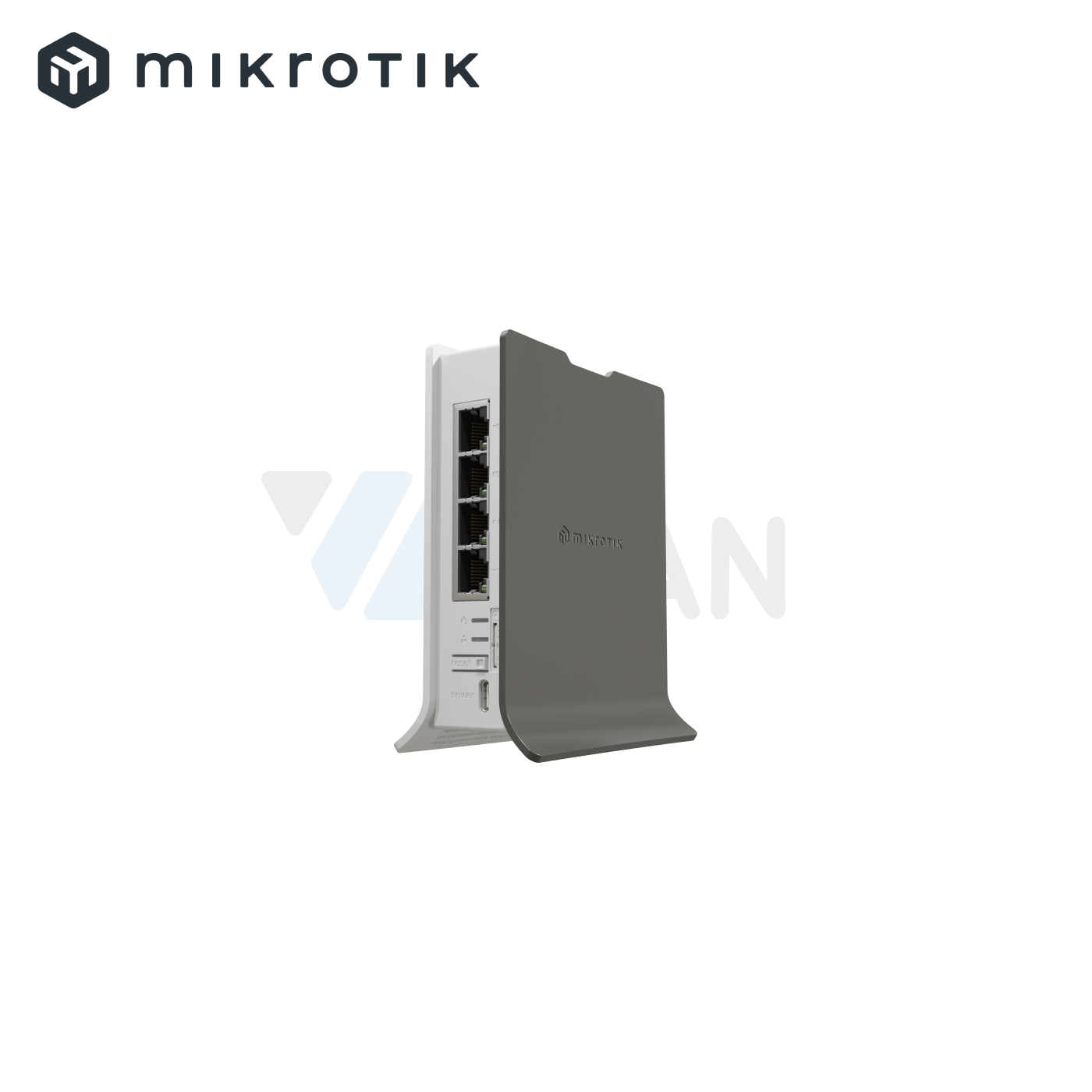

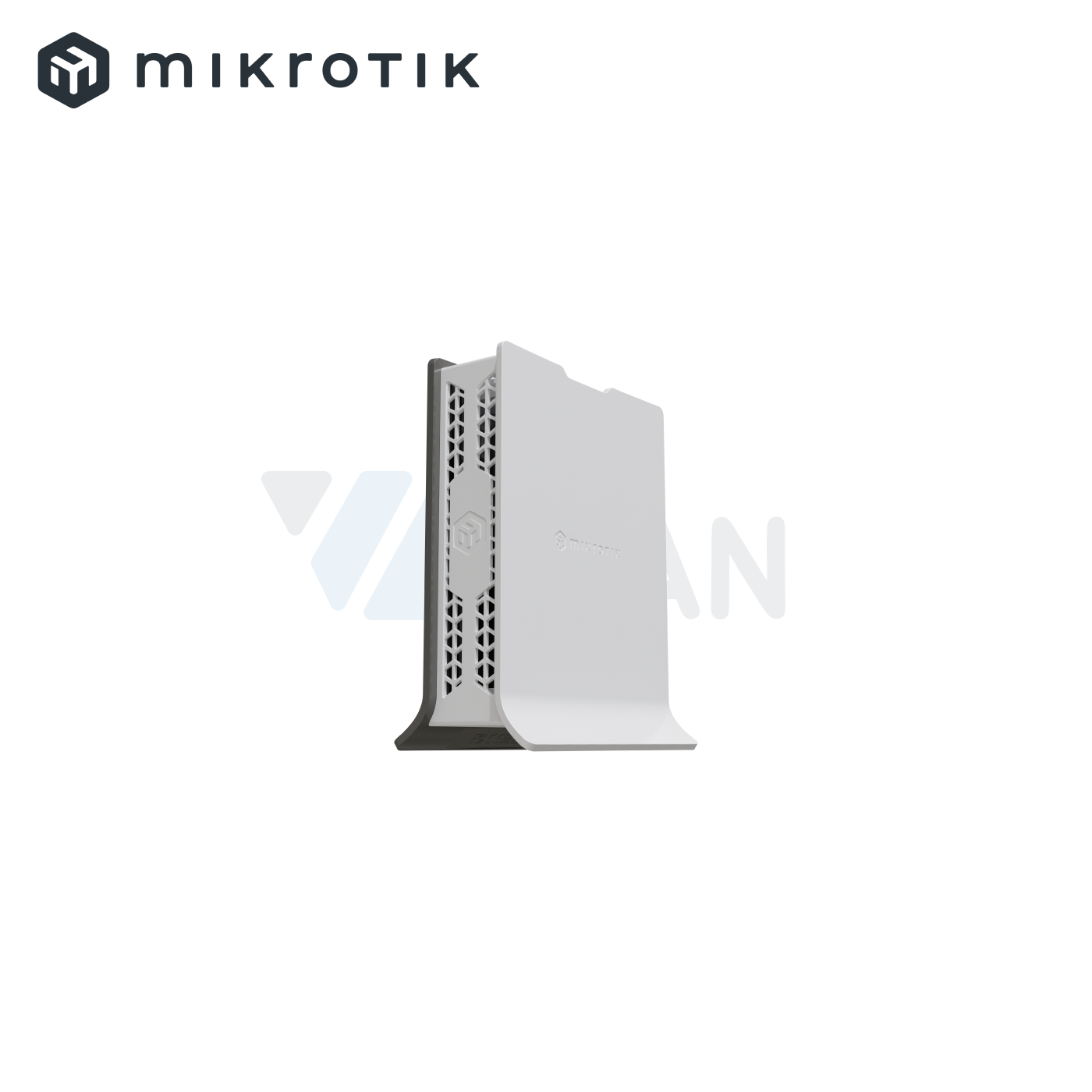

hAP ax lite LTE6 kit with 800MHz CPU, 256MB RAM, 4 x Gbit LAN, 2.4GHz 802.11b/g/n/ax two chain wireless with integrated antenna, LTE CAT6 modem for International bands 1/3/5/7/8/20/28/38/40/41 with integrated antenna, tower case, PSU, RouterOS L4, International version
Specifications
| Details | |
|---|---|
| Product code | L41G-2axD&FG621-EA |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | MT7531BE |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 4.3 |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| WiFi speed | AX600 |
Mobile
| Details | |
|---|---|
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| TAC | 86335904 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 4 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Micro SIM) |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (USB-C) |
| Supported Voltage | 5 V |
| Max power consumption | 12 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Other
| Details | |
|---|---|
| Mode button | Yes |
