L009UiGS-2HaxD-IN
62 000 AMD

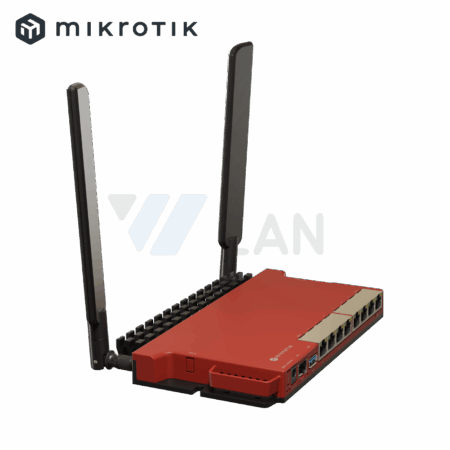

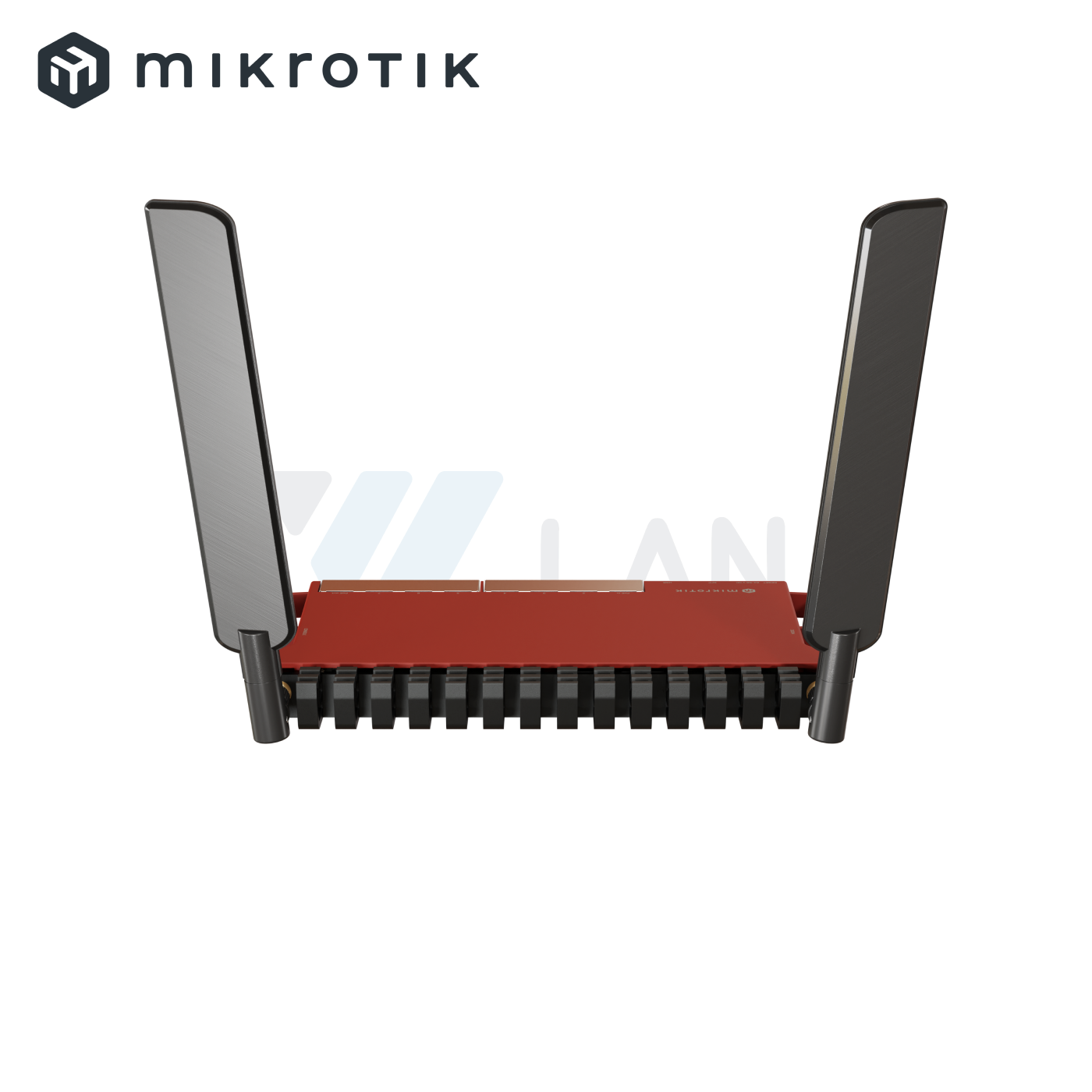

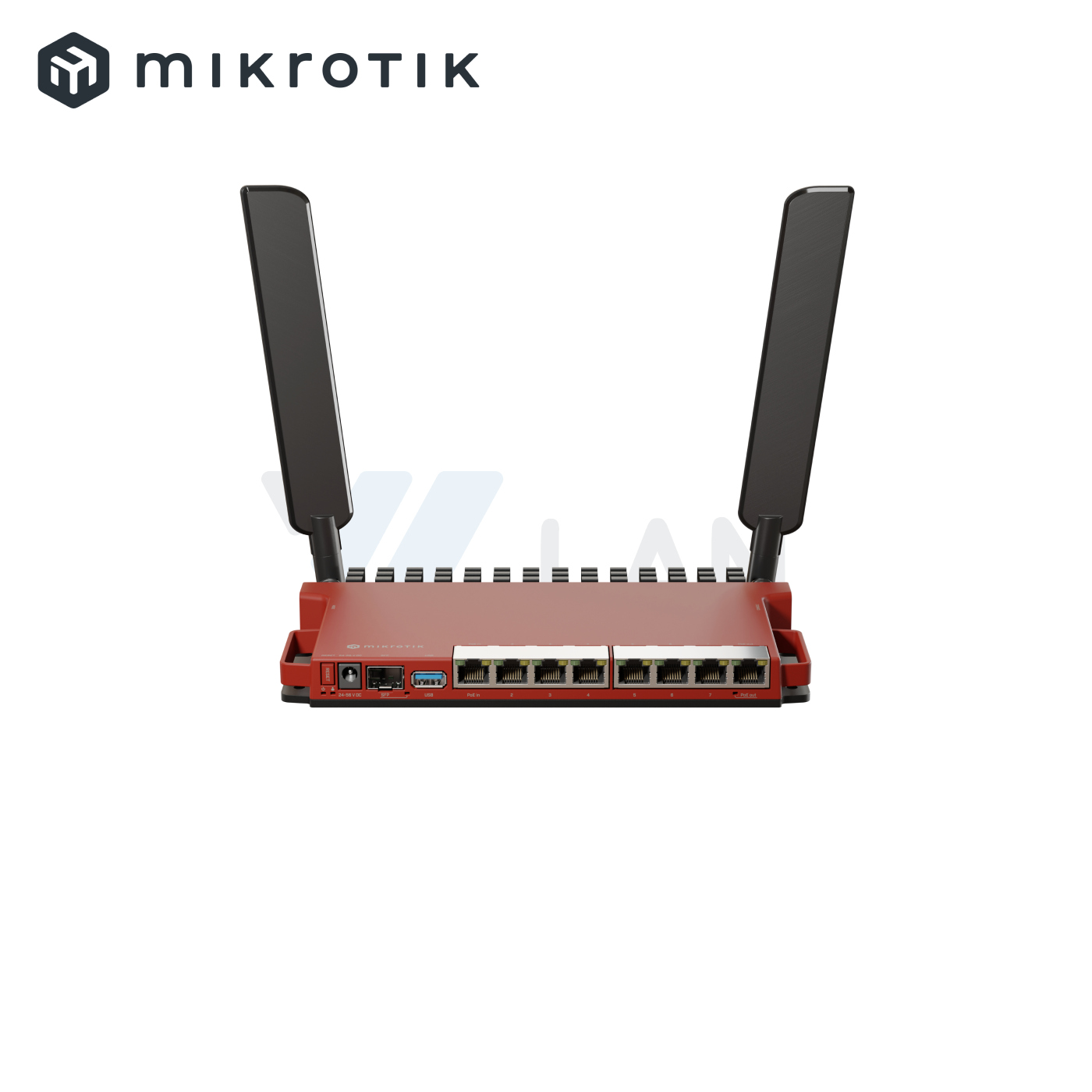

L009UiGS-2HaxD with dual core 800MHz CPU, 512MB RAM, 8 x Gbit LAN, 1 x 2.5 Gbit SFP port, 2.4GHz 802.11b/g/n/ax dual-chain wireless, 4dBi 2.4GHz external antennas, USB, desktop case, PSU, RouterOS L5
Specifications
| Details | |
|---|---|
| Product code | L009UiGS-2HaxD-IN |
| Architecture | ARM |
| CPU | IPQ-5018 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 88E6190 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | IPQ-5018 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| WiFi speed | AX600 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 24-56 V |
| Max power consumption | 47 W |
| Max power consumption without attachments | 14 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 24-56 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 1 A |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 1.0 A |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
Other
| Details | |
|---|---|
| Mode button | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 27 | -100 |
| 11MBit/s | 27 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 28 | -80 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -75 |
| MCS9 | 25 | -70 |
| MCS11 | 23 | -67 |
Additional information
| CPU | VoIP Accessories |
|---|
