IPC6412LR-X5UPW-VG

IPC6412LR-X5UPW-VG

92 000 AMD

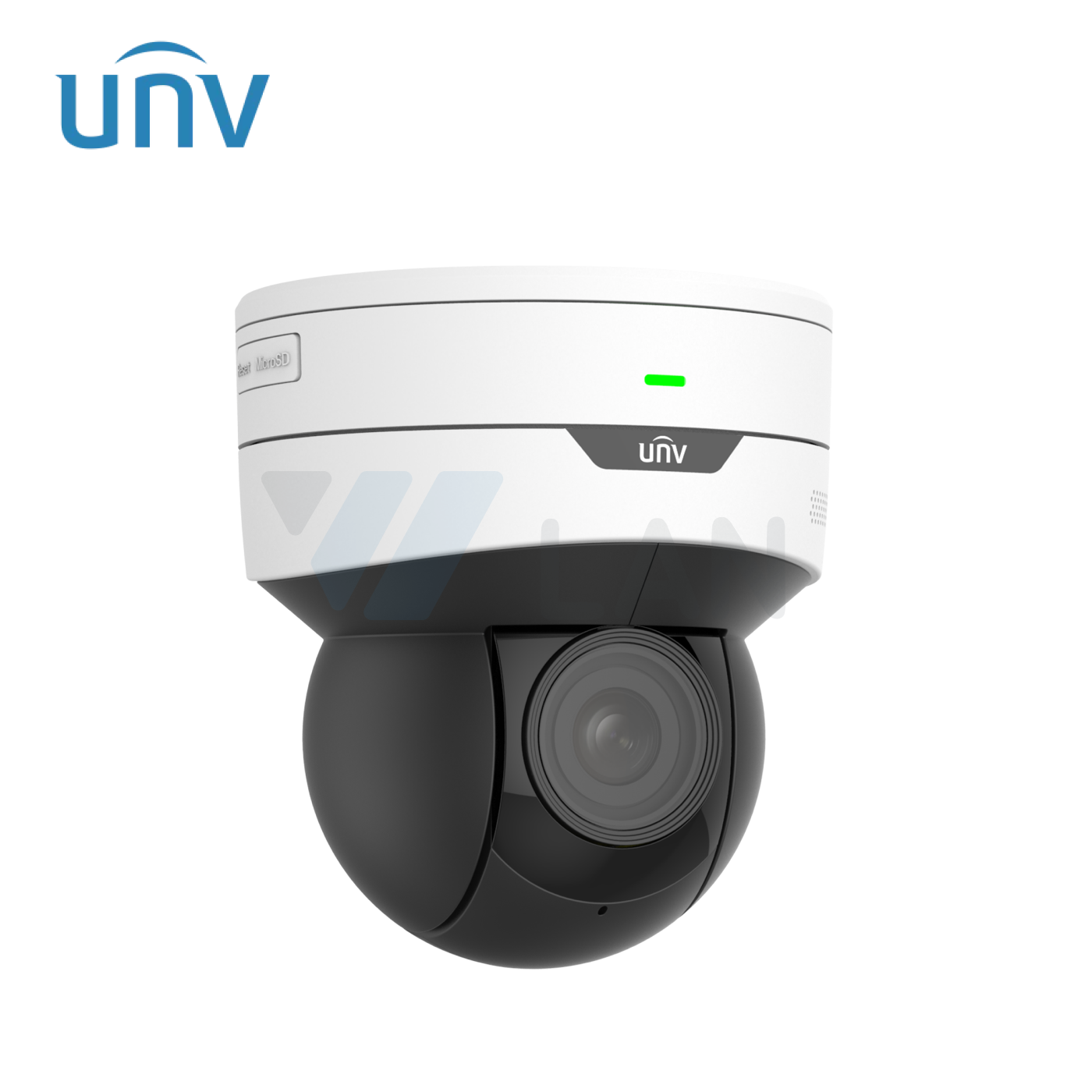

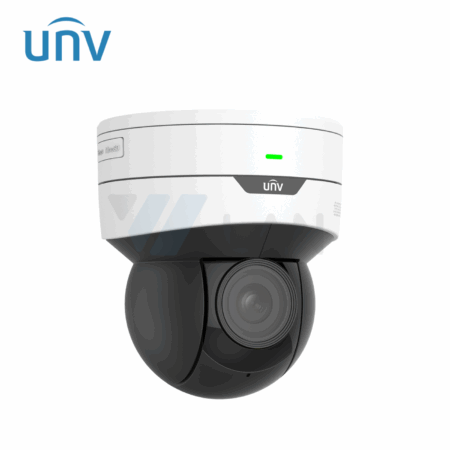

2MP 5X LightHunter Wi-Fi IR Network Mini PTZ Camera
• High quality image with 2 MP, 1/2.7″ CMOS sensor
• 1920 × 1080@30 fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention, supports false alarm filtering, including cross Line, intrusion, enter area, leave area detection
• automatic selection of best snapshots
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Wi-Fi connection and easy installation
• Built-in Mic & Speaker, support two-way audio
• Alarm 1 in and 1 out
• Smart IR, up to 30 m (98 ft) IR distance

Category: Brand:

PTZ, 2MP, 5X indoor, LightHunter, SD, WiFi, Mic, Speaker

IPC6412LR-X5UPW-VG
Camera
Sensor 1/2.7″ CMOS
Min. Illumination Colour:0.003 lux (F1.2, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 to 1/100000 s
WDR 120 dB
S/N ＞52dB
Lens
Focal Length 2.7 to 13.5 mm
Optical Zoom 5X
Iris F1.2
Field of View (H) 106.9°~30.6°
Field of View (V) 56.0°~17.7°
Field of View (D) 131.5°~39.8°
DORI
DORI Distance (Lens) 2.7~13.5(mm)
DORI Distance (Detect) 70.9m~247.5m(232.5ft~812.0ft)
DORI Distance (Observe) 28.4m~99.0m(93.0ft~324.8ft)
DORI Distance (Recognize) 14.2m~49.5m(46.5ft~162.4ft)
DORI Distance (Identify) 7.1m~24.8m(23.3ft~81.2ft)
Illuminator
Illumination Distance (IR) 30 m (98.4 ft)
Wavelength 850 nm
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 2MP (1920*1080),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps to 16 Mbps
Privacy Mask 24 areas, up to 4 areas per scene
U-code Support
ROI Support
Video Stream Triple streams
OSD Up to 8 OSDs
Defog Digital defog
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip vertical, Flip horizontal, 180°
HLC Support
BLC Support
Heatwave Reduction N/A
Intelligent
Exception Detection Object removed, Object Left Behind, Scene change, Defocus detection
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Events
Basic Detection Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
General Function Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 128 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 16KHZ
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
PTZ
Pan Range 350°
Pan Speed 0.1°/s ~ 60°/s
Tilt Range 0° ~ 90°
Tilt Speed 0.1° ~ 50°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Patrol Stay Time 120 s to 1800 s
Preset Image Freeze N/A
Home Position Support
Network
Protocols SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, UNV-Link, UNV-Link Pro
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/O N/A
Alarm I/O 1/1
Serial Port 1 * RS485
Built-in Mic Support
Built-in Speaker Support
WIFI Support
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021; EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-ROHS (2011/65/EU;(EU)2015/863)
General
Power DC12V(±25%), PoE(IEEE 802.3at)
Power Consumption Max 15W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø 129 x 143.6 mm (Ø 5.1″ x 5.7″) (Ø x H)
Weight 0.76kg(1.67lb)
Working Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Material Plastic
Web Client Language 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
