IPC6412LR-X16-VG

IPC6412LR-X16-VG

135 000 AMD

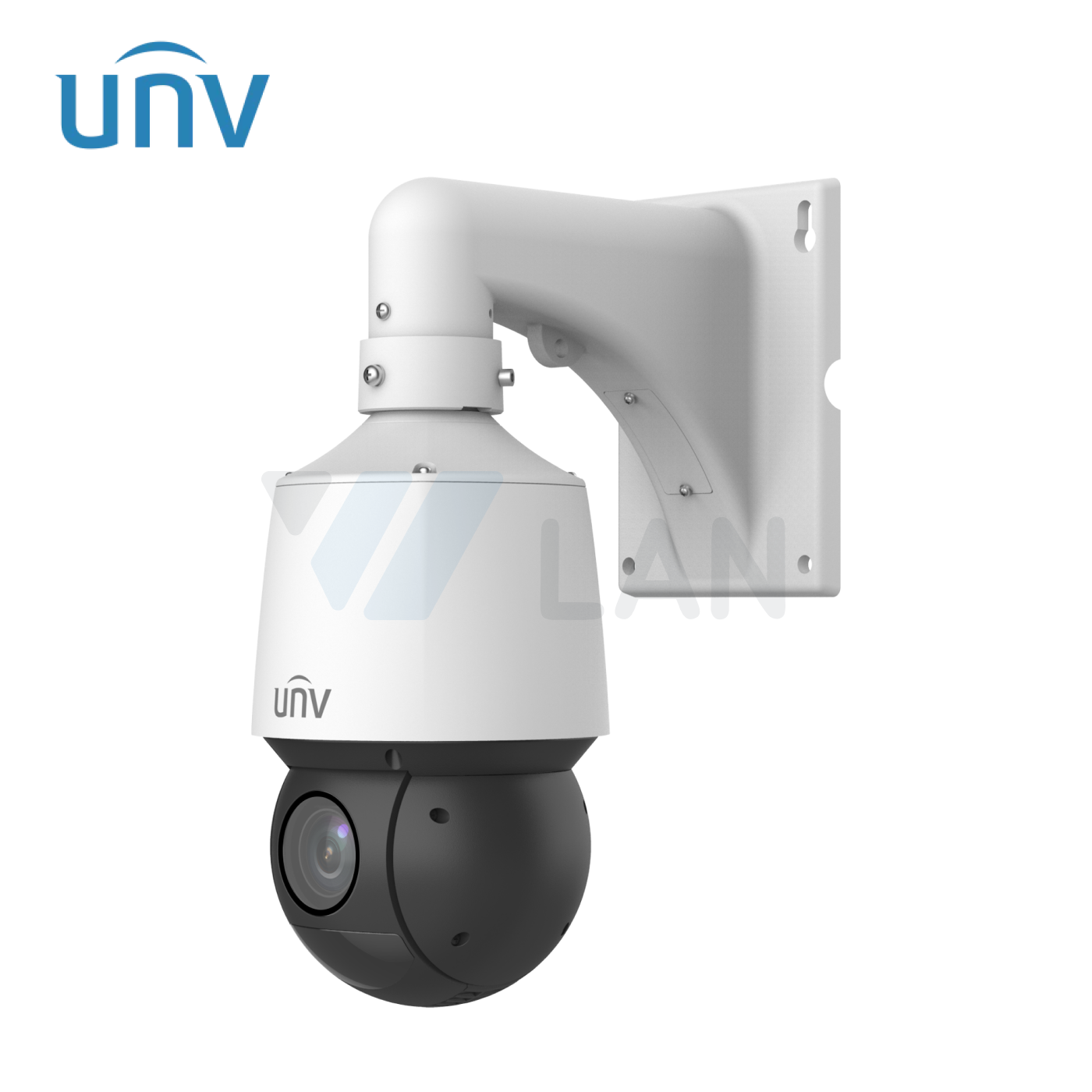

2MP 16X LightHunter IR Network Dome PTZ Camera
• High quality image with 2 MP, 1/2.8″ CMOS sensor
• 1920 × 1080@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 16X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention, supports false alarm filtering, including cross Line, intrusion, enter area, leave area detection
• automatic selection of best snapshots
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 100m (328ft) IR distance
• Micro SD, up to 512 GB
• DC 12V ± 25 % or PoE+ (IEEE 802.3at)
• IP66 ingress protection

Category: Brand:

PTZ, 2MP 16X Starlight IR Dome Union IP Camera

IPC6412LR-X16-VG
Camera
Sensor 1/2.8″ CMOS
Min. Illumination Colour: 0.003 Lux (F1.7, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120 dB
S/N >52 dB
Lens
Focal Length 5 to 80 mm
Optical Zoom 16X
Iris F1.7 to F2.8
Field of View (H) 51.70° ~ 4.89°
Field of View (V) 30.49° ~ 2.75°
Field of View (D) 63.59° ~ 5.77°
DORI
DORI Distance (Lens) 5~80(mm)
DORI Distance (Detect) 77.6m~1241.4m(254.5ft~4072.8ft)
DORI Distance (Observe) 31.0m~496.6m(101.8ft~1629.1ft)
DORI Distance (Recognize) 15.5m~248.3m(50.9ft~814.6ft)
DORI Distance (Identify) 7.8m~124.1m(25.5ft~407.3ft)
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 2MP(1920*1080),Max 30fps
Sub Stream: 720P(1280*720), Max 30fps
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
ROI Support
Video Stream Triple streams
Privacy Mask 24 areas, up to 4 areas per scene
OSD Up to 8 OSDs
Events
Basic Detection Motion detection, Tampering alarm, Object removed, Object Left Behind
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Protocols SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
Security TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, UNV-Link, UNV-Link Pro
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Intelligent
Exception Detection Object removed, Object Left Behind
Auto Tracking Support, target filtering: human, non-motor vehicle and vehicle
Multi-target Detection N/A
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting Support people flow counting and crowd density monitoring
PTZ
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Number of Presets 1024
Preset Image Freeze N/A
Preset Patrol 16 patrols, up to 64 presets for each patrol
Patrol Stay Time 15 s to 1800 s
Home Position Support
Pan Range 360° (endless)
Pan Speed –15° ~ 90° (auto reverse)
Tilt Range 0.1°/s ~ 80°/s
Tilt Speed 0.1°/s ~ 80°/s
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip vertical, Flip horizontal, 180°
HLC Support
BLC Support
Smart IR Support
Defog Digital defog
Heatwave Reduction Support
Interface
Audio I/O N/A
WIFI N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic N/A
Built-in Speaker N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Illuminator
Illumination Distance (IR) 100 m (328.1 ft)
IR On/Off Control Auto/Manual
Wavelength 850 nm
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC12V(±25%,3A), PoE+(IEEE 802.3at)
Power Consumption MAX 20W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø 162 x 293mm (Ø 6.4″ x 11.5″) (Ø x H)
Weight 1.79kg (3.95lb)
Working Environment -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 6 KV
Reset Button Support
Web Client Language 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Heater Support
