HomeShopSurveilanceIP CameraIPC568E-G

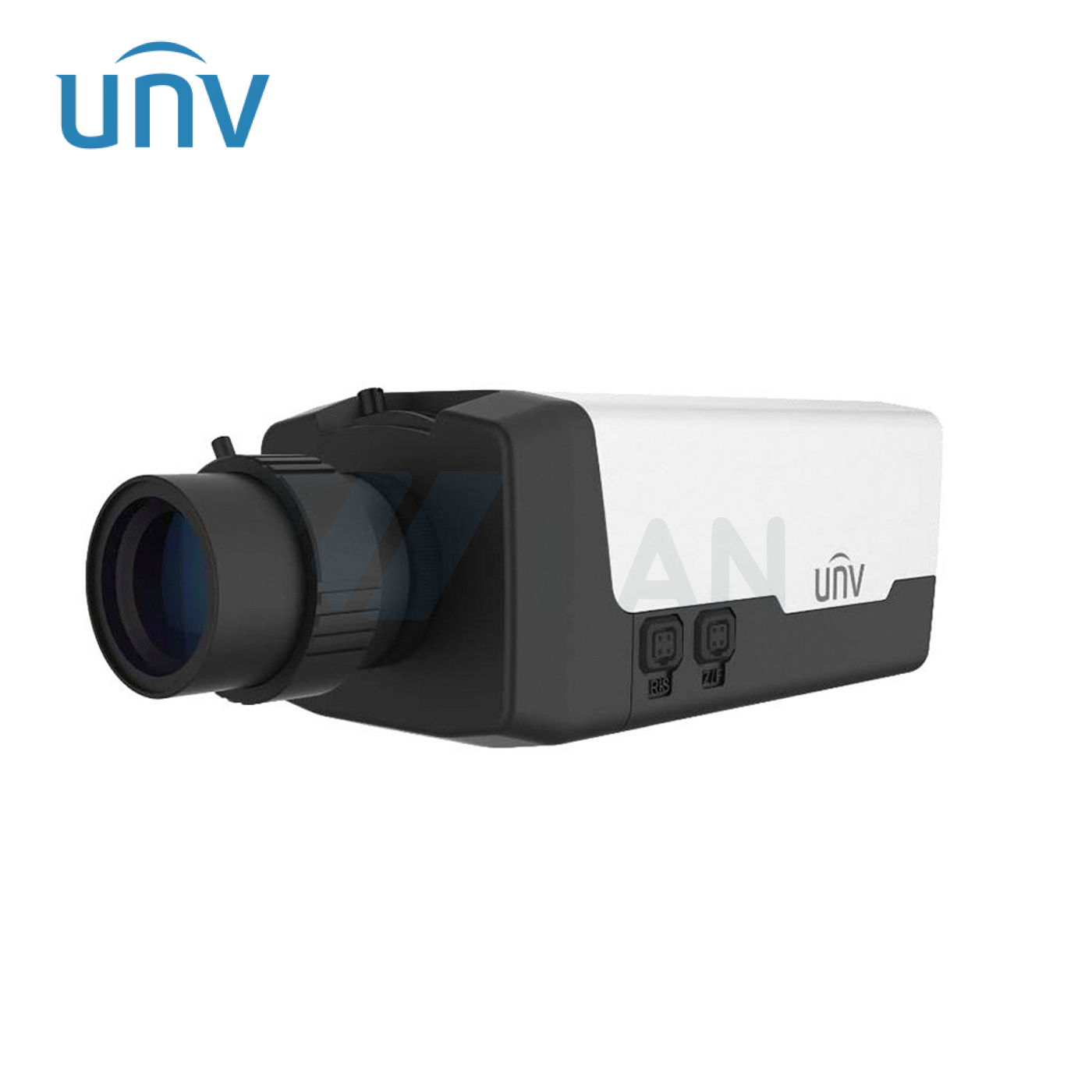

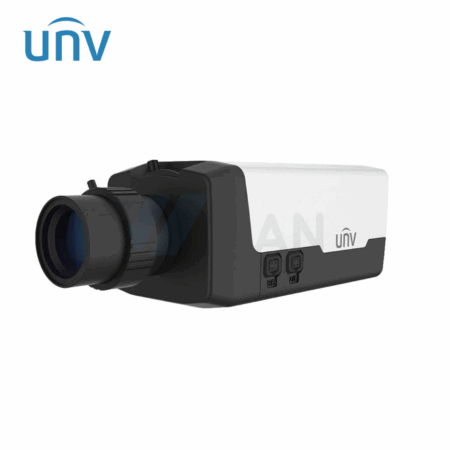

IPC568E-G

IPC568E-G

164 300 AMD

Add to wishlist
Category:IP Camera Brand: UNV
  • Description
  • Reviews (0)

Bullet, 12MP, Pro
Model IPC568E-G
Camera
Sensor 1/1.7″ progressive scan ,CMOS
Lens Mount CS
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.06 Lux (F1.2, AGC ON) B/W:0.03 Lux(F1.2, AGC ON)
Iris DC-Iris 4V (4-Pin)/P-Iris 5V (4-Pin)
Day & night Automatically removable IR-cut filter(ICR)
Digital noise reduction 2D/3D DNR
Motor Zoom/focus DC 5V (4-Pin)
S/N >55dB
Defog Optical Defog & Digital Defog
WDR DWDR
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:12 MP(4000×3000):Max.20 fps,8MP(3840 × 2160): Max.25fps, 2MP(1920×1080)@30fps; Sub Stream:2MP(1920×1080) : Max. 30fps; Third Stream: D1 (720×576): Max. 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
ROI Up to 8 areas
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Exception Detection Audio detection
Intelligent Identification Face detection, Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,SNMP
Compatible Integration ONVIF(Profile S, Profile G), API
Interface
Audio I/O 3.5 mm audio interface
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 2 / 1
Serial Port 1 RS485 (support Pelco-D/P)
Network 100M/1000M Base-FX SFP + 100M/1000M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power 24 V AC±25%, 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 9.5W
Dimensions (L × W × H) 151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight 0.48 kg (1.1 lb)
Working Environment –20°C ~ 60°C (-4°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Reset Button Supported
