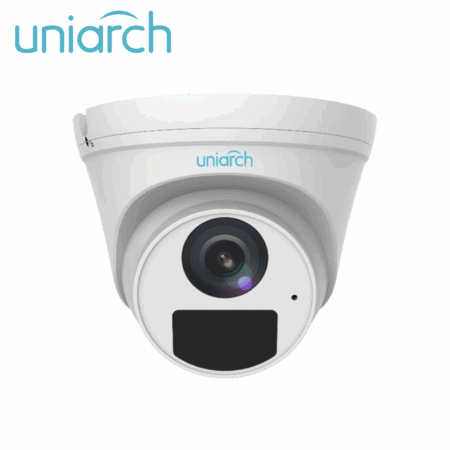

IPC-T122-APF28-ECO

IPC-T122-APF28-ECO

14 000 AMD

• Day/night functionality

• Smart IR, up to 30m (98ft) IR distance

• 2D/3D DNR (Digital Noise Reduction)

• Built-in Mic

Category: Brand:
IPC-T122-APF28 IPC-T122-APF40
Camera
Sensor 1/2.8″, progressive scan, CMOS
Lens 2.8mm@F2.1 4.0mm@F2.1
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 43.4 17.4 8.7 4.3
4.0 62.1 24.8 12.4 6.2
Angle of View (H) 106.7° 87.5
Angle of View (V) 57.1° 46.3°
Angle of View (O) 115.7° 92.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.02Lux (F2.1, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR DWDR
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Video
Video Compression Ultra 265, H.265, H.264
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps;
Sub Stream: D1 (720*576), Max 25fps; 640*360, Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps;
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP
Compatible Integration ONVIF (Profile S, Profile T), API
Interface
Network 10/100M Base-TX Ethernet
Built-in Mic Supported
General
Power DC 12V±25%, PoE
Power consumption: Max 3.5W
Dimensions (Ø x H) Ø118 x 97mm (Ø4.6” x 3.8”)
Weight 0.25kg (0.55lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Ingress Protection IP67
Reset Button N/A
