HR1065
2 200 000 AMD

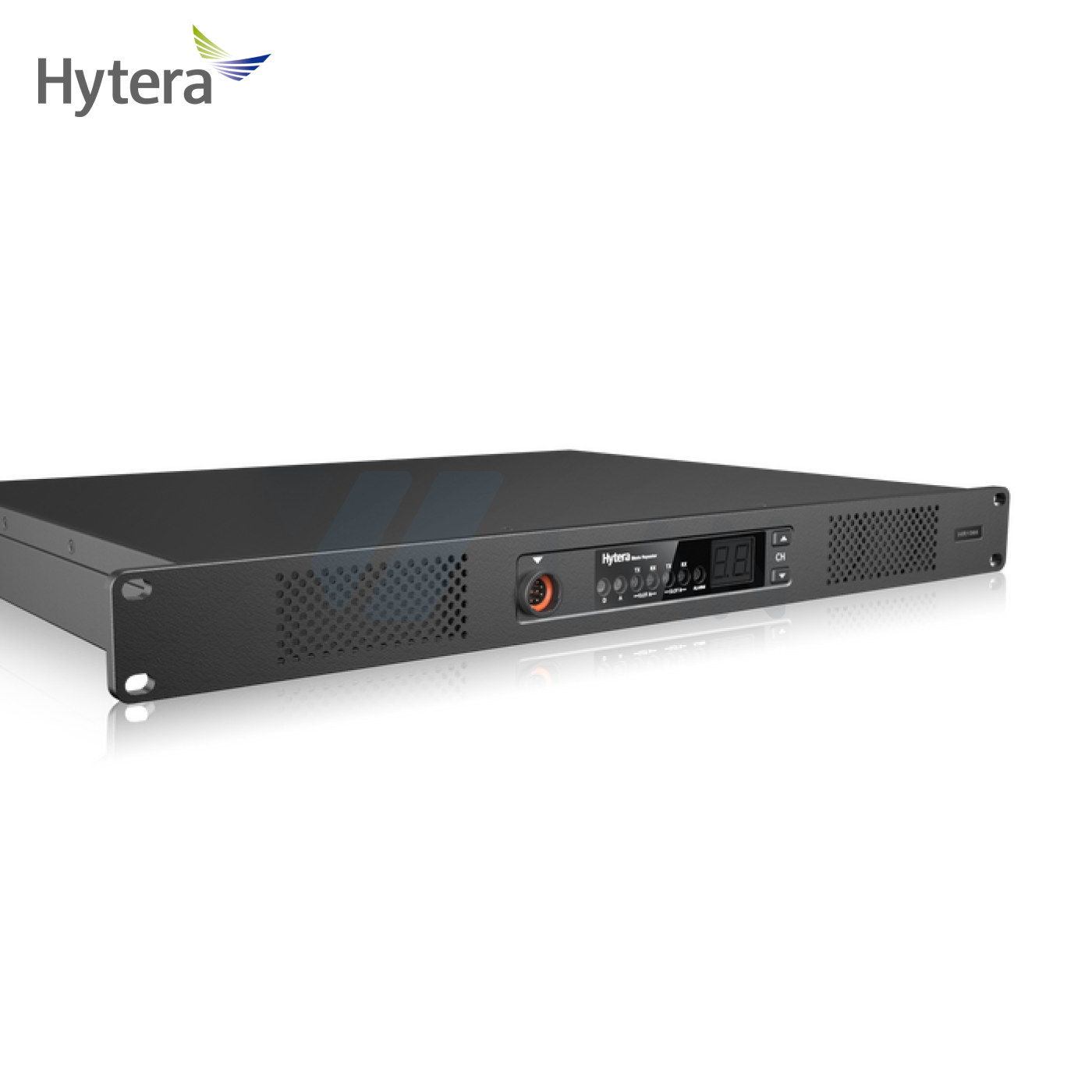

Ultra-thin Professional DMR Repeater
Technical Specifications
General
- Frequency range
- UHF: 400-470 MHz
- VHF: 136-174 MHz
- Channels & zones
- Channel capacity: 1024
- Zone capacity: 1
- Channels per zone: 64
- Channel spacing
- Analogue: 12.5kHz/20kHz/25kHz
- Digital: 12.5kHz
- Supply voltage
- DC +13.6 V ± 15% AC 100-240 V
- Current consumption (DC)
- standby DC: ≤0.9 A / AC: ≤0.35 A
- transmitting DC: ≤12 A / AC: ≤1.2 A
- Frequency stability
- ±0.5 ppm
- Antenna impedance
- 50 Ω
- Duty cycle
- 100%
- Dimensions H x W x D
- 44 mm x 483 x 366 mm
- Weight
- 5.8 kg
- Ethernet port
- 1 x RJ45 Ethernet port (standard version)
- 2 x RJ45 Ethernet port (enhanced version)
- USB port
- 1 x USB port (enhanced version)
- Networking
- Single-site repeater mode, IP Multi-site mode
- Digital protocol
- ETSI-TS102 361-1,-2,-3
Receiver
- Sensitivity
- Analogue: 0.18µV (12dB SINAD)
- Analogue: 0.16µV (12dB SINAD) (typical)
- Digital: 0.18µV / BER 5%
- Adjacent channel selectivity
- TIA-603: 65dB @12.5kHz / 75dB @20/25kHz
- ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
- Intermodulation
- TIA-603: 75 dB
- ETSI: 70 dB
- Spurious response rejection
- TIA-603: 80 dB
- ETSI: 80 dB
- Blocking
- 90 dB
- Hum and noise
- 40 dB @12.5kHz
- 43 dB @20kHz
- 45 dB @25kHz
- Conducted spurious emission
- @≤1GHz: ≤ -57 dBm
- @>1GHz: ≤ -47 dBm
- Rated audio distortion
- <3%
- Audio response
- +1 to -3 dB
Transmitter
- RF power output
- 5-50 W
- FM modulation
- 11K0F3E @12.5kHz
- 14K0F3E @20kHz
- 16K0F3E @25kHz
- 4FSK digital modulation
- 12.5kHz data only: 7K60FXD
- 12.5kHz data and voice: 7K60FXW
- Conducted/radiated emission
- operating: -36dBm @<1GHz; -30dBm @>1GHz
- standby: -57dBm @<1GHz, -47dBm @>1GHz
- Modulation limiting
- ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
- FM hum and noise
- 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
- Adjacent channel power
- 60dB @12.5kHz; 70dB @20/25kHz
- Audio response
- +1 to -3 dB
- Audio distortion
- <3%
- Digital vocoder type
- AMBE+2â„¢
Environmental
- Operating temperature
- -30°C to +60°C
- Storage temperature
- -40°C to +85°C
