CSS610-8P-2S+IN
96 000 AMD

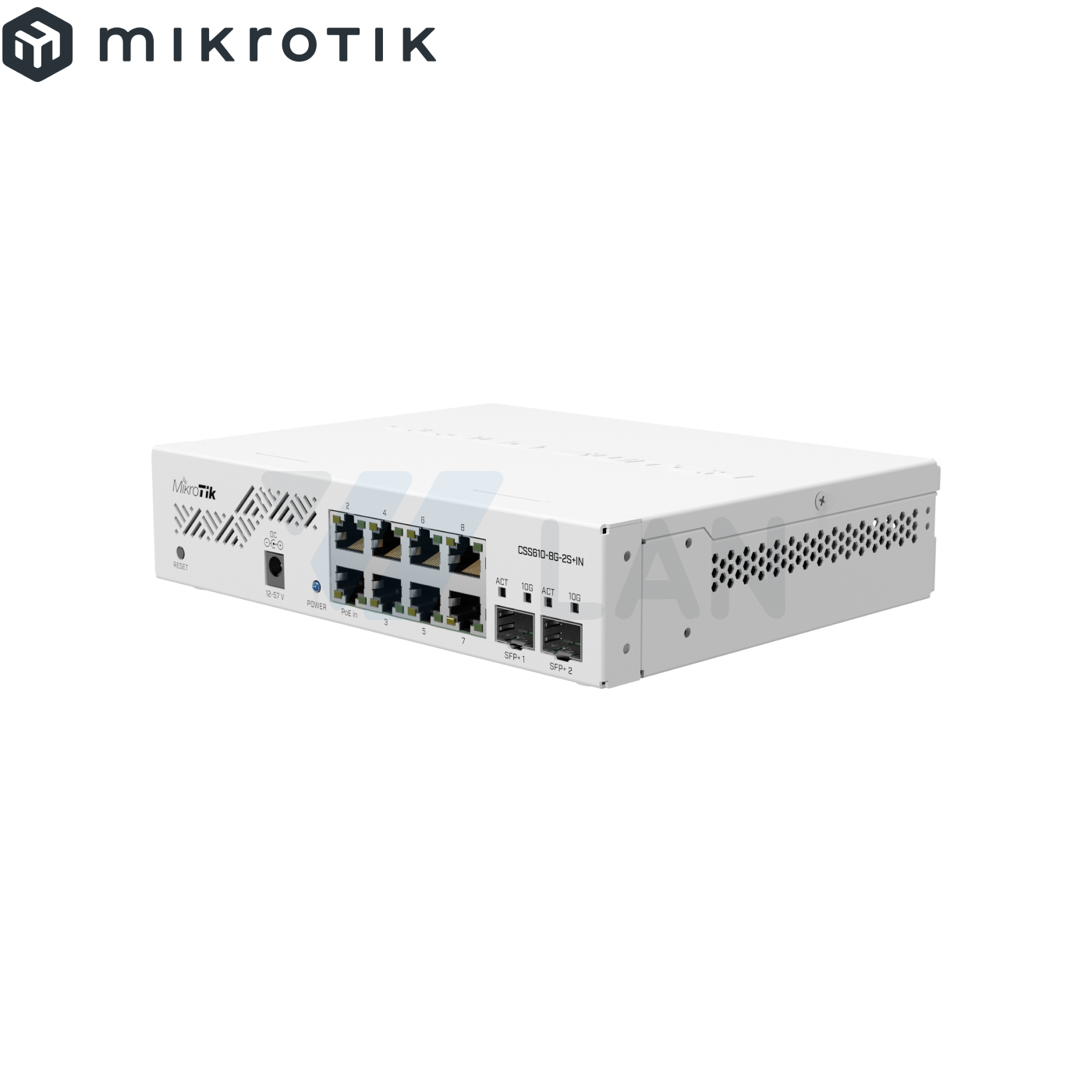

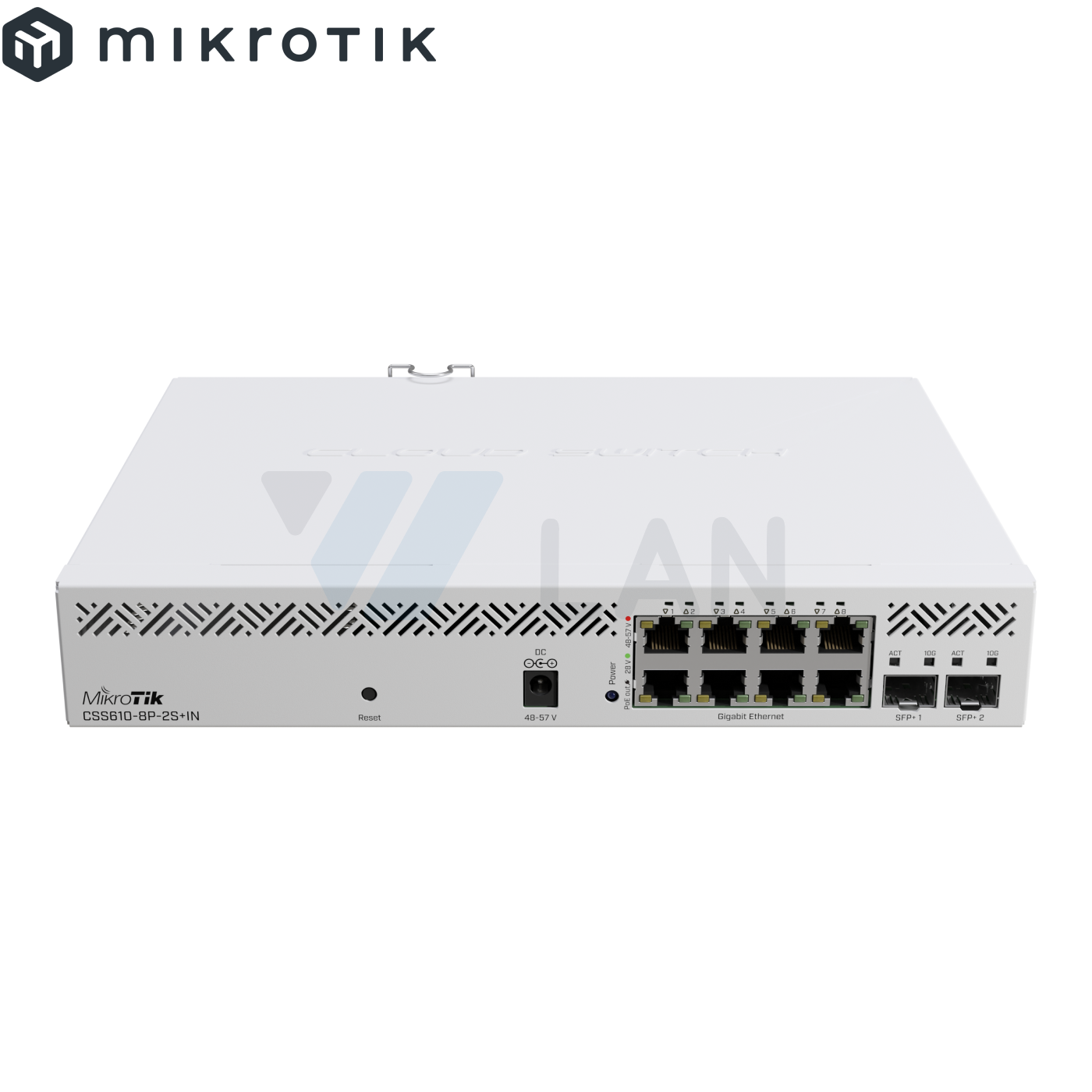

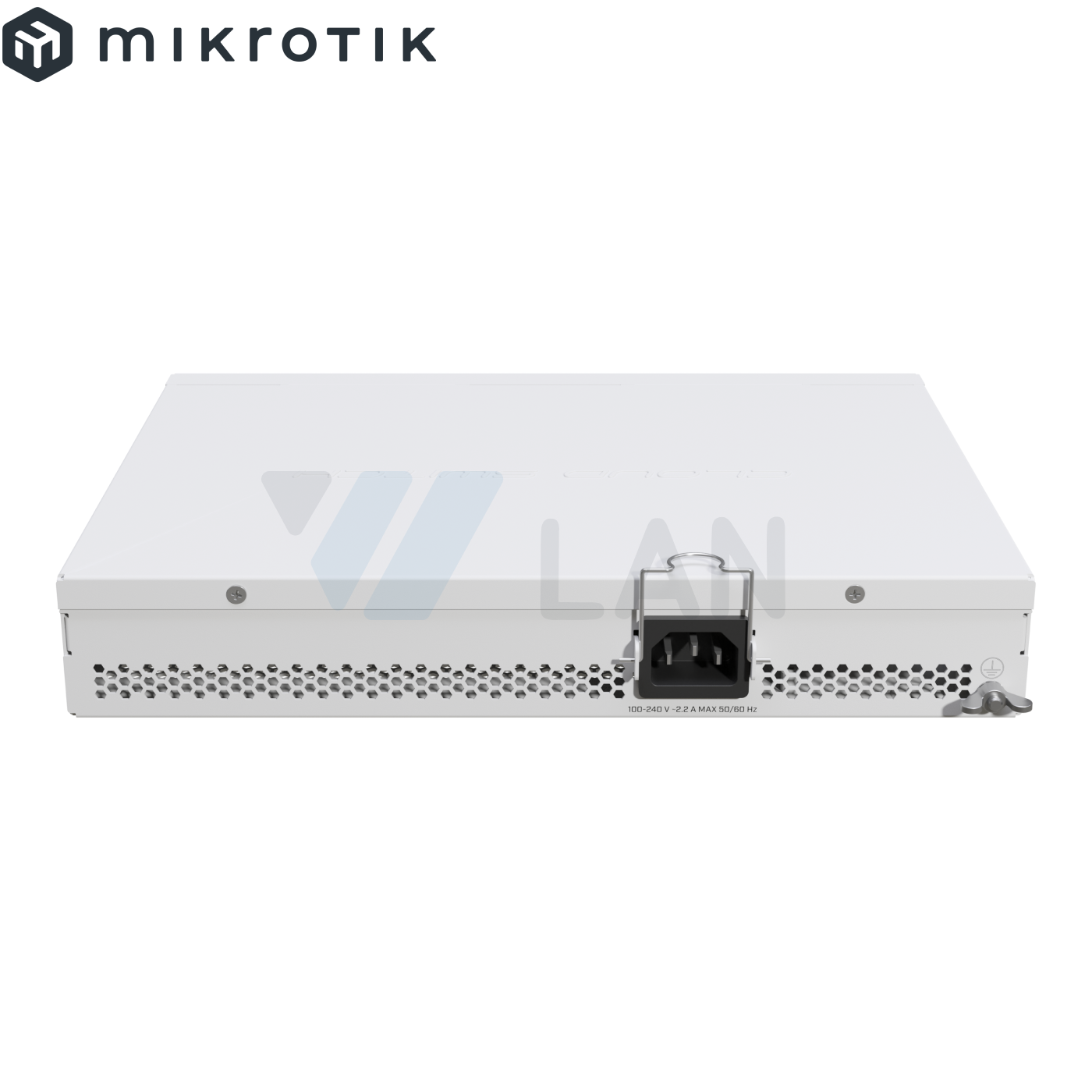

Cloud Smart Switch 610-8P-2S+IN with 8 x Gigabit 802.3af/at PoE-out ports, 2 x SFP+ cages, SwOS, desktop case, PSU
Specifications
| Details | |
|---|---|
| Product code | CSS610-8P-2S+IN |
| Switch chip model | 88E6193X |
| Dimensions | 272x208x44mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 48-57 V |
| Number of PSU slots | 1 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 162 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 625 mA |
| Total output power | 140 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
