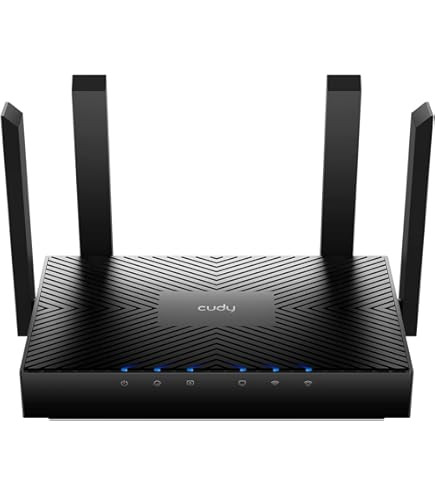

WR1500

AX1500 Mesh Wi-Fi 6 Router

О товаре

  • Model Version WR1500 1.0
    CPU CPU Details 1 GHz CPU
    Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
    DDR/RAM 128 MB (1 Gbit) DDR2
    Wireless 5 GHz Wi-Fi Speed 1201 Mbps
    2.4 GHz Wi-Fi Speed 300 Mbps
    5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
    2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
    Wi-Fi Antennas 4× Fixed
    FEM or PA/LNA
    • 5 GHz: 2× Internal
    • 2.4 GHz: 2× Internal
    Beamforming True
    Range Performance Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
    Wall Performance Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')

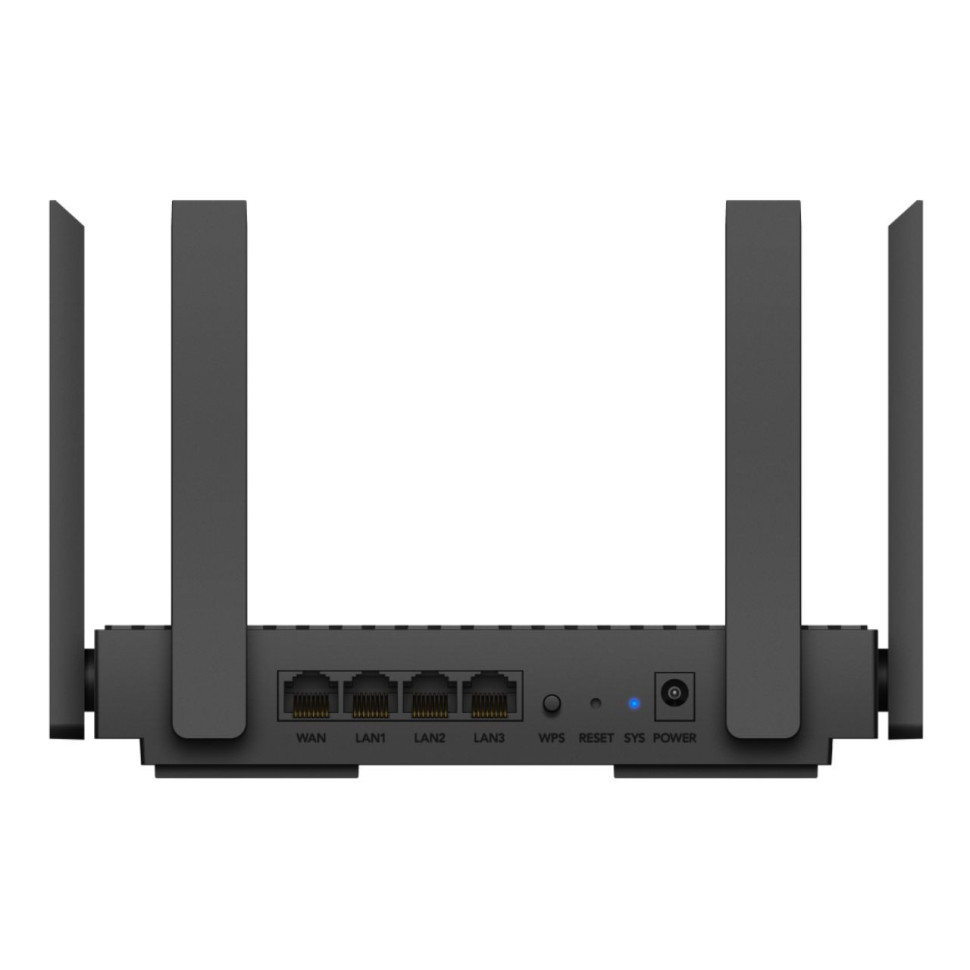

    Interfaces Gigabit RJ45 Ports 4
    Ethernet Notes 1× WAN port, the rest are LAN ports
    LED System
    Physical Buttons
    • WPS Button
    • Reset Button
    Power Input DC Jack
    Power Power Methods DC
    DC Input 12V 1A
    Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
    Max Power Consumption (W) 10W
    Reliability Environment
    • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Humidity: 10% ~ 90% non-condensing
    • Storage Humidity: 5% ~ 95% non-condensing
    Certifications FCC, CE
    Mechanical Installation
    • Desktop
    • Wall-mount
    Dimension 183.3×109×35 mm 7.22×4.29×1.38 inches
    Product Weight
    • EU: 220 g (7.76 oz.)
    • ZH: 224.6 g (7.92 oz.)
    Package Content
    • WR1500
    • Power Adapter
    • Ethernet Cable
    • Installation Guide
    Ordering Information Retail Package Weight
    • EU: 559 g (19.72 oz.)
    • BR: 549 g (19.37 oz.)
    • ZH: 519.3 g (18.32 oz.)
    Retail Package Dimension 240×230×60 mm 9.45×9.06×2.36 inches
    Units per Carton 20
    Carton Dimension 49.5×32.5×48 cm 19.49×12.8×18.9 inches
    Carton Gross Weight
    • EU: 12.1 kg (26.68 lbs)
    • BR: 12.1 kg (26.68 lbs)
    • ZH: 11.4 kg (25.13 lbs)
    Carton Net Weight
    • EU: 11.2 kg (24.69 lbs)
    • BR: 11.0 kg (24.25 lbs)
    • ZH: 10.5 kg (23.15 lbs)
