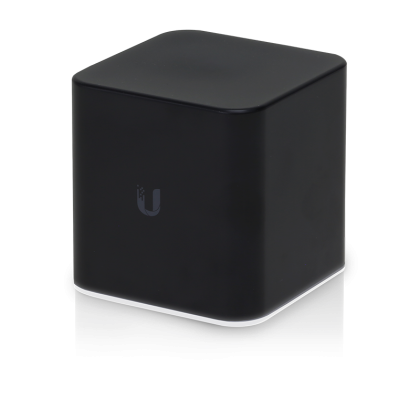

ACB-AC

High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.

О товаре

Mechanical
Dimensions 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5")
Weight 280 g (9.9 oz)
Hardware
Networking interface (4) GbE RJ45 ports
Management interface Ethernet WiFi
Power method Micro-USB adapter (Included) 24V DC, 0.83A PoE 24V In on Ethernet port 1
Power supply 24V
Supported voltage range 22—27V DC
Max. power consumption 8.5W
PoE Out Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port
Operating frequency 2.4 GHz/5 GHz
Antenna gain 2.4 GHz 5 GHz 4 dBi 5 dBi
Max. speeds 2.4 GHz 5 GHz 300 Mbps 866.7 Mbps
Max. TX power 22 dBm
ESD/EMP protection ± 24 kV Contact / Air
LED Status
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
NDAA Compliant Yes

Характеристики

Категории: WiFi AP Router
