RBwsAP-5Hac2nD

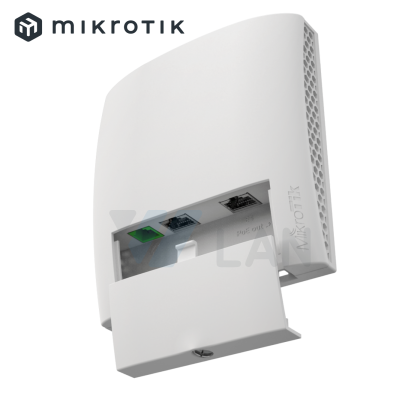

wsAP ac, In-wall Dual Concurrent 2.4GHz / 5GHz wireless access point with three Ethernet ports and telephone jack pass through for hospitality networks

О товаре

Specifications

Details
Product code RBwsAP-5Hac2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
Dimensions 112 x 126 x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 3
Wireless 5 GHz chip model QCA-9887
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC750

Ethernet

Details
10/100 Ethernet ports 3

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 20 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether3
PoE out Passive PoE
Max out per port output (input 18-30 V) 420 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 420 mA

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Other

Details
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63
