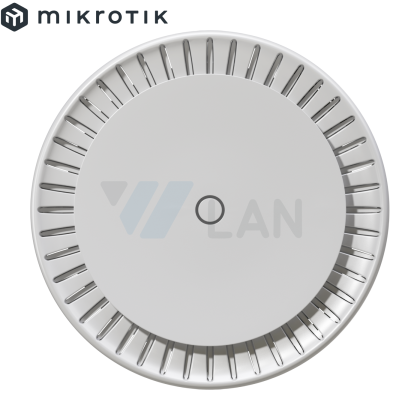

cAPGi-5HaxD2HaxD
О товаре
Specifications
| Details |
| Product code |
cAPGi-5HaxD2HaxD |
| Architecture |
ARM 64bit |
| CPU |
IPQ-6010 |
| CPU core count |
4 |
| CPU nominal frequency |
auto (864 - 1800) MHz |
| Switch chip model |
IPQ-6010 |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
1 GB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
574 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz |
6 |
| Wireless 2.4 GHz chip model |
QCN-5022 |
| Wireless 2.4 GHz generation |
Wi-Fi 6 |
| Wireless 5 GHz Max data rate |
1200 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz |
5.5 |
| Wireless 5 GHz chip model |
QCN-5052 |
| Wireless 5 GHz generation |
Wi-Fi 6 |
| WiFi speed |
AX1800 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
2 |
| Number of 1G Ethernet ports with PoE-out |
1 |
Powering
| Details |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
18-57 V |
| Max power consumption |
36 W |
| Max power consumption without attachments |
11 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
18-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether2 |
| PoE out |
Passive PoE up to 57V |
| Max out per port output (input 18-30 V) |
600 mA |
| Max out per port output (input 30-57 V) |
400 mA |
| Max total out (A) |
600 mA |
| Total output power |
19.2 |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
20 |
Other
| Details |
| CPU temperature monitor |
Yes |
| Mode button |
Yes |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
23 |
-100 |
| 11MBit/s |
23 |
-94 |
| 6MBit/s |
24 |
-96 |
| 54MBit/s |
21 |
-80 |
| MCS0 |
24 |
-96 |
| MCS7 |
20 |
-75 |
| MCS9 |
19 |
-70 |
| MCS11 |
17 |
-67 |
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
24 |
-96 |
| 54MBit/s |
21 |
-80 |
| MCS0 |
24 |
-96 |
| MCS7 |
20 |
-75 |
| MCS9 |
19 |
-70 |
| MCS11 |
17 |
-67 |
Характеристики
-
Brand
MikroTik
-
Wifi Installation
Ceiling
-
WiFi band
2.4 ГГц, 5 ГГц
-
WiFi standard
WiFi 6
-
Ethernet Speed
1G
Категории:
WiFi AP Router
