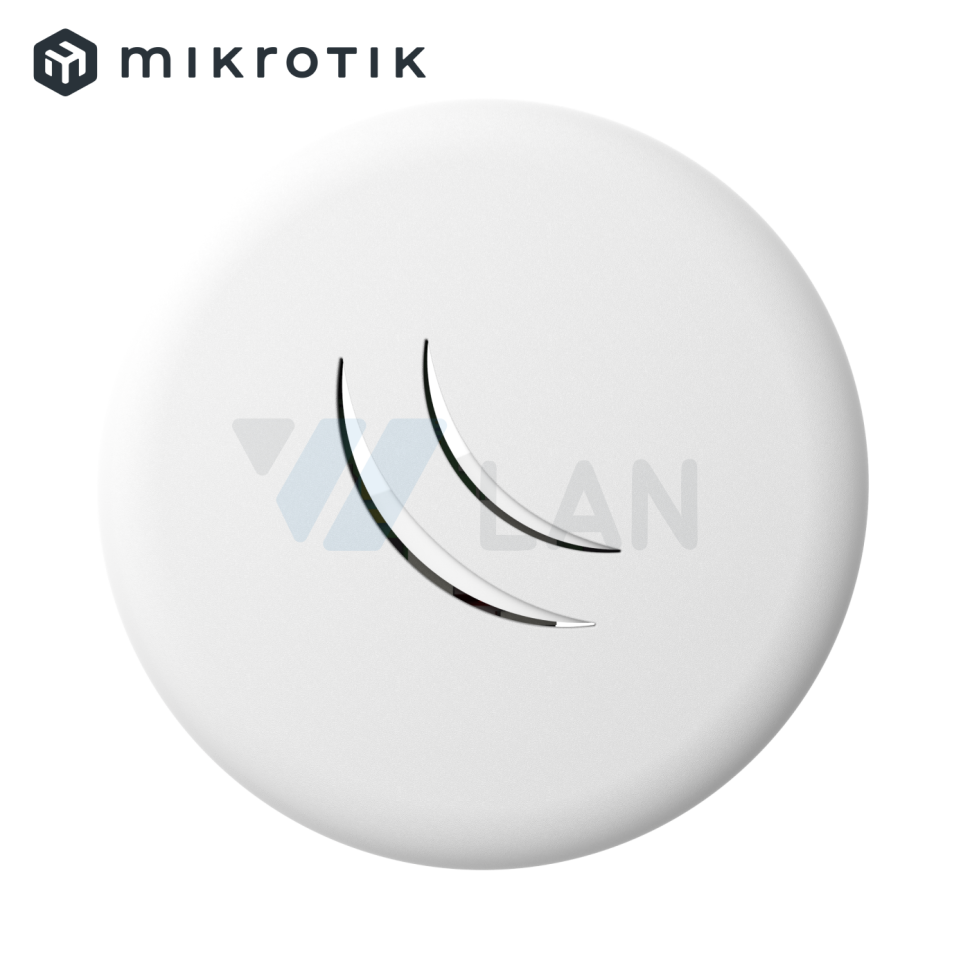

RBcAPL-2nD
О товаре
Specifications
| Details |
| Product code |
RBcAPL-2nD |
| Architecture |
MIPSBE |
| CPU |
QCA9533 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Powering
| Details |
| MicroUSB input Voltage |
5 V |
| Number of DC inputs |
2 (MicroUSB, PoE-IN) |
| Max power consumption |
4 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
10-60 V |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
Характеристики
-
Brand
MikroTik
-
Wifi Installation
Ceiling
-
WiFi band
2.4 ГГц
-
WiFi standard
WiFi 4
-
Ethernet Speed
10/100 Mbps
-
POE standart
802.3 af/at, Passive
Категории:
WiFi AP Router
