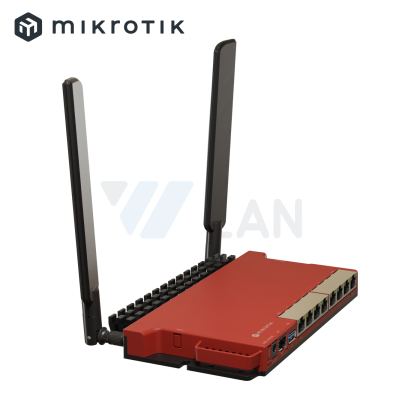

L009UiGS-2HaxD-IN

L009UiGS-2HaxD with dual core 800MHz CPU, 512MB RAM, 8 x Gbit LAN, 1 x 2.5 Gbit SFP port, 2.4GHz 802.11b/g/n/ax dual-chain wireless, 4dBi 2.4GHz external antennas, USB, desktop case, PSU, RouterOS L5

L009UiGS-2HaxD-IN

О товаре

Specifications

Details
Product code L009UiGS-2HaxD-IN
Architecture ARM
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model IPQ-5018
Wireless 2.4 GHz generation Wi-Fi 6
WiFi speed AX600

Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1

Fiber

Details
SFP ports 1 (2.5G supported)

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 24-56 V
Max power consumption 47 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V

PoE-out

Details
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1.0 A

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 30 -96
54MBit/s 28 -80
MCS0 30 -96
MCS7 27 -75
MCS9 25 -70
MCS11 23 -67

Характеристики

Категории: WiFi AP Router
