RBD53iG-5HacD2HnD
О товаре

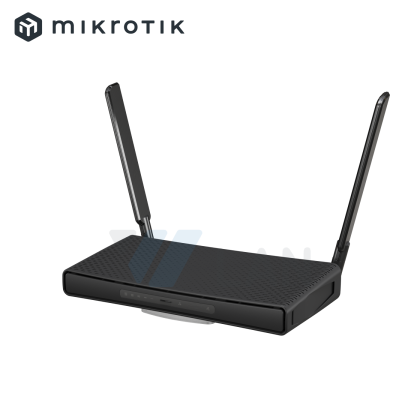

hAP ac³ with 4-core 716MHz CPU, 256MB RAM, 5 x Gbit LAN (PoE-out on port#5), two wireless interfaces (built-in 2.4Ghz 802.11b/g/n two chain, built-in 5Ghz 802.11ac two chain), 3dBi 2.4GHz external antenna, 5.5dBi 5GHz external antenna, tower/desktop case, USB, PSU, RouterOS L4
Specifications
| Details |
| Product code |
RBD53iG-5HacD2HnD |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4019 |
| CPU core count |
4 |
| CPU nominal frequency |
448-896 (auto) MHz |
| Switch chip model |
IPQ-4019 |
| Dimensions |
251 x 129 x 39 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
256 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
| Suggested price |
$109.00 |
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
3 |
| Wireless 2.4 GHz chip model |
IPQ-4019 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
5.5 |
| Wireless 5 GHz chip model |
IPQ-4019 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| WiFi speed |
AC1200 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
| Number of 1G Ethernet ports with PoE-out |
1 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Powering
| Details |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-28 V |
| Max power consumption |
30 W |
| Max power consumption without attachments |
12 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
18-28 V |
PoE-out
| Details |
| PoE-out ports |
Ether5 |
| PoE out |
Passive PoE |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
Other
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
25 |
-100 |
| 11MBit/s |
25 |
-94 |
| 6MBit/s |
26 |
-96 |
| 54MBit/s |
23 |
-78 |
| MCS0 |
26 |
-96 |
| MCS7 |
22 |
-73 |
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
26 |
-96 |
| 54MBit/s |
22 |
-80 |
| MCS0 |
26 |
-96 |
| MCS7 |
21 |
-75 |
| MCS9 |
19 |
-70 |
Характеристики
-
Brand
MikroTik
-
Wifi Installation
Desktop
-
Ethernet Speed
1G
Категории:
WiFi AP Router
