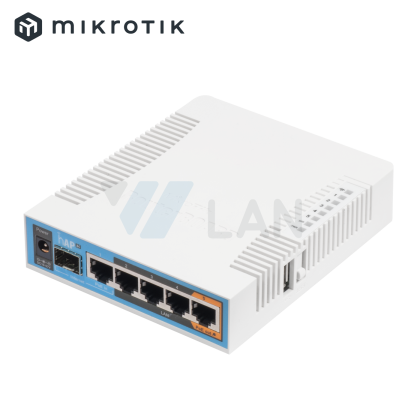

RB962UiGS-5HacT2HnT
О товаре
Specifications
| Details |
| Product code |
RB962UiGS-5HacT2HnT |
| Architecture |
MIPSBE |
| CPU |
QCA9558 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Switch chip model |
QCA8337 |
| Dimensions |
114 x 137 x 29mm |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
450 Mbit/s |
| Wireless 2.4 GHz number of chains |
3 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
QCA9558 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
1300 Mbit/s |
| Wireless 5 GHz number of chains |
3 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2 |
| Wireless 5 GHz chip model |
QCA9880 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| WiFi speed |
AC1750 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Fiber
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Powering
| Details |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
11-57 V |
| Max power consumption |
17 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
11-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether5 |
| PoE out |
Passive PoE |
| Max out per port output (input 18-30 V) |
700 mA |
| Max out per port output (input 30-57 V) |
350 mA |
| Max total out (A) |
700 mA |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Beeper |
Yes |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
29 |
-100 |
| 11MBit/s |
29 |
-94 |
| 6MBit/s |
29 |
-96 |
| 54MBit/s |
26 |
-81 |
| MCS0 |
29 |
-96 |
| MCS7 |
25 |
-77 |
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
28 |
-96 |
| 54MBit/s |
25 |
-81 |
| MCS0 |
28 |
-96 |
| MCS7 |
24 |
-77 |
| MCS9 |
21 |
-72 |
Характеристики
-
Brand
MikroTik
-
Wifi Installation
Desktop
-
WiFi band
2.4 ГГц, 5 ГГц
-
WiFi standard
WiFi 4, WiFi 5
-
Ethernet Speed
1G
-
POE standart
In, Out, Passive
Категории:
WiFi AP Router
