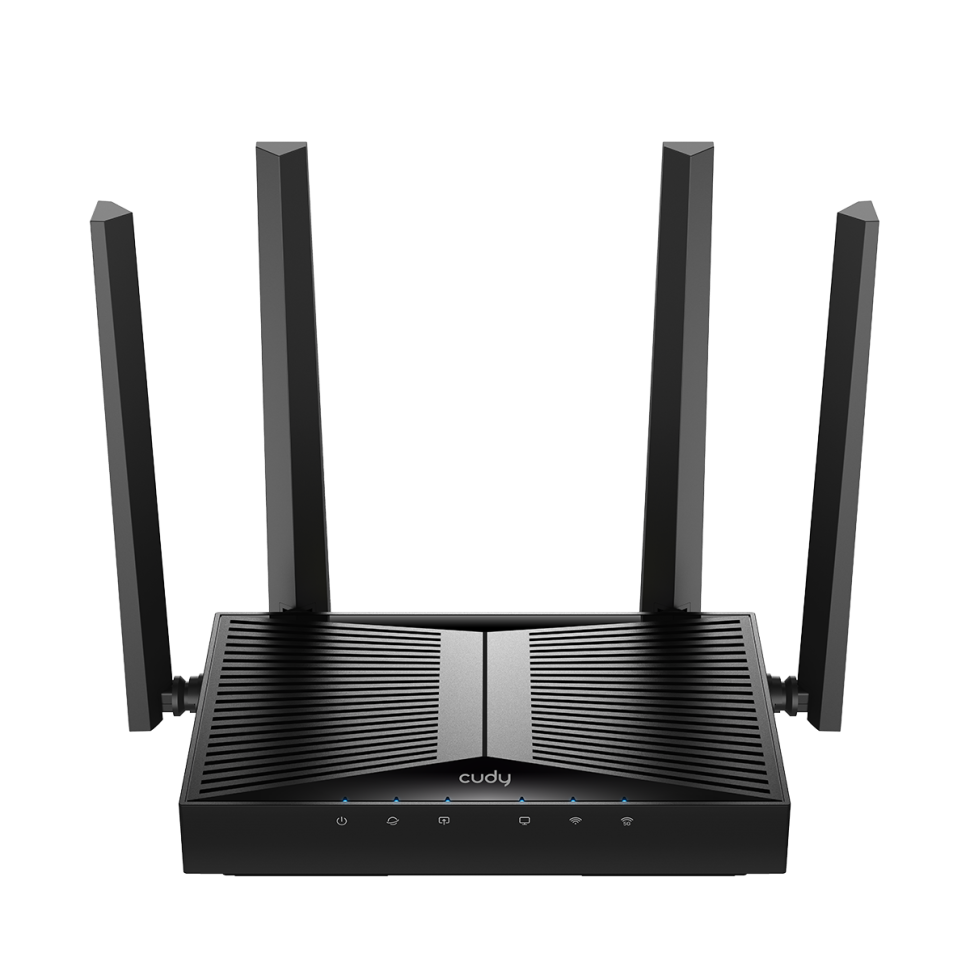

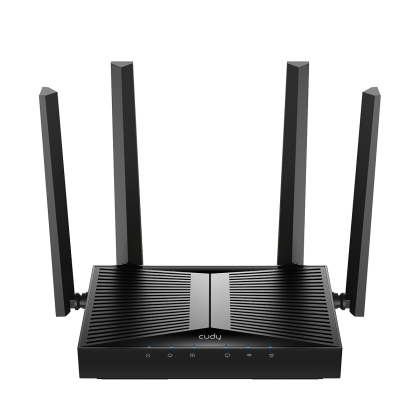

WR3600H

BE3600 2.5G Wi-Fi 7 Router

О товаре

  • Model Version WR3600H 1.0
    CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7
    Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
    DDR/RAM 512 MB (4 Gbit) DDR3L
    Wireless 5 GHz Wi-Fi Speed 2882 Mbps
    2.4 GHz Wi-Fi Speed 688 Mbps
    5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
    2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
    Wi-Fi Antennas 4× Fixed
    5 GHz Antenna Gain Max 5.5dBi
    2.4 GHz Antenna Gain Max 5.4dBi
    FEM or PA/LNA
    • 5 GHz: 2× External
    • 2.4 GHz: 2× Internal
    Beamforming True
    Range Performance Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
    Wall Performance Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
    Interfaces 2.5G RJ45 Ports 1
    Gigabit RJ45 Ports 4
    Ethernet Notes The 2.5G port is WAN port, the Gigabit ports are LAN ports
    LED
    • Power
    • Internet
    • WAN
    • LAN
    • 2.4 GHz Wi-Fi
    • 5 GHz Wi-Fi
    Physical Buttons
    • WPS Button
    • Reset Button
    Power Input DC Jack
    Power Power Methods DC
    DC Input 12V 1A
    Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
    Max Power Consumption (W) 10W
    Reliability Environment
    • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Humidity: 10% ~ 90% non-condensing
    • Storage Humidity: 5% ~ 95% non-condensing
    Certifications FCC, CE
    Mechanical Installation
    • Desktop
    • Wall-mount
    Dimension Device: 183.3×109×38 mm 7.22×4.29×1.5 inches Each Antenna: 175 mm 6.89 inches
    Product Weight 332.0 g (11.71 oz.)
    Package Content
    • WR3600H
    • Power Adapter
    • Ethernet Cable
    • Installation Guide
    Ordering Information Retail Package Weight EU: 762.0 g (26.88 oz.)
    Retail Package Dimension 330×256×60 mm 12.99×10.08×2.36 inches
    Units per Carton 10
    Carton Dimension 52.8×31.7×34.7 cm 20.79×12.48×13.66 inches
    Carton Gross Weight EU: 8.5 kg (18.74 lbs)
    Carton Net Weight EU: 7.6 kg (16.76 lbs)
