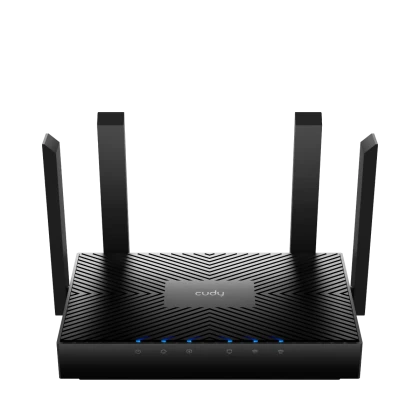

WR3000

AX3000 Gigabit Mesh Wi-Fi 6 Router

О товаре

  • Model Version WR3000 1.0
    CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
    Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
    DDR/RAM 256 MB (2 Gbit) DDR3
    Wireless 5 GHz Wi-Fi Speed 2402 Mbps
    2.4 GHz Wi-Fi Speed 574 Mbps
    5 GHz Wi-Fi Streams 2T2R (2×2 MIMO) with an Extra Stream
    2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
    Wi-Fi Antennas 4× Fixed
    5 GHz Antenna Gain Max 4.8dBi
    2.4 GHz Antenna Gain Max 3.4dBi
    FEM or PA/LNA
    • 5 GHz: 3× Internal
    • 2.4 GHz: 2× Internal
    Beamforming True
    Range Performance Max: 200 m (656 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
    Wall Performance Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
    Interfaces Gigabit RJ45 Ports 4
    Ethernet Notes 1× WAN port, the rest are LAN ports
    LED
    • System
    • Internet
    • WAN
    • LAN
    • 2.4 GHz Wi-Fi
    • 5 GHz Wi-Fi
    Physical Buttons
    • WPS Button
    • Reset Button
    Power Input DC Jack
    Power Power Methods DC
    DC Input 12V 1A
    Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
    Max Power Consumption (W) 11.5w
    Idle Power Consumption (W) 4.2w
    Reliability Environment
    • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Humidity: 10% ~ 90% non-condensing
    • Storage Humidity: 5% ~ 95% non-condensing
    Certifications FCC, CE
    Mechanical Installation
    • Desktop
    • Wall-mount
    Dimension 183.3×109×35 mm 7.22×4.29×1.38 inches
    Product Weight
    • BR: 295 g (10.41 oz.)
    • ZH: 295.8 g (10.43 oz.)
    Package Content
    • WR3000
    • Power Adapter
    • Ethernet Cable
    • Installation Guide
    Ordering Information Retail Package Weight
    • BR: 589 g (20.78 oz.)
    • EU: 614 g (21.66 oz.)
    • UK: 626 g (22.08 oz.)
    • US: 615 g (21.69 oz.)
    • ZH: 589.2 g (20.78 oz.)
    Retail Package Dimension 240×230×60 mm 9.45×9.06×2.36 inches
    Units per Carton 20
    Carton Dimension 49.5×32.5×48 cm 19.49×12.8×18.9 inches
    Carton Gross Weight
    • BR: 12.9 kg (28.44 lbs)
    • EU: 13.5 kg (29.76 lbs)
    • UK: 13.6 kg (29.98 lbs)
    • US: 13.1 kg (28.88 lbs)
    • ZH: 12.8 kg (28.22 lbs)
    Carton Net Weight
    • BR: 11.8 kg (26.01 lbs)
    • EU: 12.3 kg (27.12 lbs)
    • UK: 12.5 kg (27.56 lbs)
    • US: 12.3 kg (27.12 lbs)
    • ZH: 11.8 kg (26.01 lbs)

Характеристики

Категории: WiFi AP Router
