RBLHG-5HPnD-XL

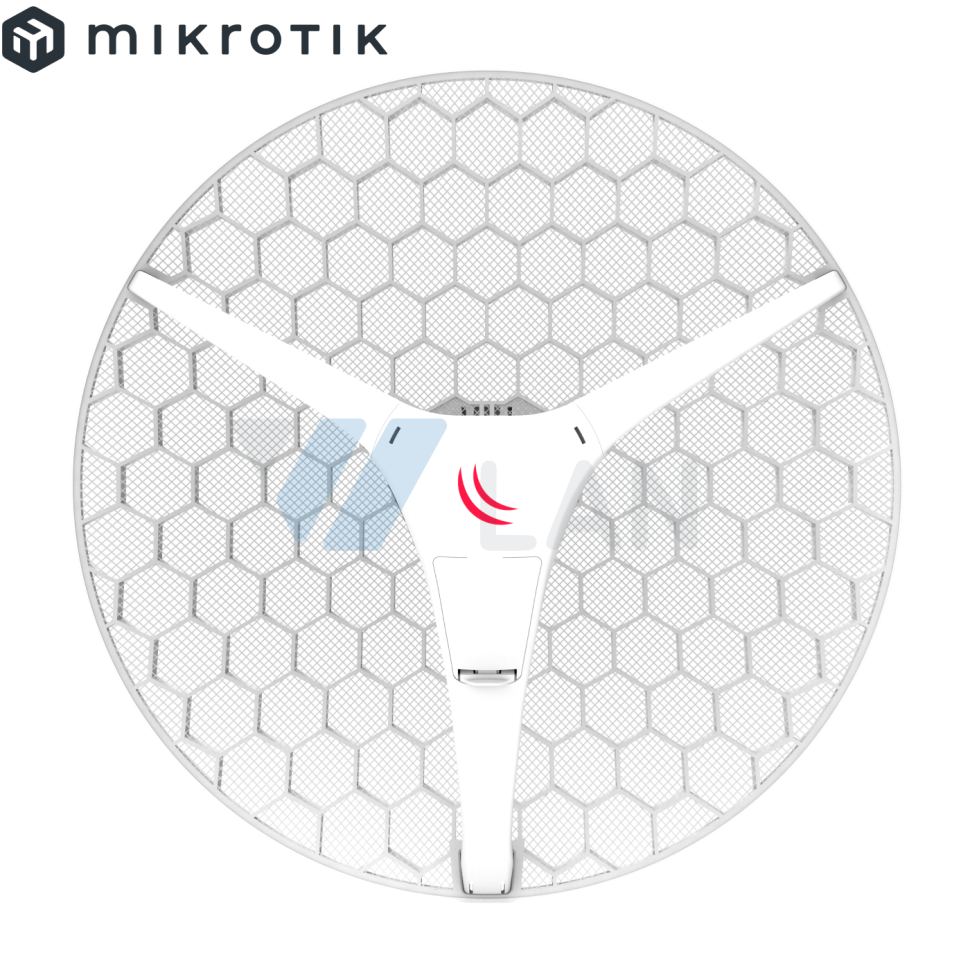

LHG XL HP5 4pack (LHG XL HP5 with 27dBi 5GHz antenna, Dual Chain High Power 802.11an wireless, 600MHz CPU, 64MB RAM, 1x LAN, POE, PSU, RouterOS L3) – all four antennas in single box

О товаре

Specifications

Details
Product code RBLHG-5HPnD-XL
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions Ø 550 x 245 mm;
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 27
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -80
MCS0 28 -96
MCS7 24 -75
