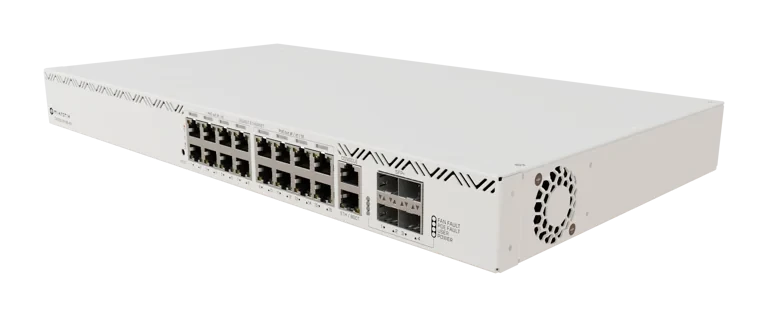

CRS320-8P-8B-4S+RM

• Architecture ARM 32bit
• CPU 98DX226S
• CPU core count 2
• CPU nominal frequency 800 MHz
• Switch chip model 98DX226S
• RouterOS license 5
• Operating System RouterOS v7 / SwitchOS
• Size of RAM 256 MB
• Storage size 32 MB
• Storage type FLASH
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -10°C to 50°C

Powering

• Number of AC inputs 1
• AC input range 100-240
• Number of PSU slots 2
• Frequency (Hz) 50-60
• Max power consumption 600W (1150W with additional PSU)
• Max power consumption without attachments 36 W
• Cooling type 3 fans

PoE-out

• PoE-out ports Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
• PoE out 802.3af/at/bt
• High voltage PoE-Out current limit 560 (af/at) / 1667 (bt) mA
• Max total out (A) 17.82 A
• Total output current 17.82
• Total output power 963

Ethernet

• 10/100/1000 Ethernet ports 17
• Number of 1G Ethernet ports with PoE-out 16

Fiber

• SFP+ ports 4

Peripherals

• Serial console port RJ45

Other

• CPU temperature monitor Yes
• PCB temperature monitor Yes
• Voltage Monitor Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 20
