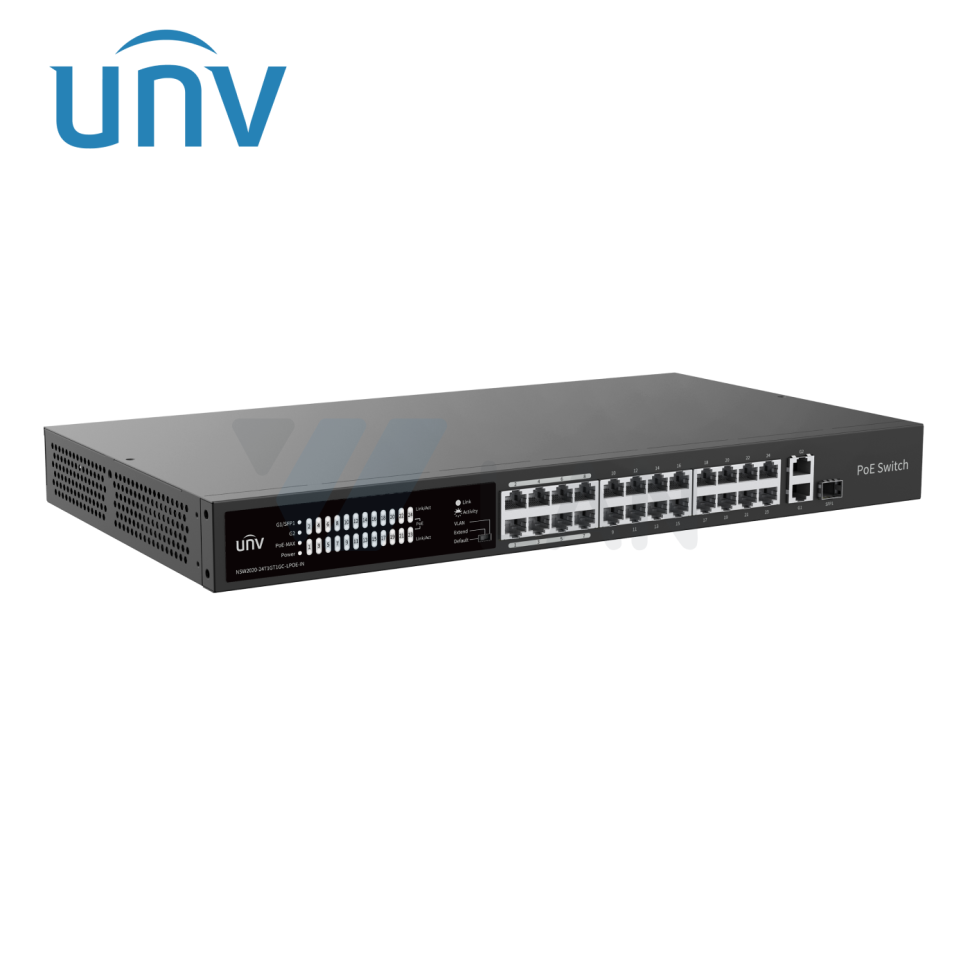

NSW2020-24T1GT1GC-POE-IN

Unmanaged Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode) • Support port traffic control • Support for secure mode, all downlink ports can communicate only with uplink ports • Up to 250m transmission distance on surveillance mode • Support buffer optimization • All metal housing, safe and...

О товаре

POE Switch, 24FE POE + 2FE Uplink 250M 370W PoE Switch
NSW2020-24T1GT1GC-LPOE-IN
Hardware Specification
Ports Type 24×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity 8.8 Gbps
Packet Buffer 4 M bit
MAC 16K
Forwarding performance 6.55Mpps
Prior Ports 1 to 8
Cooling Fans 1
Dimensions (W×D×H) 440*250*44mm
Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Max.Power 250W
Weight 2.15KG
Operating humidity 10%～90% (non-condensing)
Working Mode Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time
Hardware Specification
PoE Mode 802.3at/af , ModeB :(4/5+, 7/8-)

Характеристики

Категории: Switches
