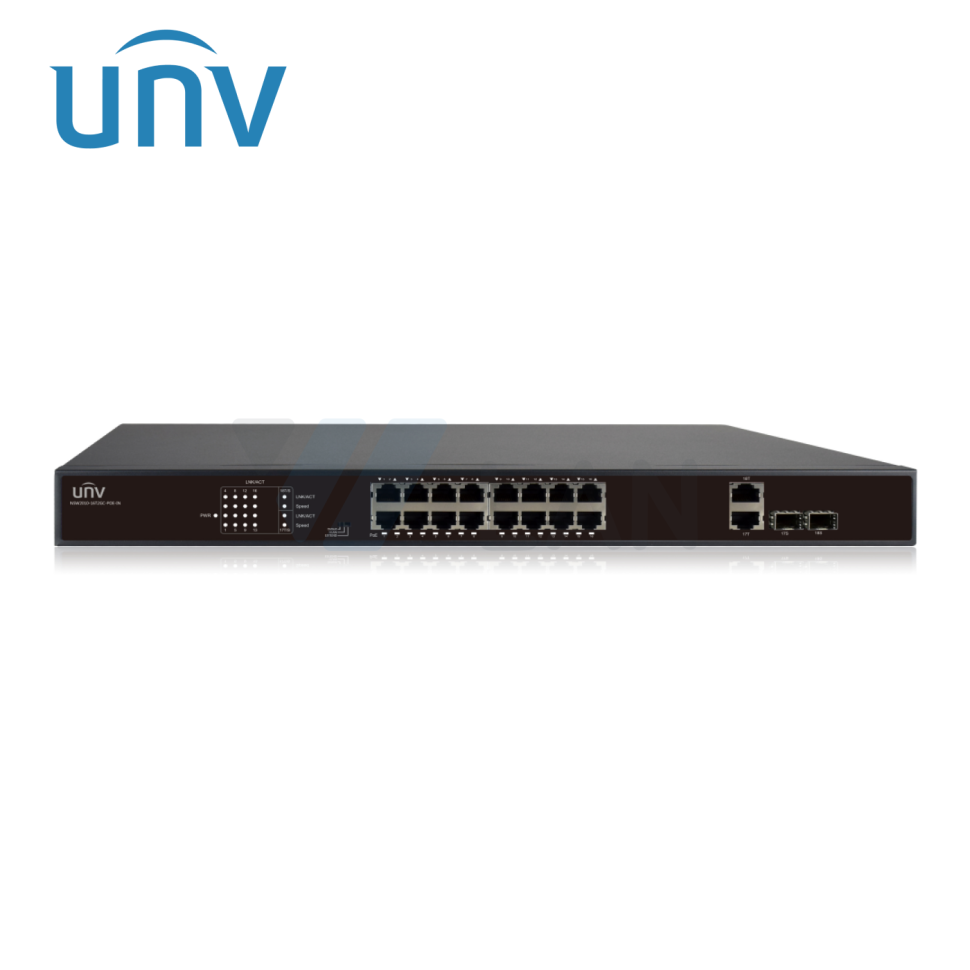

NSW2010-16T2GC-PoE-IN

Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode) • Support port traffic control • Support for secure mode, all downlink ports can communicate only with uplink ports • Up to 250m transmission distance on surveillance mode • Support buffer optimization • All metal housing, safe and reliable

О товаре

POE Switch, 16FE POE + 2GE/SFP Uplink 250M 250W PoE Switch
NSW2010-16T2GC-POE-IN
Hardware Specification
Ports Type 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity 7.2 Gbps
Packet Buffer 4 M bit
Forwarding performance 5.36Mpps
MAC 16K
Weight <4.2 kg
Cooling Fans 2
Mean Time Between Failure (MTBF) > 50000 hours
Dimensions (W×D×H) 440mm x 207mm x 45mm(17.3"×8.1"×1.8")
Operating humidity 10%～90% (non-condensing)
Working Mode Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters, VLAN (Secure mode): Downlink ports can communicate only with uplink ports.

Характеристики

Категории: Switches
