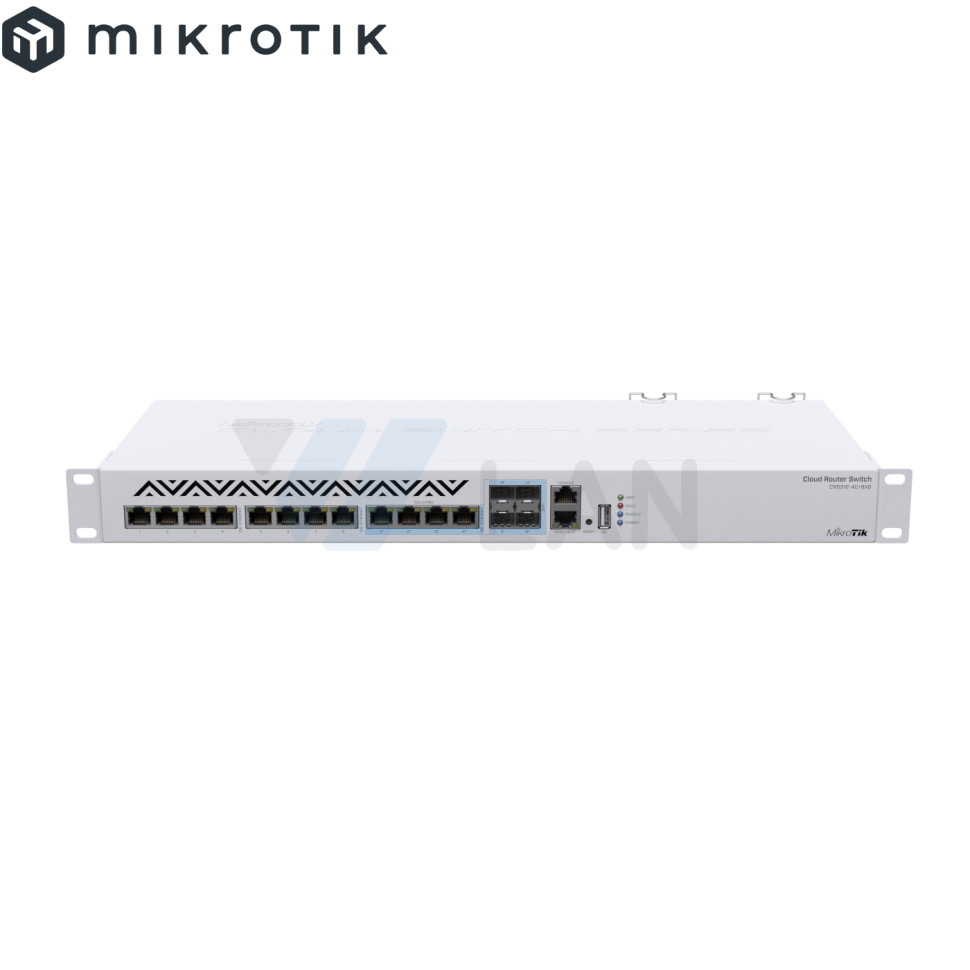

CRS312-4C+8XG-RM

Cloud Router Switch 312-4C+8XG-RM with 8 x 1G/2.5G/5G/10G RJ45 Ethernet LAN, 4x Combo ports (1G/2.5G/5G/10G RJ45 Ethernet LAN or 10G SFP+), 1x LAN port for management, RouterOS L5 or SwitchOS (dual boot), 1U rackmount enclosure, Dual redundant PSU

О товаре

Specifications

Details
Product code CRS312-4C+8XG-RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX8212
Dimensions 443 x 183 x 44 mm
RouterOS license 5
Operating System RouterOS v7 / SwitchOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 70°C

Powering

Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 50-60
Max power consumption 60 W
Cooling type 4 fans

Ethernet

Details
10/100 Ethernet ports 1
Number of Combo 10G Ethernet/ SFP+ ports 4
Number of 1G/2.5G/5G/10G Ethernet ports 8

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
