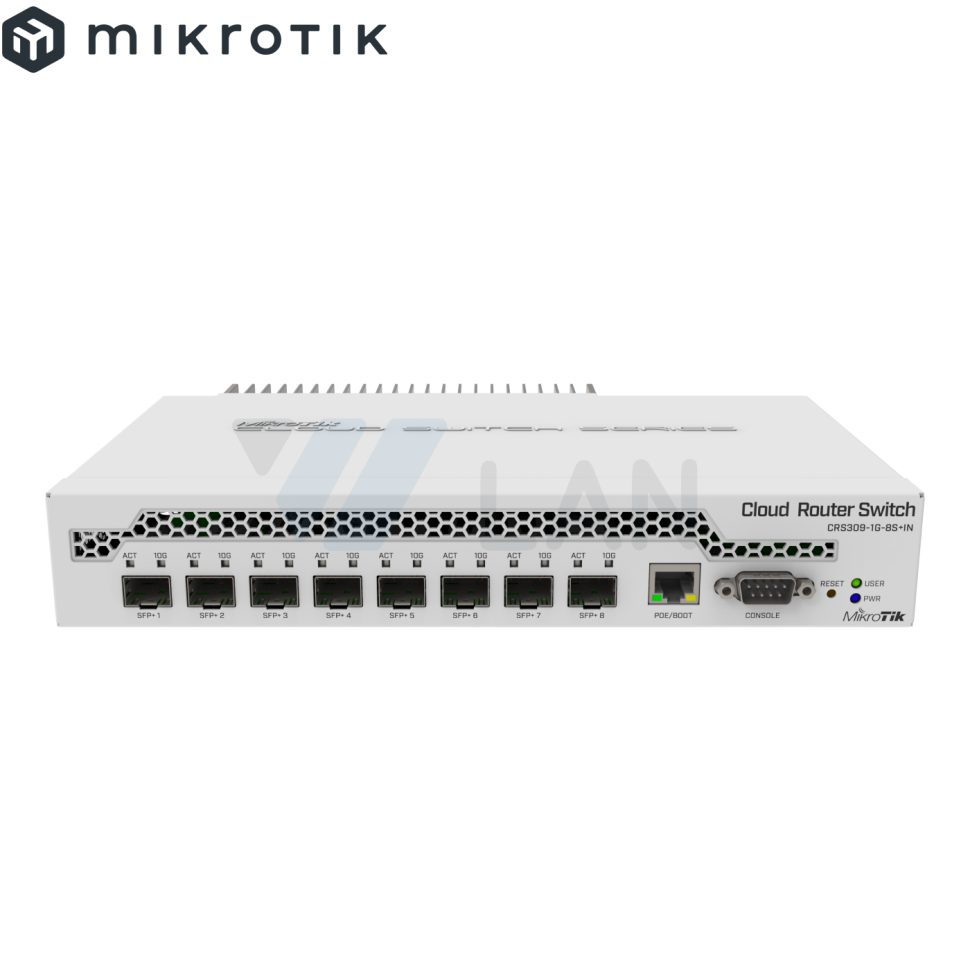

CRS309-1G-8S+IN

Cloud Router Switch CRS309-1G-8S+IN with Dual core 800MHz CPU, 512MB RAM, 1xGigabit LAN, 8xSFP+ cages, RouterOS L5 or SwitchOS (dual boot), passive desktop case, rackmount ears, PSU

О товаре

Specifications

Details
Product code CRS309-1G-8S+IN
Architecture ARM 32bit
CPU 98DX8208
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 98DX8208
Dimensions 272 x 191 x 44 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 23 W
Max power consumption without attachments 17 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 8

Peripherals

Details
Serial console port RS232

Other

Details
CPU temperature monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Характеристики

Категории: Switches
