CCR2216-1G-12XS-2XQ

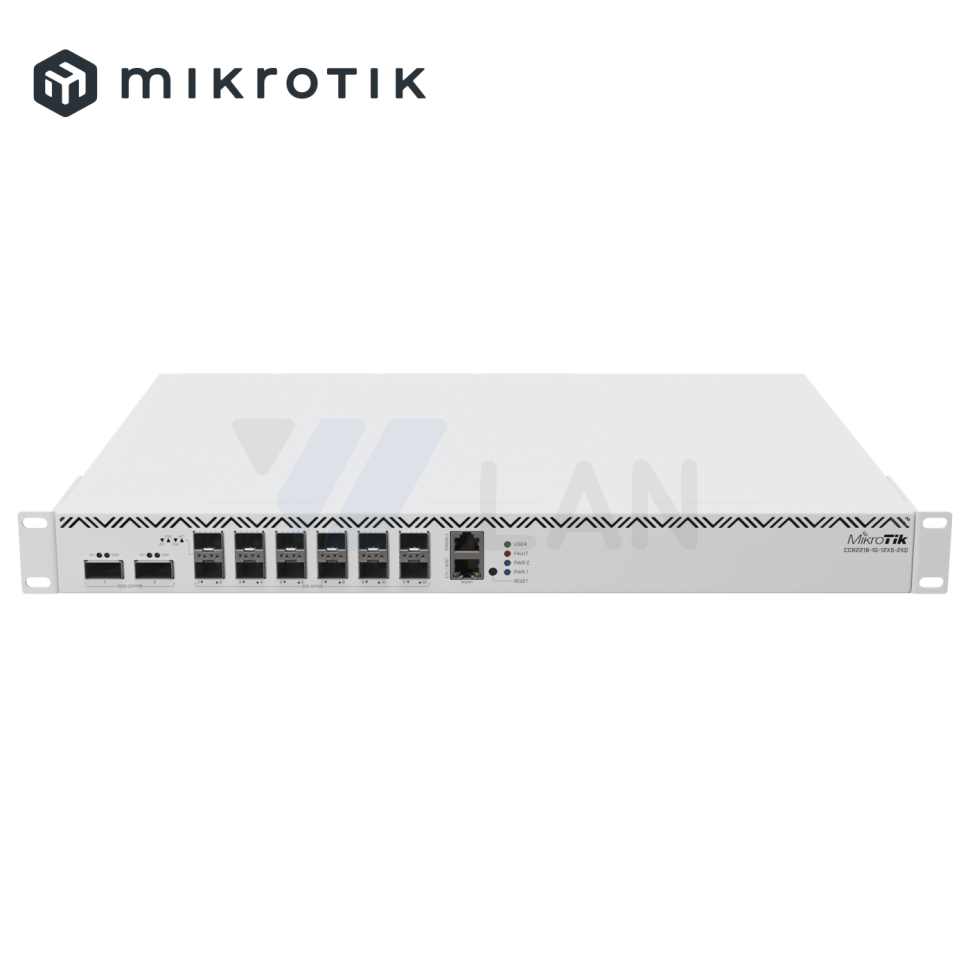

Cloud Core Router 2216-1G-12XS-2XQ with Amazon Annapurna Labs Alpine v3 AL73400 CPU (16-cores, 2GHz per core) and Marvell Prestera Aldrin2 switch-chip, 16GB RAM, 2x100G QSFP cages, 14x25G SFP28 cages, 1xGbit LAN, 2xM.2 SATA slots, RouterOS L6, 1U rackmount case, Dual-redundant hot-swap PSU's

О товаре

Specifications

Details
Product code CCR2216-1G-12XS-2XQ
Architecture ARM 64bit
CPU AL73400
CPU core count 16
CPU nominal frequency 2000 MHz
Switch chip model 98DX8525
Dimensions 443 x 367 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 128 W
Max power consumption without attachments 80 W
Cooling type 4 fans

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
Number of 25G SFP28 ports 12
Number of 100G QSFP28 ports 2

Peripherals

Details
Serial console port RJ45
Number of M.2 slots 2

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20

Характеристики

Категории: Routeres
