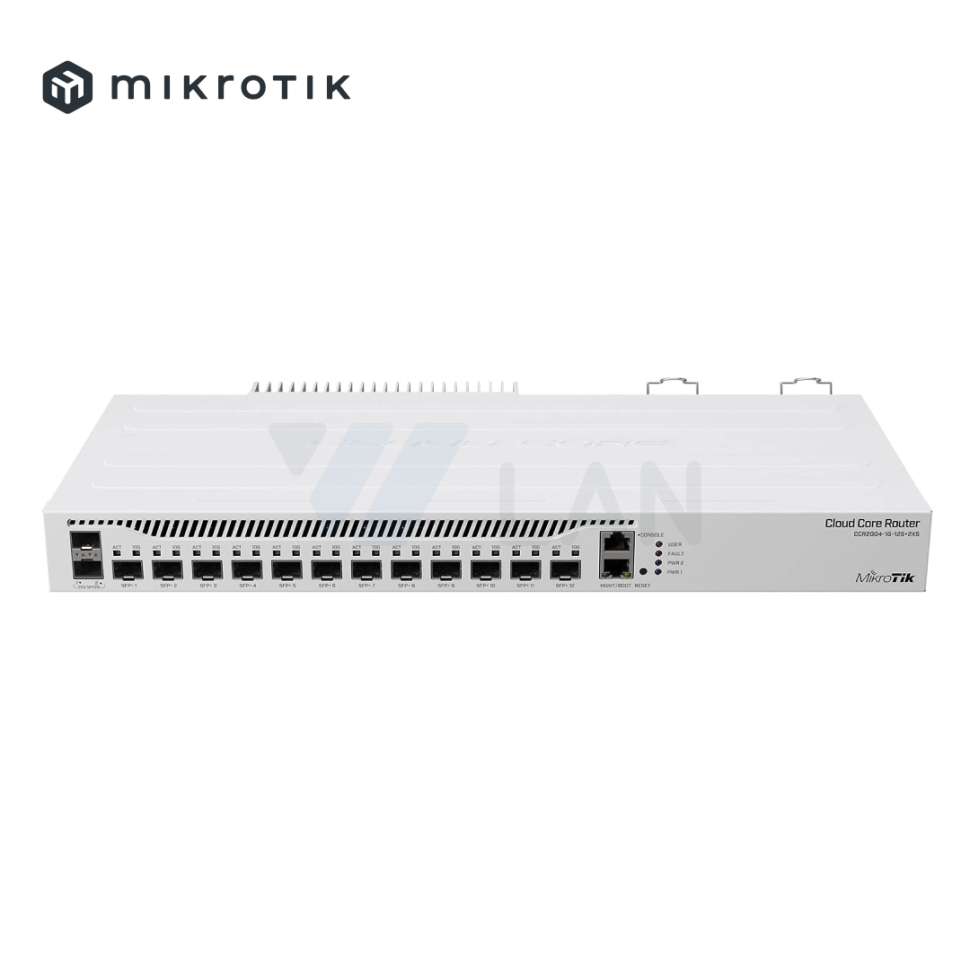

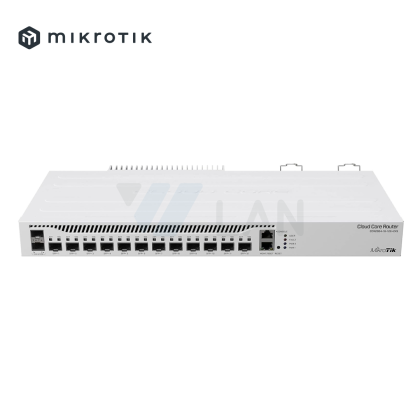

CCR2004-1G-12S+2XS

Cloud Core Router 2004-1G-12S+2XS with Annapurna Alpine AL32400 Cortex A57 CPU (4-cores, 1.7GHz per core), 4GB RAM, 1x Gigabit RJ45 port, 12x 10G SFP+ cages, 2 x 25G SFP28 cages, RouterOS L6, 1U rackmount case, Dual PSU

О товаре

Specifications

Details
Product code CCR2004-1G-12S+2XS
Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1700 MHz
Dimensions 443 x 224 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 60 W
Max power consumption without attachments 31 W
Cooling type 2 fans

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 12
Number of 25G SFP28 ports 2

Peripherals

Details
Serial console port RJ45

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
