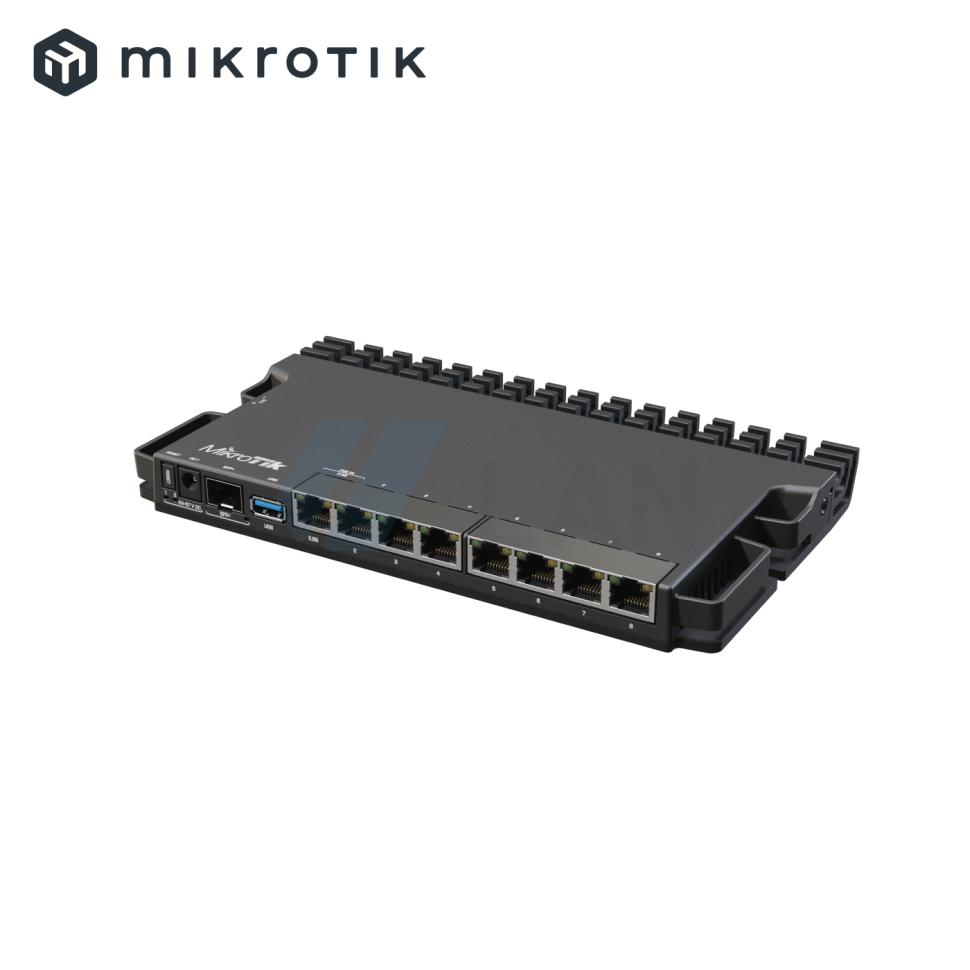

RB5009UG+S+IN

RouterBORD 5009UG+S+ with Marvell Armada ARMv8 CPU (4-cores, 1.4GHz per core), 1GB of DDR4 RAM, 1GB NAND storage, 1x 2.5Gbit LAN, 7x 1Gbit LAN, 1x SFP+ port, RouterOS L5, metal desktop case, PSU

О товаре

Specifications

Details
Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 25 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V

Ethernet

Details
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Other

Details
CPU temperature monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
