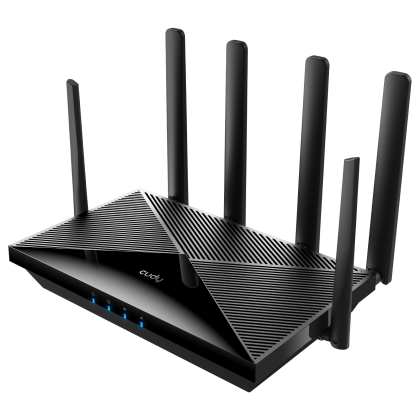

P5

A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features complete Qualcomm solutions, dual SIM slots, and a high-capacity AX3000 WiFi 6. 5G Rel. 16 with Max 3.4 Gbps DL 1 UL/DL 4CA, 4×4 MIMO 4-Stream Dual-Band Wi-Fi 6 2402 Mbps + 574 Mbps Wi-Fi 2 4× Gigabit Ethernet Ports 2× Nano SIM Slots Detachable Cellular Antennas Cudy Mesh, VPN Server and Client Cudy App, Cloud Control

О товаре

Model Version P5 1.0
CPU CPU Details 1.0 GHz Dual-core, ARM Cortex-A53
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Cellular Cellular Standards
  • 5G Rel. 16
  • DL 4G Cat. 19 / UL 4G Cat. 18
Cellular Antennas 4× Detachable
Detachable Cellular Antennas Connector SMA Female
SIM Options 2× Nano SIM Slots
Available Versions EU, US
EU Version Cellular Suitable Region Europe, Middle East, Africa, Asia-Pacific (Exc. JP, CN), Brazil
Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78
LTE-FDD: B1/3/5/7/8/20/28/32/71
LTE-TDD: B38/40/41/42/43
WCDMA: B1/5/8
US Version Cellular Suitable Region Global
Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
LTE-TDD: B34/38/39/40/41/42/43/48; LAA: B46
WCDMA: B1/2/4/5/8/19
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
Beamforming True
FEM or PA/LNA
  • 5 GHz: 2× External
  • 2.4 GHz: 2× External
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces Physical Buttons
  • WPS Button
  • Reset Button
Gigabit RJ45 Ports 4
Ethernet Notes 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LED
  • Power
  • Internet
  • Wi-Fi
  • Cellular
Power Input DC Jack
Power Power Methods DC
DC Input 12V 2.5A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 2.5A DC
Reliability EMC ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications FCC, CE
Mechanical Dimension 253×152.5×48.2 mm
9.96×6×1.9 inches
Product Weight 670 g (23.63 oz.)
Installation
  • Desktop
  • Wall-mount
Package Content
  • P5
  • Detachable Antennas
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • US: 1243 g (43.85 oz.)
  • EU: 1231 g (43.42 oz.)
Retail Package Dimension 393×250×60 mm
15.47×9.84×2.36 inches
Units per Carton 10
Carton Net Weight
  • US: 12.4 kg (27.34 lbs)
  • EU: 12.3 kg (27.12 lbs)
Carton Gross Weight
  • US: 13.15 kg (28.99 lbs)
  • EU: 13.3 kg (29.32 lbs)
Carton Dimension 40.8×33×52.5 cm
16.06×12.99×20.67 inches
