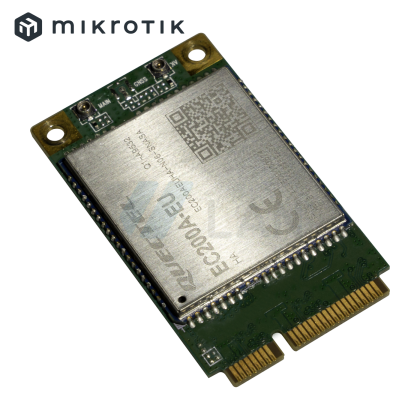

R11eL-EC200A-EU

An extra cost-effective upgrade of our previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now! Also, it supports the popular B28 band.

О товаре

Specifications

Details
Product code R11eL-EC200A-EU
Tested ambient temperature -35°C to 70°C

Powering

Details
Max power consumption 3 W

Mobile

Details
2G Category Class12
2G bands 3 (1800MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41n (2500MHz)
TAC 86314105

Certification & Approvals

Details
Certification CE, ROHS
IP IP00
