Specifications
| Details |
| Product code |
RBwAPGR-5HacD2HnD&R11e-LTE |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4018 |
| CPU core count |
4 |
| CPU nominal frequency |
716 MHz |
| Switch chip model |
IPQ-4018 |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-30°C to 50°C |
| IPsec hardware acceleration |
Yes |
|
|
Powering
| Details |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-57 V |
| Max power consumption |
14 W |
| Max power consumption without attachments |
10 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
18-57 V |
Mobile
| Details |
| 2G Category |
Class12 |
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) |
| TAC |
35565409 |
Wireless specifications
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
IPQ-4018 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2.5 |
| Wireless 5 GHz chip model |
IPQ-4018 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
2 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Micro SIM) |
| MiniPCI-e slots |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-100 |
| 11MBit/s |
22 |
-94 |
| 6MBit/s |
23 |
-95 |
| 54MBit/s |
19 |
-78 |
| MCS0 |
23 |
-95 |
| MCS7 |
18 |
-73 |
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
24 |
-95 |
| 54MBit/s |
20 |
-78 |
| MCS0 |
24 |
-95 |
| MCS7 |
19 |
-73 |
| MCS9 |
17 |
-68 |

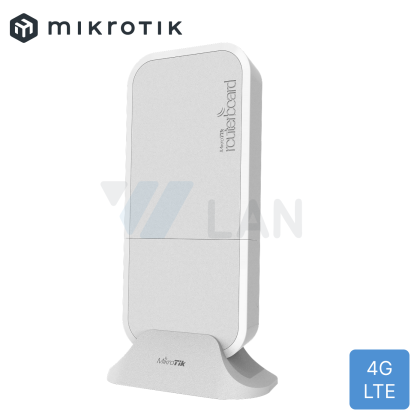

wAP ac LTE6 Kit with four core 710MHz CPU, 128MB RAM, 2x Gigabit LAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless with integrated antenna, built-in 5Ghz 802.11an/ac Dual Chain wireless with integrated antenna, LTE CAT6 modem for International & United States bands 1/2/3/5/7/8/12/17/20/25/26/38/39/40/41n, internal LTE antenna, RouterOS L4, outdoor enclosure, PSU, Gigabit PoE injector
