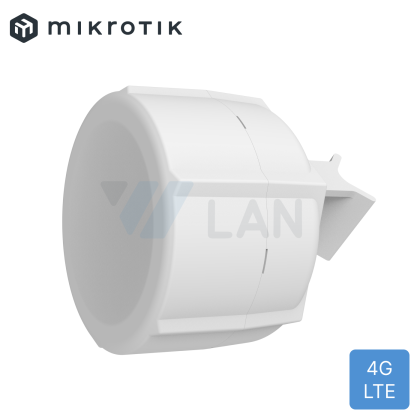

RBSXTR&R11e-LTE

SXT LTE kit, 2G/3G/4G/LTE CPE, 9dBi 60 degree antenna, 2x Ethernet ports (one with PoE out), two SIM, 650MHz CPU, 64MB RAM, enclosure, PoE and PSU (RouterOS L3), International bands

О товаре

Specifications

Details
Product code RBSXTR&R11e-LTE
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
Dimensions 140 x 140 x 103 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 50°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 22 W
Max power consumption without attachments 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 600 mA

Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
TAC 35565409

Ethernet

Details
10/100 Ethernet ports 2

Peripherals

Details
Number of SIM slots 2 Modem (Micro SIM)
MiniPCI-e slots 1

Other

Details
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54
