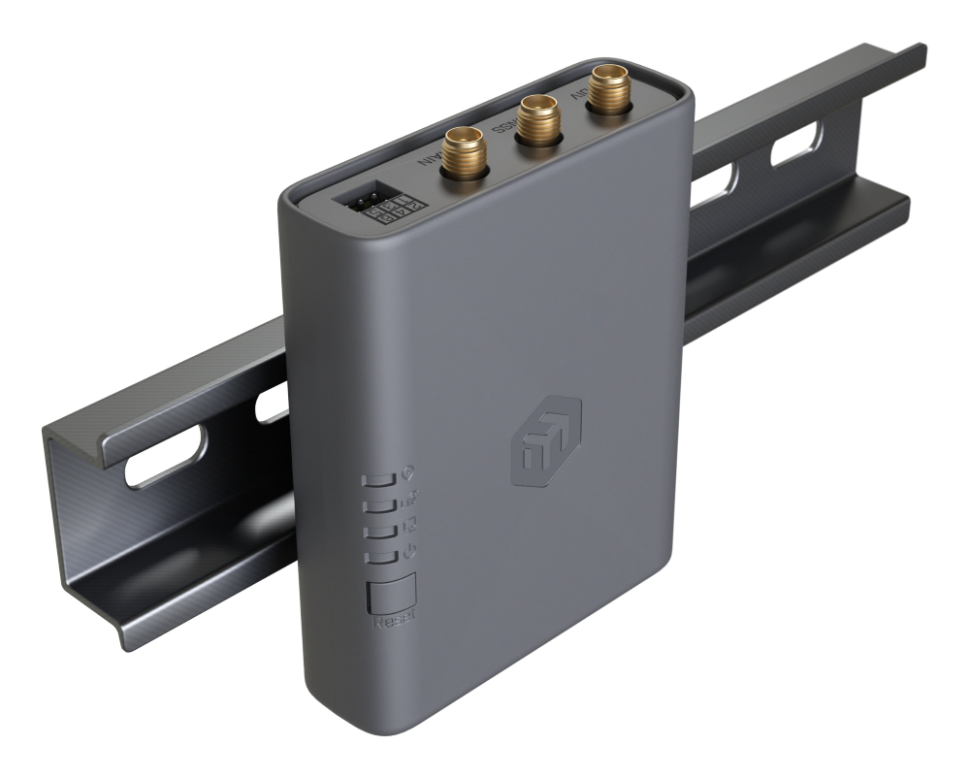

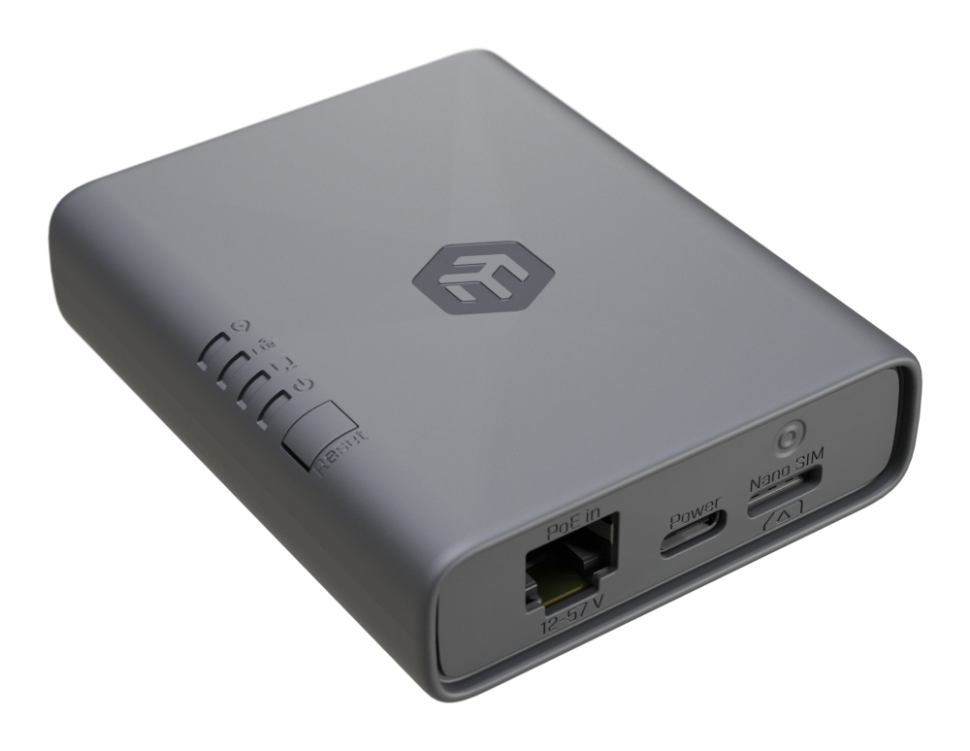

KNOT Embedded LTE4

Specifications

• Product code EC25-EU&KNe
• Suggested price $79.00
• Architecture ARM 32bit
• CPU CPU ARM 32-bit Cortex A7 up to 1.2 GHz
• CPU core count 1
• CPU nominal frequency 1200 MHz
• RouterOS license 3
• Operating System RouterOS v7
• Size of RAM 256 MB
• Storage size 512 MB
• Storage type NAND
• MTBF Approximately 100'000 hours at 25C
• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 2 (PoE-IN, USB-C)
• Max power consumption 7 W
• Max power consumption without attachments 7 W
• PoE in 802.3af/at
• Cooling type Passive
• PoE in input Voltage 12-57 V
• USB C input Voltage 5 V

Mobile

• 2G Category Class12
• 2G bands 3 (1800MHz) 8 (900MHz)
• 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands 1 (2100MHz) 8 (900MHz)
• LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
• MIMO DL 2x2
• MIMO UL 1x1
• LTE FDD bands 1 (2100MHz) 3 (1800MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28A (700 MHz)
• LTE TDD bands 38 (2600MHz) 40 (2300MHz) 41 (2500MHz)
• TAC 86554604

Ethernet

• 10/100/1000 Ethernet ports 1
• Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1

Peripherals

• Number of SIM slots 1 Modem (Nano SIM)

Other

• CPU temperature monitor Yes
• Bluetooth version 5.1
• GPS RF connector type SMA
• eSIM Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 20
