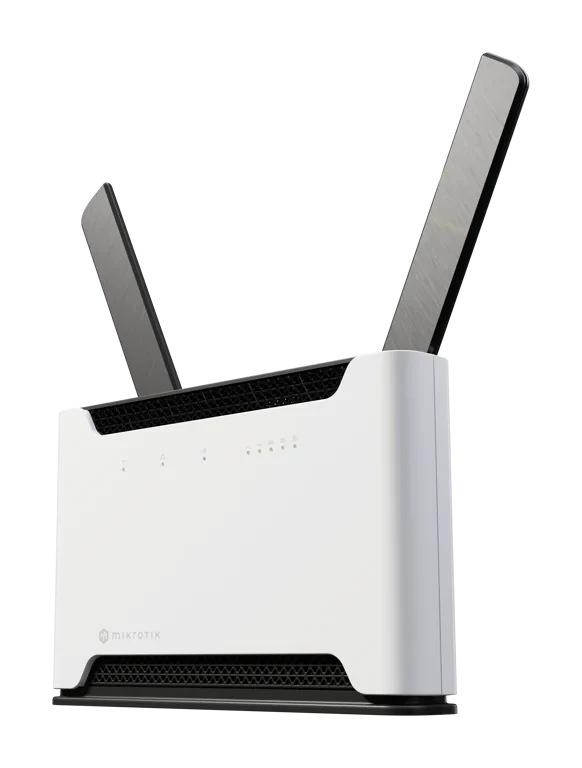

Chateau 5G R17 ax

Specifications

• Product code S53UG+5HaxD2HaxD-TC&RG650E-EU
• Suggested price $349.00
• Architecture ARM 64bit
• CPU IPQ-6010
• CPU core count 4
• CPU nominal frequency 864-1800 MHz
• CPU Threads count 4
• Switch chip model IPQ-6010
• RouterOS license 4
• Operating System RouterOS v7
• Size of RAM 1 GB
• Storage size 128 MB
• Storage type NAND
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 1 (DC jack)
• DC jack input Voltage 12-28 V
• Max power consumption 27 W
• Max power consumption without attachments 18 W
• Cooling type Passive

Mobile

• 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands 1 (2100MHz) 5 (850MHz) 8 (900MHz)
• LTE Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink)
• MIMO DL 4x4
• MIMO UL 1x1 (5G SA MIMO UL 2x2)
• LTE FDD bands 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz) 32 (1500 MHz)
• LTE TDD bands 38 (2600MHz) 41 (2500MHz) 42 (3500MHz) 40 (2300MHz) 43 (3700MHz)
• 5G NSA FDD bands 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 26 (850 MHz) 28 (700 MHz) 67 (700 MHz) 75 (1500 MHz) 76 (1500 MHz)
• 5G NSA TDD bands 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 77 (3700 MHz) 78 (3500 MHz)
• 5G SA FDD bands 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 26 (850 MHz) 28 (700 MHz) 67 (700 MHz) 75 (1500 MHz) 76 (1500 MHz)
• 5G SA TDD bands 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 77 (3700 MHz) 78 (3500 MHz)
• TAC 86896506

Wireless specifications

• Wireless 2.4 GHz Max data rate 574 Mbit/s
• Wireless 2.4 GHz Number of chains 2
• Wireless 2.4 GHz standards 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz 3
• Wireless 2.4 GHz chip model QCN-5022
• Wireless 2.4 GHz generation Wi-Fi 6
• Wireless 5 GHz Max data rate 1200 Mbit/s
• Wireless 5 GHz Number of chains 2
• Wireless 5 GHz standards 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz 6
• Wireless 5 GHz chip model QCN-5052
• Wireless 5 GHz generation Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports 4
• Number of 2.5G Ethernet ports 1

Peripherals

• Number of SIM slots 1 Modem (Micro SIM)
• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB type A
• Max USB current (A) 1.5

Other

• CPU temperature monitor Yes
• PCB temperature monitor Yes
• Voltage Monitor Yes
• Mode button Yes
• eSIM Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 20
