VS3024AU

23 600 dram

0 dram

PWM, Charge 30A, 12/24VDC Auto, Max. PV open circuit voltage 50V

В наличии

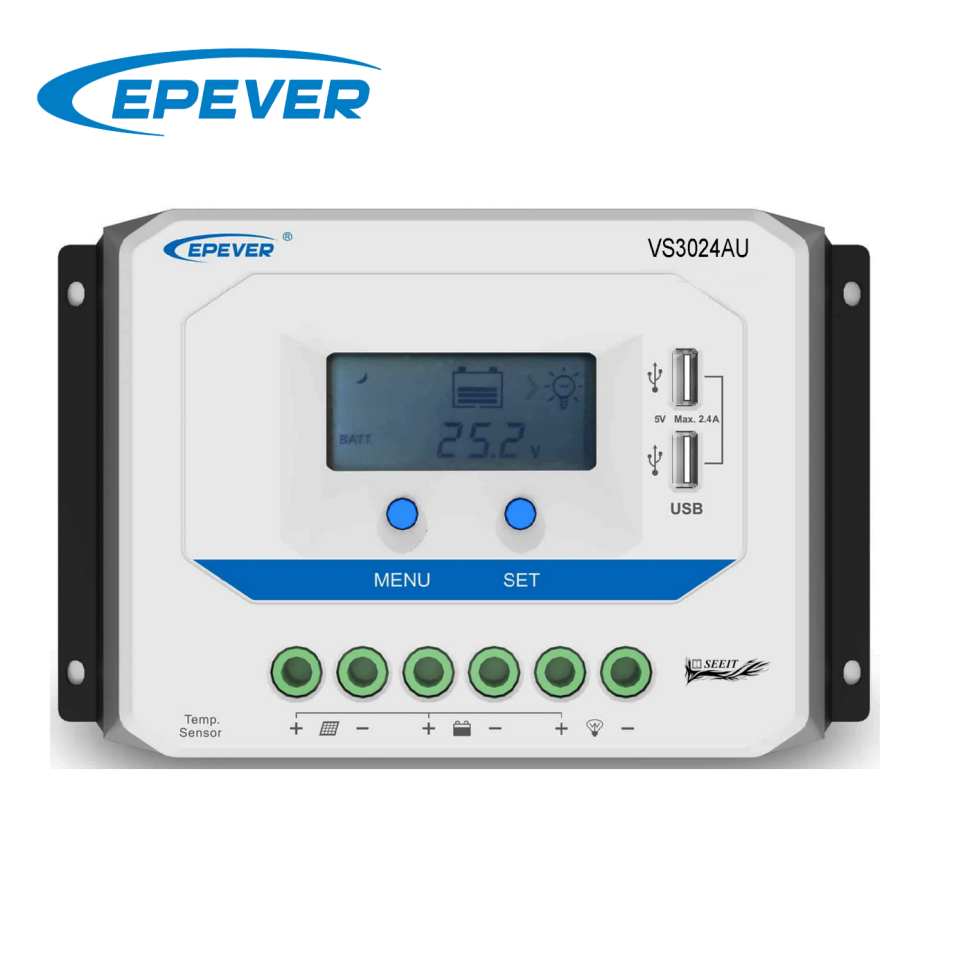

EPever VS3024AU (24V/30A PWM) – Key Specs

Type: PWM (Pulse Width Modulation) with dual USB outputs (5V/3A).
System Voltage: 24V DC (auto-detects 12V/24V batteries).
Max Solar Input: Voltage (Vmp): 50V (max 100V open0circuit, Voc). Current: 30A (continuous).
Battery Compatibility: Lead-Acid (Flooded/Gel/Sealed) + LiFePO4 (selectable profile). Charging Voltage: Adjustable (e.g., 29.2V bulk for 24V LiFePO4).
Load Control: DC Load Output: 30A (max), programmable (timer/light sensor/manual). Low-Voltage Disconnect (LVD): Adjustable (e.g., 21V for 24V systems).
USB Outputs: 2x 5V/3A ports (for phones, lights).
Efficiency: ~95-98% (PWM).
Protections: Overcharge/over-discharge, reverse polarity, short-circuit, over-temperature.
Display: LCD screen (voltage, current, battery SOC, error codes).
Temperature Compensation: Automatic (sensor included).
Enclosure: IP32 (indoor use).
Dimensions/Weight: 210 x 130 x 60 mm / 1.2 kg.
Typical Use: Medium 24V systems (e.g., cabins, RVs, telecom) with ≤720W panels (24V) or ≤360W (12V).
Note: Not MPPT – For higher efficiency, consider EPever’s Tracer BN series. Supports Lithium but lacks advanced BMS communication.
