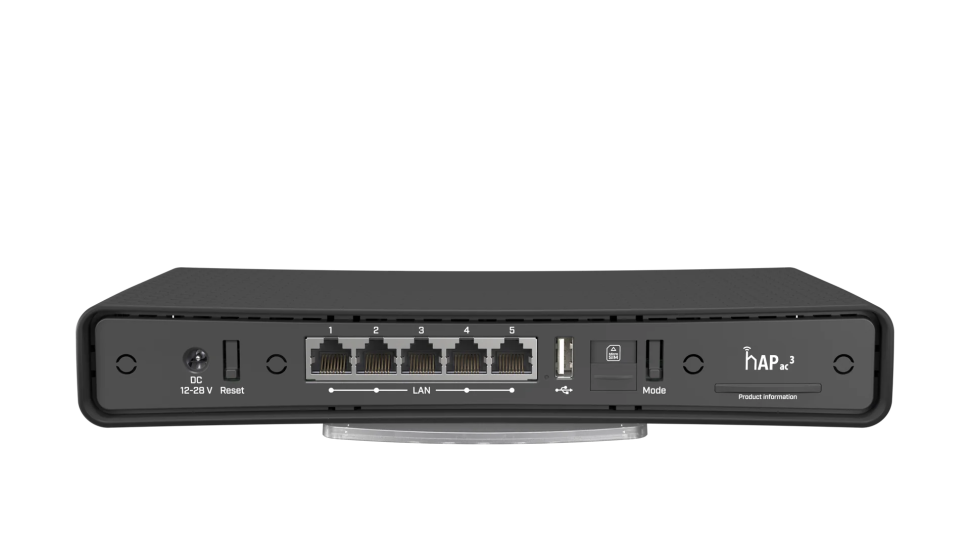

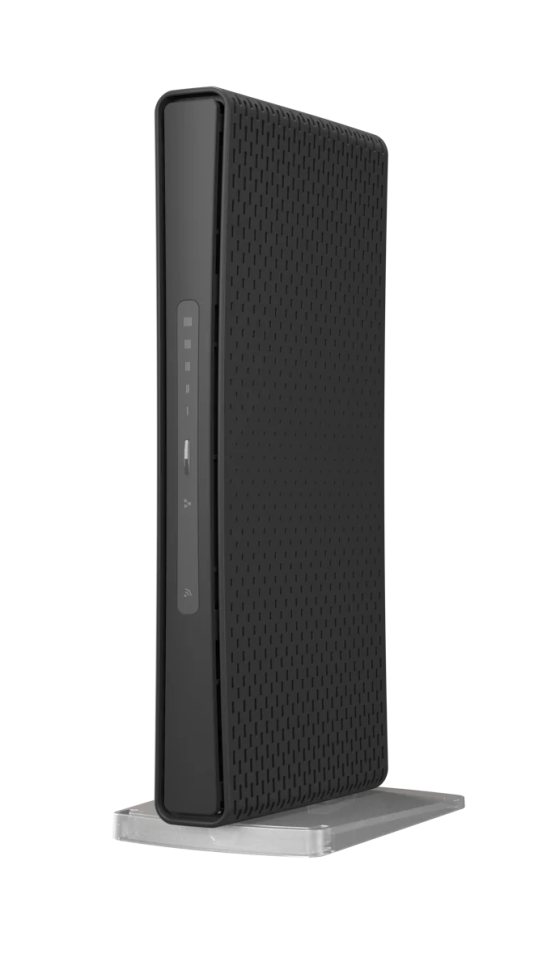

hAP ac³ LTE6 kit

Specifications

• Product codeRBD53GR-5HacD2HnD&R11e-LTE6
• Suggested price$219.00
• ArchitectureARM 32bit
• CPUIPQ-4019
• CPU core count4
• CPU nominal frequency716 MHz
• CPU Threads count4
• Switch chip modelIPQ-4019
• Dimensions251 x 129 x 39 mm
• RouterOS license4
• Operating SystemRouterOS
• Size of RAM256 MB
• Storage size16 MB
• Storage typeFLASH
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-30°C to 60°C

Powering

• Number of DC inputs1 (DC jack)
• DC jack input Voltage12-28 V
• Max power consumption20 W
• Max power consumption without attachments16 W
• Cooling typePassive

Mobile

• 2G CategoryClass12
• 2G bands2 (1900MHz)
  3 (1800MHz)
  5 (850MHz)
  8 (900MHz)

• 3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands1 (2100MHz)
  2 (1900MHz)
  5 (850MHz)
  8 (900MHz)

• LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
• LTE FDD bands1 (2100MHz)
  2 (1900MHz)
  3 (1800MHz)
  7 (2600MHz)
  8 (900 MHz)
  20 (800MHz)
  5 (850MHz)
  12 (700MHz)
  17 (700MHz)
  25 (1900MHz)
  26 (850MHz)

• LTE TDD bands38 (2600MHz)
  40 (2300MHz)
  39 (1900MHz)
  41n (2500MHz)

• TAC35666210

Wireless specifications

• Wireless 2.4 GHz Max data rate300 Mbit/s
• Wireless 2.4 GHz Number of chains2
• Wireless 2.4 GHz standards802.11b/g/n
• Antenna gain dBi for 2.4 GHz3
• Wireless 2.4 GHz chip modelIPQ-4019
• Wireless 2.4 GHz generationWi-Fi 4
• Wireless 5 GHz Max data rate867 Mbit/s
• Wireless 5 GHz Number of chains2
• Wireless 5 GHz standards802.11a/n/ac
• Antenna gain dBi for 5 GHz5.5
• Wireless 5 GHz chip modelIPQ-4019
• Wireless 5 GHz generationWi-Fi 5

Ethernet

• 10/100/1000 Ethernet ports5

Peripherals

• Number of SIM slots1 Modem (Micro SIM)
• MiniPCI-e slots1
• Number of USB ports1
• USB Power ResetYes
• USB slot typeUSB type A
• Max USB current (A)1

Other

• Mode buttonYes

Certification & Approvals

• CertificationCE, FCC, IC, EAC, ROHS
• IPIP20
