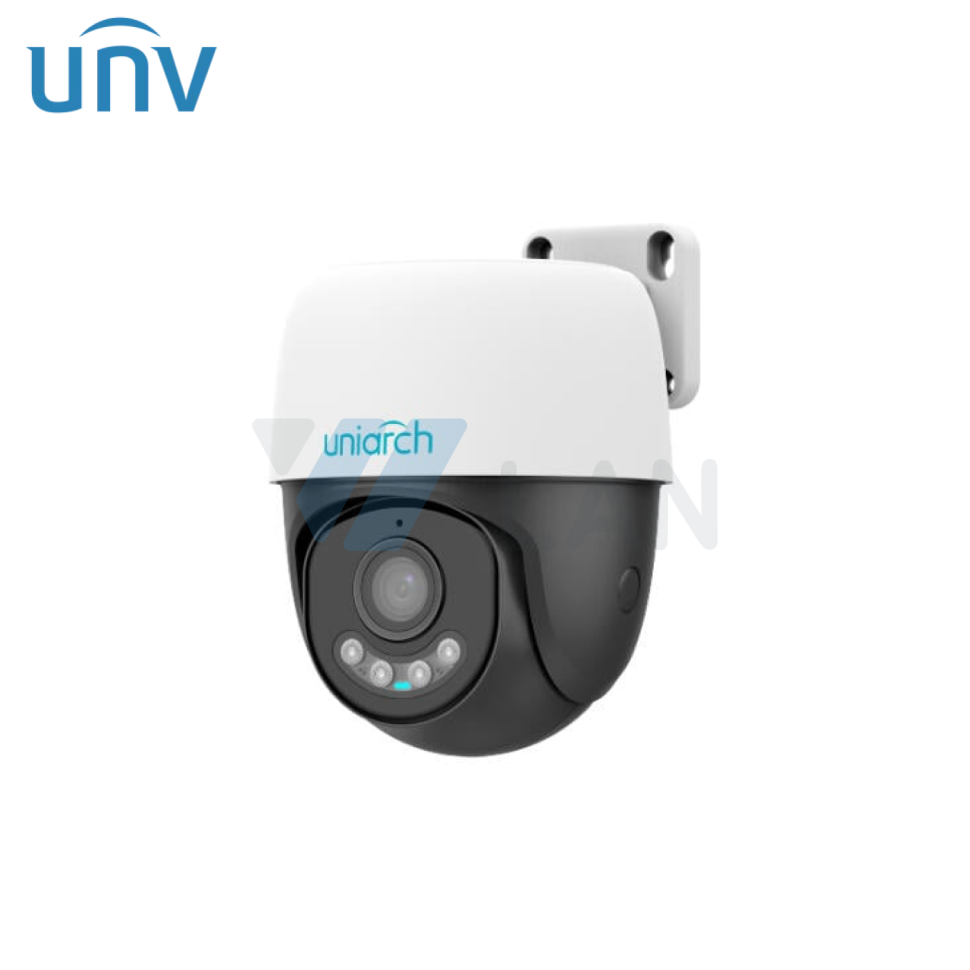

Uho-P2A-M3F4D

Camera Max Resolution 3 MP Sensor 1/3.0" CMOS Min. Illumination Colour: 0.005Lux (F1.6, AGC ON) 0 Lux with IR on Day/Night IR‑cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s S/N >52 dB WDR DWDR Lens Digital Zoom 4X Focal Length 4.0 mm Iris Type Fixed Iris F1.6 Field of View (H) 90.5° Field of View (V) 44.4° Field of View (D) 111.3° Lens Type Fixed DORI DORI Distance (Lens) 4.0mm DORI Distance (Detect) 73.5 (241.0ft) DORI Distance (Observe) 29.4 (96.4ft) DORI Distance (Recognize) 14.7 (48.2ft) DORI Distance (Identify) 7.3 (24.1ft) Illuminator Illumination Distance (IR) 30 m (98.4 ft) Illumination Distance (Warm Light) 10 m (32.8 ft) Wavelength 850 nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265,  H.265,  H.264 Frame Rate Main Stream: 3MP (2304*1296), Max 20fps; Sub Stream: 640*360, Max 20fps; Video Bit Rate 128 Kbps to 2048 Kbps U‑code Support OSD Up to 2 OSDs Privacy Mask Support (only NVR) KING Up to 8 areas Video Stream Dual Streams Image White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal, Flip Vertical, Flip Horizontal, 180° Dewarping N/A HLC N/A BLC N/A Defog Digital Defog Events Basic Detection Human Body Detection, Motion Detection, Audio Detection General Function IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication Intelligent Auto Tracking Support Audio Audio Compression G.711U, G.711A Audio Bitrate 64 Kbps Two‑way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 512 GB Network Storage ANR Network Wi‑Fi 2.4G Wi‑Fi (IEEE802.11b/g/n), built‑in antenna Protocols IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP Compatible Integration API Client Uniarch Client, Uniarch app Web Browser Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Wi‑Fi Wireless Standards IEEE802.11b/g/n Frequency Range 2.4 GHz to 2.4835 GHz Channel Bandwidth 20 MHz Support Modulation Mode 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT Wi‑Fi Security 64/128‑bit WEP,  WPA‑PSK/WPA2‑PSK Transmit Power 802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps Receive Sensitivity 802.11b: ‑90 dBm@11 Mbps (Typical)802.11g: ‑75 dBm@54 Mbps (Typical)802.11n: ‑74 dBm@150 Mbps (Typical) Transmission Rate 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps PTZ Pan Range 0° ~ 345° Pan Speed 1°/s ~ 40°/s Preset speed: 40°/s Tilt Range 0° ~ 90° Tilt Speed 1°/s ~ 30°/s Preset speed: 30°/s Number of Presets 20 Interface Audio I/O N/A Alarm I/O N/A Built‑in Mic Support Built‑in Speaker Support WIFI Support Network 1 × RJ45 10 M/100 M Base‑TX Ethernet Certification EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B RF FCC ID (FCC CFR 47 part15 C) CE NETWORK (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) Safety CE LVD (EN 62368-1) Environment CE-RoHS (2011/65 /EU; (EU)2015/863); WEEE (2012/19 /EU); Protection IP66 (IEC 60529) General Power DC 12V±25% Power Interface Ø5.5 mm coaxial power plug Dimensions Φ110mm*110mm*151mm (Φ4.3”x 4.3”x 6.0”) Weight 0.38kg (0.84lb) Working Environment ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) Storage Environment ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) Surge Protection 4 KV Reset Button Support LED Indicator 1, red/blue
