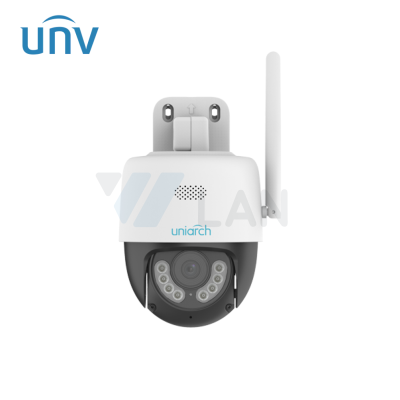

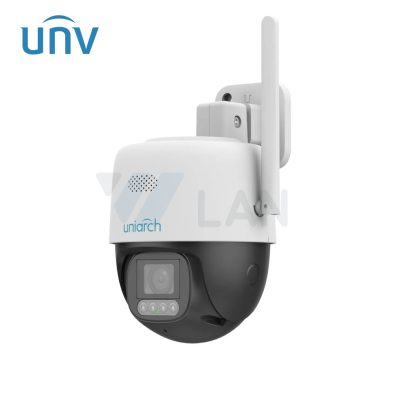

In stock
<table width="100%">
<tbody>
<tr>
<td class="thead" colspan="2">Camera</td>
</tr>
<tr>
<td>Max Resolution</td>
<td>3 MP</td>
</tr>
<tr>
<td>Sensor</td>
<td>1/3.0" CMOS</td>
</tr>
<tr>
<td>Min. Illumination</td>
<td>Colour: 0.005Lux (F1.6, AGC ON)
0 Lux with IR on</td>
</tr>
<tr>
<td>Day/Night</td>
<td>IR‑cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Shutter</td>
<td>Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>S/N</td>
<td>>52 dB</td>
</tr>
<tr>
<td>WDR</td>
<td>DWDR</td>
</tr>
<tr>
<td class="thead" colspan="2">Lens</td>
</tr>
<tr>
<td>Digital Zoom</td>
<td>4X</td>
</tr>
<tr>
<td>Focal Length</td>
<td>4.0 mm</td>
</tr>
<tr>
<td>Iris Type</td>
<td>Fixed</td>
</tr>
<tr>
<td>Iris</td>
<td>F1.6</td>
</tr>
<tr>
<td>Field of View (H)</td>
<td>90.5°</td>
</tr>
<tr>
<td>Field of View (V)</td>
<td>44.4°</td>
</tr>
<tr>
<td>Field of View (D)</td>
<td>111.3°</td>
</tr>
<tr>
<td>Lens Type</td>
<td>Fixed</td>
</tr>
<tr>
<td class="thead" colspan="2">DORI</td>
</tr>
<tr>
<td>DORI Distance (Lens)</td>
<td>4.0mm</td>
</tr>
<tr>
<td>DORI Distance (Detect)</td>
<td>73.5 (241.0ft)</td>
</tr>
<tr>
<td>DORI Distance (Observe)</td>
<td>29.4 (96.4ft)</td>
</tr>
<tr>
<td>DORI Distance (Recognize)</td>
<td>14.7 (48.2ft)</td>
</tr>
<tr>
<td>DORI Distance (Identify)</td>
<td>7.3 (24.1ft)</td>
</tr>
<tr>
<td class="thead" colspan="2">Illuminator</td>
</tr>
<tr>
<td>Illumination Distance (IR)</td>
<td>30 m (98.4 ft)</td>
</tr>
<tr>
<td>Illumination Distance (Warm Light)</td>
<td>10 m (32.8 ft)</td>
</tr>
<tr>
<td>Wavelength</td>
<td>850 nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td>Auto/Manual</td>
</tr>
<tr>
<td class="thead" colspan="2">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td>Ultra 265, H.265, H.264</td>
</tr>
<tr>
<td>Frame Rate</td>
<td>Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: 640*360, Max 20fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td>128 Kbps to 2048 Kbps</td>
</tr>
<tr>
<td>U‑code</td>
<td>Support</td>
</tr>
<tr>
<td>OSD</td>
<td>Up to 2 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td>Support (only NVR)</td>
</tr>
<tr>
<td>KING</td>
<td>Up to 8 areas</td>
</tr>
<tr>
<td>Video Stream</td>
<td>Dual Streams</td>
</tr>
<tr>
<td class="thead" colspan="2">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td>Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td>2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td>Support</td>
</tr>
<tr>
<td>Flip</td>
<td>Normal, Flip Vertical, Flip Horizontal, 180°</td>
</tr>
<tr>
<td>Dewarping</td>
<td>N/A</td>
</tr>
<tr>
<td>HLC</td>
<td>N/A</td>
</tr>
<tr>
<td>BLC</td>
<td>N/A</td>
</tr>
<tr>
<td>Defog</td>
<td>Digital Defog</td>
</tr>
<tr>
<td class="thead" colspan="2">Events</td>
</tr>
<tr>
<td>Basic Detection</td>
<td>Human Body Detection, Motion Detection, Audio Detection</td>
</tr>
<tr>
<td>General Function</td>
<td>IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication</td>
</tr>
<tr>
<td class="thead" colspan="2">Intelligent</td>
</tr>
<tr>
<td>Auto Tracking</td>
<td>Support</td>
</tr>
<tr>
<td class="thead" colspan="2">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td>G.711U, G.711A</td>
</tr>
<tr>
<td>Audio Bitrate</td>
<td>64 Kbps</td>
</tr>
<tr>
<td>Two‑way Audio</td>
<td>Support</td>
</tr>
<tr>
<td>Suppression</td>
<td>Support</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td>8 kHz</td>
</tr>
<tr>
<td class="thead" colspan="2">Storage</td>
</tr>
<tr>
<td>Edge Storage</td>
<td>Micro SD, up to 512 GB</td>
</tr>
<tr>
<td>Network Storage</td>
<td>ANR</td>
</tr>
<tr>
<td class="thead" colspan="2">Network</td>
</tr>
<tr>
<td>Wi‑Fi</td>
<td>2.4G Wi‑Fi (IEEE802.11b/g/n), built‑in antenna</td>
</tr>
<tr>
<td>Protocols</td>
<td>IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td>API</td>
</tr>
<tr>
<td>Client</td>
<td>Uniarch Client, Uniarch app</td>
</tr>
<tr>
<td>Web Browser</td>
<td>Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+</td>
</tr>
<tr>
<td class="thead" colspan="2">Wi‑Fi</td>
</tr>
<tr>
<td>Wireless Standards</td>
<td>IEEE802.11b/g/n</td>
</tr>
<tr>
<td>Frequency Range</td>
<td>2.4 GHz to 2.4835 GHz</td>
</tr>
<tr>
<td>Channel Bandwidth</td>
<td>20 MHz Support</td>
</tr>
<tr>
<td>Modulation Mode</td>
<td>802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT</td>
</tr>
<tr>
<td>Wi‑Fi Security</td>
<td>64/128‑bit WEP, WPA‑PSK/WPA2‑PSK</td>
</tr>
<tr>
<td>Transmit Power</td>
<td>802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps</td>
</tr>
<tr>
<td>Receive Sensitivity</td>
<td>802.11b: ‑90 dBm@11 Mbps (Typical)802.11g: ‑75 dBm@54 Mbps (Typical)802.11n: ‑74 dBm@150 Mbps (Typical)</td>
</tr>
<tr>
<td>Transmission Rate</td>
<td>802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps</td>
</tr>
<tr>
<td class="thead" colspan="2">PTZ</td>
</tr>
<tr>
<td>Pan Range</td>
<td>0° ~ 345°</td>
</tr>
<tr>
<td>Pan Speed</td>
<td>1°/s ~ 40°/s
Preset speed: 40°/s</td>
</tr>
<tr>
<td>Tilt Range</td>
<td>0° ~ 90°</td>
</tr>
<tr>
<td>Tilt Speed</td>
<td>1°/s ~ 30°/s
Preset speed: 30°/s</td>
</tr>
<tr>
<td>Number of Presets</td>
<td>20</td>
</tr>
<tr>
<td class="thead" colspan="2">Interface</td>
</tr>
<tr>
<td>Audio I/O</td>
<td>N/A</td>
</tr>
<tr>
<td>Alarm I/O</td>
<td>N/A</td>
</tr>
<tr>
<td>Built‑in Mic</td>
<td>Support</td>
</tr>
<tr>
<td>Built‑in Speaker</td>
<td>Support</td>
</tr>
<tr>
<td>WIFI</td>
<td>Support</td>
</tr>
<tr>
<td>Network</td>
<td>1 × RJ45 10 M/100 M Base‑TX Ethernet</td>
</tr>
<tr>
<td class="thead" colspan="2">Certification</td>
</tr>
<tr>
<td>EMC</td>
<td>CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B</td>
</tr>
<tr>
<td>RF</td>
<td>FCC ID (FCC CFR 47 part15 C)
CE NETWORK (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)</td>
</tr>
<tr>
<td>Safety</td>
<td>CE LVD (EN 62368-1)</td>
</tr>
<tr>
<td>Environment</td>
<td>CE-RoHS (2011/65 /EU; (EU)2015/863); WEEE (2012/19 /EU);</td>
</tr>
<tr>
<td>Protection</td>
<td>IP66 (IEC 60529)</td>
</tr>
<tr>
<td class="thead" colspan="2">General</td>
</tr>
<tr>
<td>Power</td>
<td>DC 12V±25%</td>
</tr>
<tr>
<td>Power Interface</td>
<td>Ø5.5 mm coaxial power plug</td>
</tr>
<tr>
<td>Dimensions</td>
<td>Φ110mm*110mm*151mm (Φ4.3”x 4.3”x 6.0”)</td>
</tr>
<tr>
<td>Weight</td>
<td>0.38kg (0.84lb)</td>
</tr>
<tr>
<td>Working Environment</td>
<td>‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing)</td>
</tr>
<tr>
<td>Storage Environment</td>
<td>‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing)</td>
</tr>
<tr>
<td>Surge Protection</td>
<td>4 KV</td>
</tr>
<tr>
<td>Reset Button</td>
<td>Support</td>
</tr>
<tr>
<td>LED Indicator</td>
<td>1, red/blue</td>
</tr>
</tbody>
</table>
